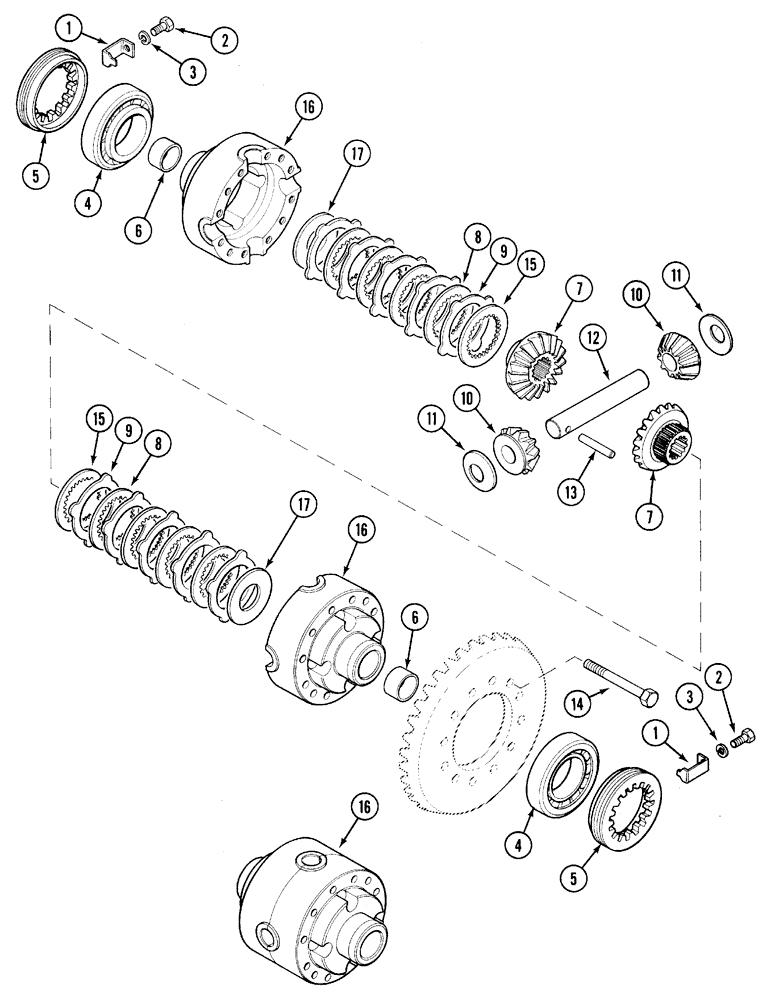

Запчасти Case IH 5120 (5-32) - MFD DIFFERENTIAL (05) - STEERING

1

1966153C1

LOCKING PLATE

BRACKET - lock

2шт.

2

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

4

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED

2шт.

5

1966559C1

NUT

RING, LOCKING

2шт.

6

1967625C1

BUSHING

- housing

2шт.

7

1349057C1

PINION

GEAR - side (709S2 Axle C7P/153 and after)

2шт.

7

1349057C1

PINION

GEAR - side (Prior to 709S2 Axle C7P/152)(Order Also Item 16)

2шт.

8

1966156C1

WASHER

PLATE - driven

8шт.

9

1966155C1

PLATE

- drive

10шт.

B506395

SET OF PARTS

GEAR SET - differential (Also includes Item 7), Includes: Ref. 10 - 12

1шт.

10

N14408

SUN GEAR

GEAR - pinion (Replaced By Gear Set B506395)

1шт.

11

K395075

THRUST WASHER

WASHER, THRUST

2шт.

12

K395087

SHAFT

PIN - differential pinions (Replaced By Gear Set B506395)

1шт.

13

K395086

PIN

- locking

1шт.

14

S300976

BOLT,M12 x 1.5 x 90mm

BOLT - hex, class 10.9, 12 mm x 90mm (If used)

12шт.

14

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm (If used)

12шт.

15

1966154C1

PLATE

- backing

2шт.

16

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY - differential (709S2 Axle C7P/153 and after)

1шт.

16

1349056C1

HOUSING

ASSEMBLY - differential (Prior to 709S2 Axle C7P/152)

1шт.

17

111647A1

BELLEVILLE WASHER

WASHER - belleville

2шт.
