(5-18) - STEERING CYLINDER, TWO WHEEL DRIVE

Запчасти Case IH 5120 (5-18) - STEERING CYLINDER, TWO WHEEL DRIVE (05) - STEERING

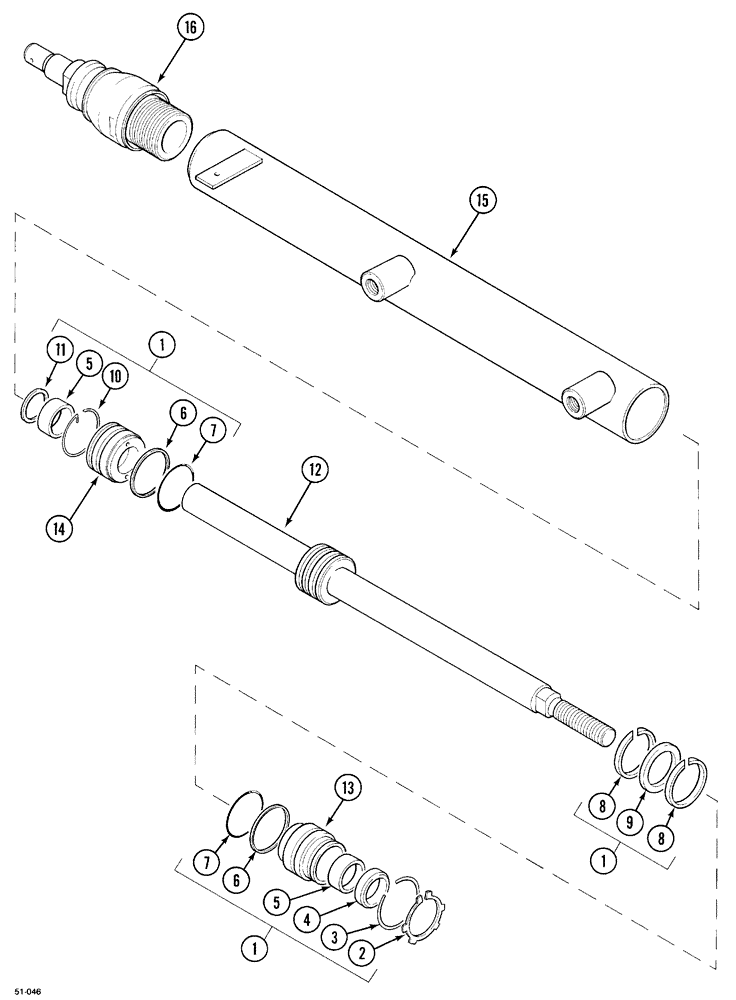

Схема запчастей Case IH 5120 - (5-18) - STEERING CYLINDER, TWO WHEEL DRIVE (05) - STEERING
15
13
5
9
10
11
4
7
1
16
6
7
14
8
8
1
5
3
12
1
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1531376C2

STEERING CYLINDER

CYLINDER - steering, Includes: Ref. 1 - 16

1шт.

1

1978392C2

SEAL KIT

KIT - seal, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

RING -

1шт.

3

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

5

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

6

NSS

NOT SOLD SEPARAT

RING - back-up

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING -

2шт.

8

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL -

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - pull in

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

12

1978393C1

PISTON ROD

ROD - piston

1шт.

13

1978394C2

GLAND

- outer

1шт.

14

1978395C1

GLAND

- inner

1шт.

15

1978396C2

HYD TUBE,55 mm ID, 65 mm OD, 600 mm Length

TUBE - cylinder

1шт.

16

1978397C1

BALL JOINT

BALL - joint

1шт.
