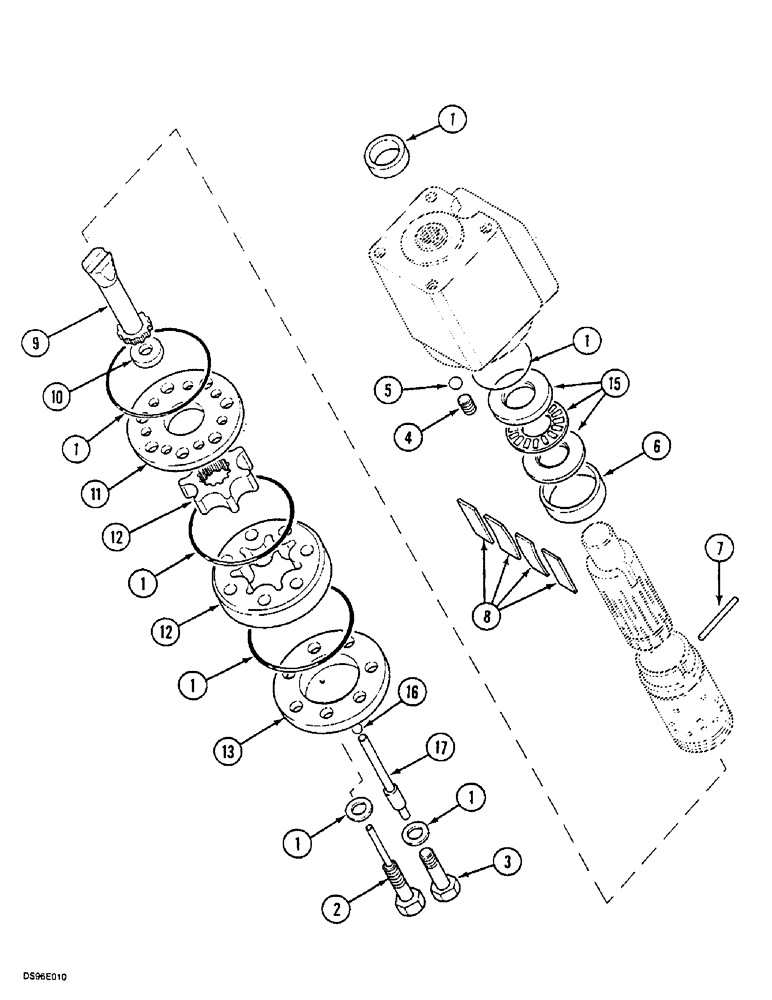

Запчасти Case IH 5120 (5-16) - STEERING HAND PUMP (05) - STEERING

1346098C1

VALVE, CONTROL

PUMP - steering, 160cc for MFD, Start Serial: JJF1004726

1шт.

1346098C1R

REMAN-STEERING VALVE

5120, 5220, Both CASE IH MAXXUM TRACTOR (NA Pump-Steering 160 cc for MFD , For Tractors Prior To JJF1004726, also order 1 of 87681199 and 1 of 1533599C1 from figure 5-11

1шт.

1346098C1C

CORE-STEERING VALVE

Return Number

1шт.

1346098C1

VALVE, CONTROL

PUMP - steering, 160cc for MFD, Serial Range: -JJF1004725

1шт.

For tractors prior to JJF1004726, order also 1 x 201-303 and 1 x 1533599C1 from figure 5-11

1шт.

1346098C1R

REMAN-STEERING VALVE

5120, 5220, Both CASE IH MAXXUM TRACTOR (NA Pump-Steering 160 cc for MFD , For Tractors Prior To JJF1004726, also order 1 of 87681199 and 1 of 1533599C1 from figure 5-11

1шт.

1346098C1C

CORE-STEERING VALVE

Return Number

1шт.

1346097C1

VALVE, CONTROL

PUMP - steering, 100cc, 2WD, Start Serial: JJF1004726

1шт.

1346097C1

VALVE, CONTROL

PUMP - steering, 100cc, 2WD, Includes: Ref. 1 - 17, Serial Range: -JJF1004725

1шт.

For tractors prior to JJF1004726, order also 1 x 201-303 and 1 x 1533599C1 from figure 5-11

1шт.

1

1500443C91

SEAL KIT

KIT - service

1шт.

2

3216709R1

SCREW

- hex

1шт.

2

1346247C1

SCREW,Hex, M8 x 1 x 46.50mm, W/ Pin

- with pin

1шт.

3

3216710R1

SCREW

BOLT - hex, 8 - 1.25 x 40 mm

6шт.

4

1272793C1

BUSHING

- threaded

1шт.

5

1272794C1

BALL

- check, 8.5 mm diameter

1шт.

6

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O-RING - sleeve

1шт.

7

1272796C1

CROSS PIN

- dowel, special

1шт.

8

N14219

SET OF PARTS

SPRING - centering

1шт.

9

1272797C1

SHAFT

- drive, pump

1шт.

10

3216707R1

SPACER

- cardan shaft (For 100cc Pump)

1шт.

10

3115862R1

SPACER

- cardan shaft (For 160cc Pump)

1шт.

11

1272803C1

PLATE

- pump

1шт.

12

3216708R1

ROTOR

GEAR - rotor (For 100cc Pump)

1шт.

12

3112280R91

GEAR

ROTOR - set (For 160cc Pump)

1шт.

13

3112273R1

COVER

- end

1шт.

15

1272808C1

NEEDLE BEARING

- needle bearing

1шт.

16

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, Class 24

2шт.

17

1971684C1

BUSHING

- with pin

2шт.
