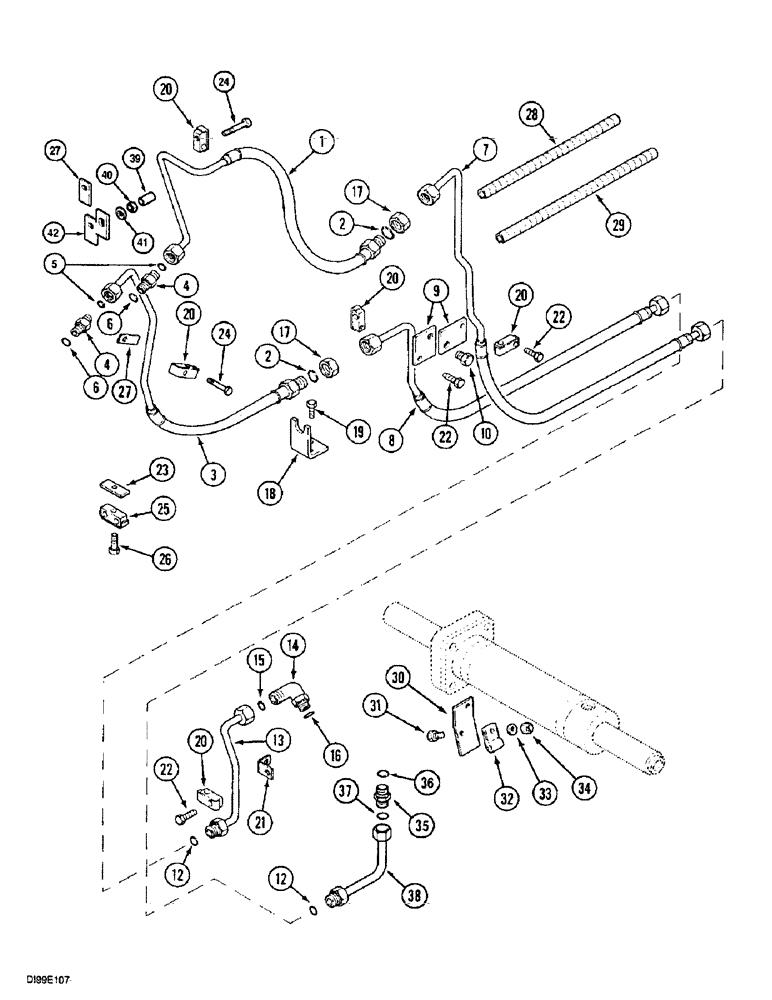

Запчасти Case IH 5120 (5-14) - STEERING PIPES, PUMP TO STEERING CYLINDER, MFD (05) - STEERING

1

259951A1

PIPE

- steering, right rear

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

T104239

HYD TUBE

- steering, rear left

1шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 5 and 6 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

1531818C1

PIPE

- front right

1шт.

8

1531788C1

PIPE

- front left

1шт.

9

T104010

BRACKET

- steering pipe, Serial Range: fitted-engine

1шт.

10

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

1531763C2

PIPE

- steering cylinder, left

1шт.

14

T100113

ELBOW

- 90 degree, Includes: Ref. 15 and 16

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

2шт.

18

T102814

SUPPORT

BRACKET - steering pipe, left

1шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

20

T101170

CLAMP

- pipe

6шт.

21

T102769

BRACKET

- steering pipe

1шт.

22

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4шт.

23

1531006C1

LARGE PLATE

BAR - pipe clamp

2шт.

24

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4шт.

25

T103148

CLAMP

- pipe, double

1шт.

26

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

27

1531006C1

LARGE PLATE

BAR - pipe clamp

2шт.

28

1531986C1

HOSE PROTECTION

HOSE - protection, 495 mm

1шт.

29

1531986C1

HOSE PROTECTION

HOSE - protection, 495 mm

1шт.

1530757C1

SET OF PARTS

KIT, Includes: Ref. 30 - 35

1шт.

30

1530746C1

SUPPORT

BRACKET - pipe

1шт.

31

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

32

714815R2

CLAMP

- pipe

1шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

34

825-1406

NUT,M6, Cl 8

1шт.

35

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Hyd., 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

1530743C1

PIPE

1шт.

39

259953A1

SPACER

- pipe retainer

1шт.

40

825-1406

NUT,M6, Cl 8

42 M6, Cl 8

1шт.

41

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

42

259952A1

SUPPORT

RETAINER - pipe

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
