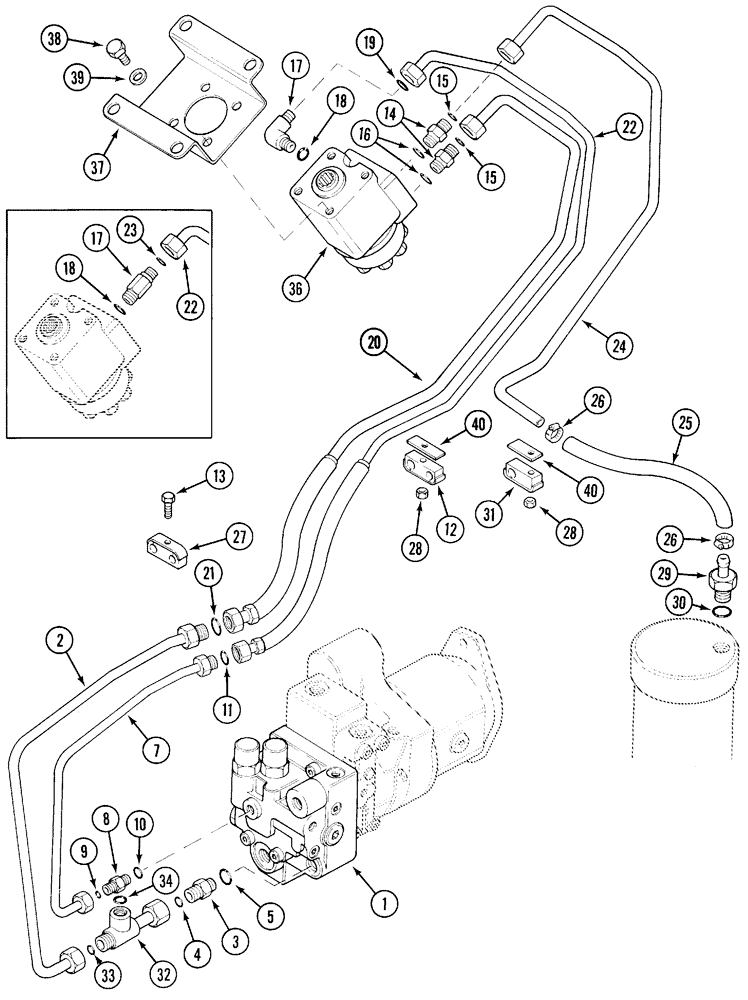

Запчасти Case IH 5120 (5-10) - STEERING PIPES, PUMP TO STEERING PUMP AND FILTER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE - assembly, compensator (See Page 8-15)
1шт.
2
1533212C2
PIPE
- pressure, Serial Range: compensator-pump
1шт.
3
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
CONNECTOR, HYD., , Includes Ref. 4 and 5 13/16"-16 ORFS x 3/4"-16 ORB
1шт.
4
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
7
1533213C1
PIPE
- signal pressure, Serial Range: compensator-pump
1шт.
8
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Straight, Incl Ref. 9 and 10 11/16"-16 ORFS x 9/16"-18 ORB
1шт.
9
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
10
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
11
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
12
T103148
CLAMP
- pipe, double
1шт.
13
614-6030
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd
1шт.
14
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
CONNECTOR, HYD., , Includes Ref. 15 and 16 13/16"-16 ORFS x 3/4"-16 ORB
2шт.
15
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
17
T104240
ADAPTER
ELBOW - steering pilot, Includes: Ref. 18, Serial Range: -JJF1002199
1шт.
18
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
17
201-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
- 90 deg, adj, 9/16-18 face x 7/16-20 boss, Includes: Ref. 18 and 19, Start Serial: JJF1002200
1шт.
18
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
19
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
20
T104235
HYD TUBE
- pressure, steering pump
1шт.
21
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
22
1531846C1
PIPE
- pilot, Serial Range: -JJF1002199
1шт.
22
1533599C1
HYD TUBE
- pilot, Start Serial: JJF1002200
1шт.
23
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
24
1534641C1
RETURN PIPE
PIPE - return to steering pump
1шт.
25
905897R1
HOSE
- 0.3 metres
1шт.
26
905894R1
COLLAR,16mm - 27mm, Worm Gear
CLAMP - pipe
2шт.
27
T103148
CLAMP
- pipe, double
1шт.
28
825-1406
NUT,M6, Cl 8
2шт.
29
1533587C1
CONNECTOR, ELEC
UNION - hose, Includes: Ref. 30
1шт.
30
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
31
T101170
CLAMP
- pipe
1шт.
32
1531073C1
CONNECTION
CONNECTOR - tee, Includes: Ref. 33 and 34
1шт.
33
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
34
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
36
REF
INSTRUCTION
PUMP - steering (See Page 5-17)
1шт.
37
1977977C2
PLATE
- steering pump mounting
1шт.
38
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
39
934281R1
WASHER,M10.5 ID x 20 OD x 2 Thk
- plain, 10.5 mm
4шт.
40
1531006C1
LARGE PLATE
BAR - pipe clamp
2шт.
