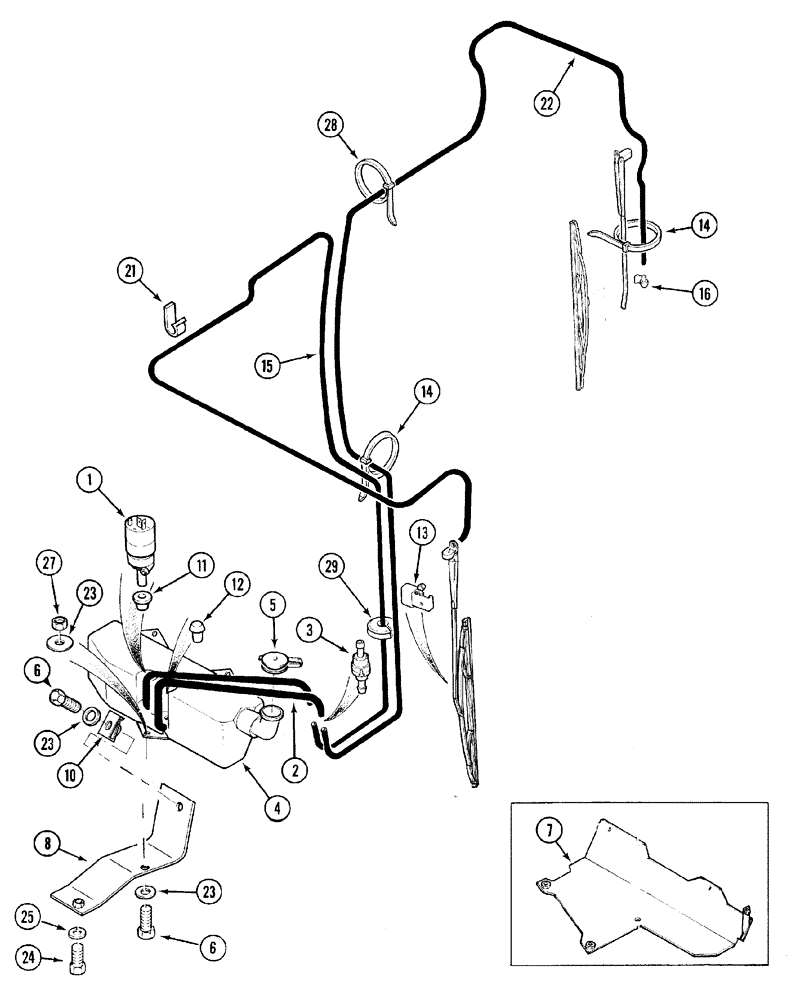

Запчасти Case IH 5120 (4-66) - CAB, WINDSHIELD AND REAR WINDOW WASHER (04) - ELECTRICAL SYSTEMS

1

1964696C1

MOTOR, ELECTRIC

MOTOR - pump

2шт.

2

REF

INSTRUCTION

TUBE - washer, (Cut 400 mm from 1968141CX)

2шт.

3

K307050

VALVE

- non-return

2шт.

4

1340164C1

RESERVOIR

- washer

1шт.

5

1971225C2

FILLER CAP

CAP - washer bottle

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.

7

1340177C3

HOLDER

BRACKET - washer bottle, Serial Range: -JJF1027362

1шт.

8

1530805C1

SUPPORT ASSY.

BRACKET - washer bottle, Start Serial: JJF1027363

1шт.

10

30380R1

SPRING NUT,M8, U

- U shape retainer, 8 mm, Serial Range: -JJF1027362

1шт.

11

1971265C1

GROMMET

- washer bottle

2шт.

12

1971266C1

PLUG

- washer bottle

1шт.

13

1968054C1

JET

NOZZLE - windshield washer

1шт.

1981765C1

BRACKET

- nozzle mounting not shown (Use with 1328486C1)

1шт.

14

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

15

REF

INSTRUCTION

TUBE - windshield rear, (Cut 5400 mm from 1968141CX)

1шт.

16

3129899R92

JET

NOZZLE - washer

1шт.

21

1983374C1

CLIP,ELECTRICAL

CLIP - J\Qadhesiveback, Serial Range: -JJF1031875

1шт.

22

REF

INSTRUCTION

TUBE - windshield, front, (Cut 4700 mm from 1968141CX)

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm, Start Serial: JJF1027363

4шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm, Serial Range: -JJF1027362

6шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm JJF1027363 to

1шт.

24

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, Serial Range: -JJF1027362

3шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm, Start Serial: JJF1027363

1шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm, Serial Range: -JJF1027362

3шт.

27

3223425R1

LOCK NUT

- lock, 8 mm, Serial Range: -JJF1027362

1шт.

27

3223425R1

LOCK NUT

- lock, 8 mm, Serial Range: -JJF1027362

3шт.

28

702093C1

CABLE TIE

STRAP - tie

4шт.

29

1964771C3

GROMMET

- washer hoses

1шт.

1968141CX

HOSE

- 5/32 ID x 50 foot (15240 mm) bulk roll

1шт.
