(4-58) - LIGHT ASSEMBLY, FLASHING, WARNING

Запчасти Case IH 5120 (4-58) - LIGHT ASSEMBLY, FLASHING, WARNING (04) - ELECTRICAL SYSTEMS

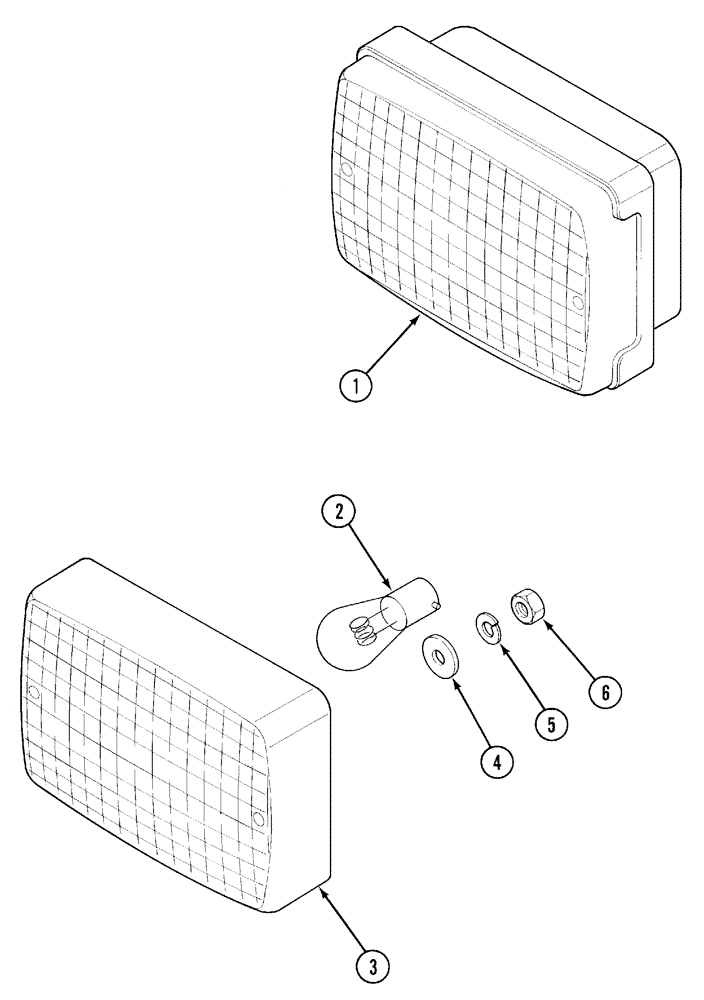

Схема запчастей Case IH 5120 - (4-58) - LIGHT ASSEMBLY, FLASHING, WARNING (04) - ELECTRICAL SYSTEMS
4
5
1
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983404C1

LIGHT ASSY.

LIGHT - flasher warning, Includes: Ref. 2 and 3

4шт.

2

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

3

91941C1

LENS

- amber

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

5

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

8шт.

6

825-1405

NUT,M5, Cl 8

8шт.
