Запчасти Case IH 5120 (4-54) - LIGHTS, REAR (04) - ELECTRICAL SYSTEMS

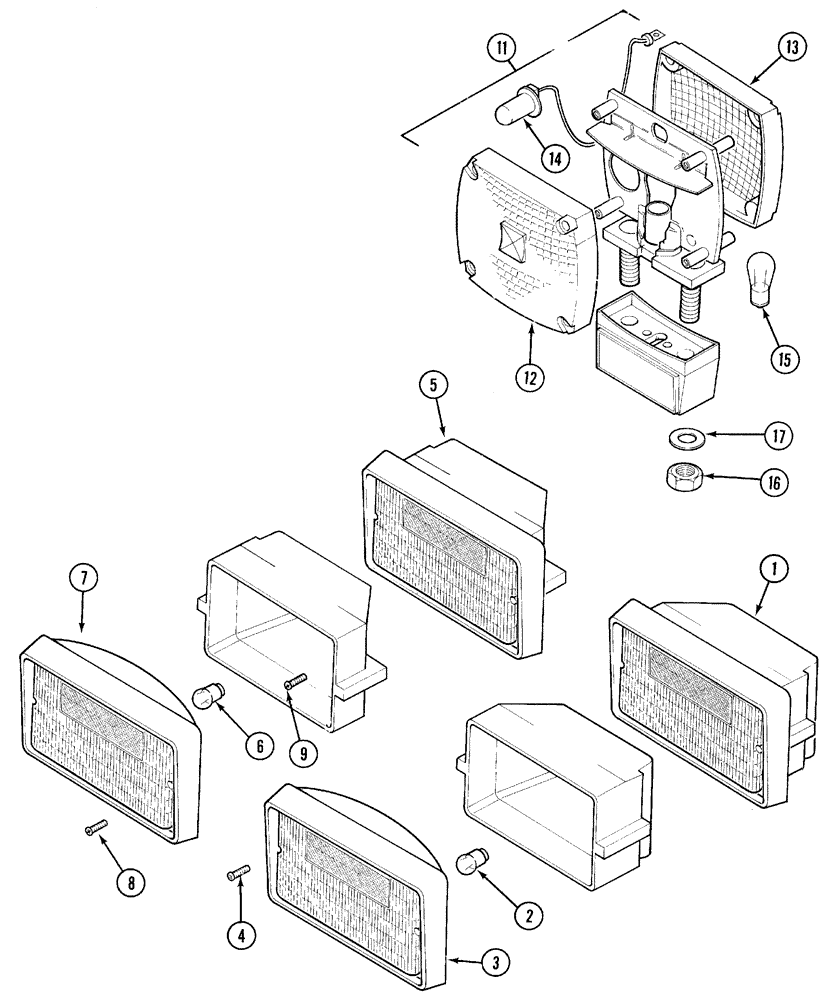

Схема запчастей Case IH 5120 - (4-54) - LIGHTS, REAR (04) - ELECTRICAL SYSTEMS
8
9
11
13
14
3
15
4
1
6
12
17
5
2
16
7

Артикул

Название

Примечание

Количество

1

1964803C1

LAMP

LIGHT - tail, right (Version with cab), Includes: Ref. 2 - 4

1шт.

2

71421

BULB,R5W, 12V, 5W

- lamp, No. 67

1шт.

3

1983268C1

BEZEL

- tail light, right

1шт.

4

1983269C1

SCREW

- tail light, bezel

2шт.

5

1964804C1

LAMP

LIGHT - tail, left (Version with cab), Includes: Ref. 6 - 8

1шт.

6

71421

BULB,R5W, 12V, 5W

- lamp, No. 67

1шт.

7

1983267C1

BEZEL

- tail light, left

1шт.

8

1983269C1

SCREW

- tail light, bezel

2шт.

9

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

4шт.

11

1964620C1

LAMP

LIGHT - assembly, flasher/tail (Version without cab), Includes: Ref. 12 - 15

2шт.

12

A187628

LENS

- red/yellow

1шт.

13

A187627

LENS

- yellow

1шт.

14

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

15

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

16

425-105

NUT,5/16"-18, G5

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

4шт.

Выбрано товаров: 16
