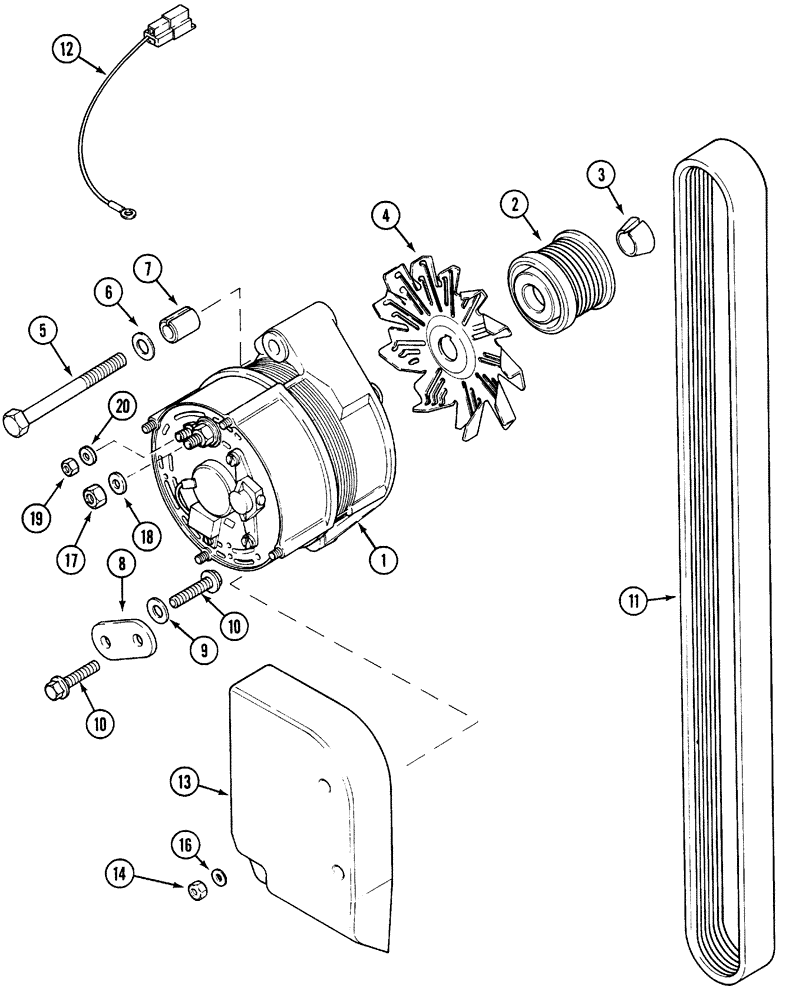

Запчасти Case IH 5120 (4-46) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - (See Figures 4-48,4-50)

1шт.

2

J908560

PULLEY

- alternator drive

1шт.

3

J908563

RETAINER

- alternator pulley

1шт.

4

221425R1

FAN

- alternator

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

J902469

SPACER

- alternator mounting

1шт.

8

J903089

SUPPORT

BRACE - alternator mounting

1шт.

9

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

11

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Fan 3.56 mm W x 1498.60 mm L, 8 Ribs

1шт.

12

1964625C1

CABLE

HARNESS - adapter, alternator

1шт.

13

1531982C1

PROTECTOR

SHIELD - alternator

1шт.

14

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

3шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

3шт.

17

825-1408

NUT,M8, Cl 8

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

1шт.

19

825-1405

NUT,M5, Cl 8

1шт.

20

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.
