(4-44) - STARTING MOTOR, BOSCH

Запчасти Case IH 5120 (4-44) - STARTING MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

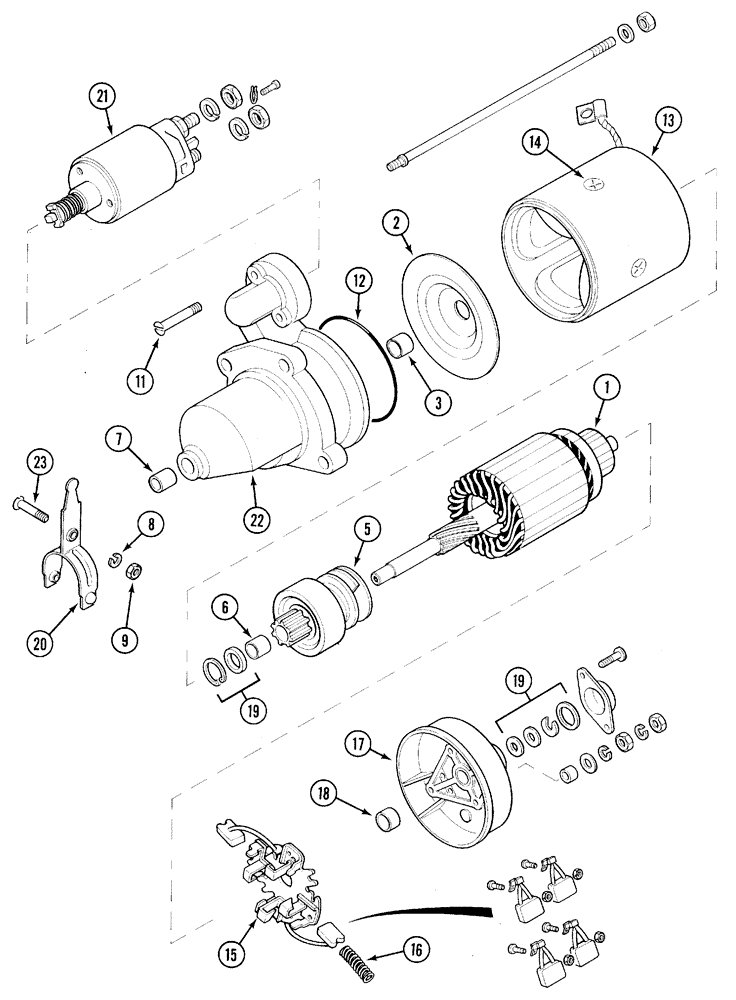

Схема запчастей Case IH 5120 - (4-44) - STARTING MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS
3
12
2
19
18
8
20
21
11
9
6
17
22
13
7
1
23
14
15
5
19
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

114800A1

STARTING MOTOR

MOTOR - starting, Includes: Ref. 1 - 23, P/N 1964899C1 and K965137

1шт.

114800A1R

REMAN-STARTER

5120 and 5220 MAxxum Tractors, N.A. Only

1шт.

114800A1C

CORE-STARTER

Return Number, N.A. Only

1шт.

1

1964896C1

ARMATURE

-

1шт.

2

A186233

HOUSING

BEARING - plate

1шт.

3

3079432R1

BUSHING

- clutch

1шт.

5

A187777

DRIVE

CLUTCH - over running

1шт.

6

3079254R1

BUSHING

- clutch

1шт.

7

K260705

BUSHING

-

1шт.

8

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw

1шт.

9

691265C1

NUT

- hex, special

1шт.

11

A186236

SCREW,Torx, M5 x 45mm

- flat head, special

1шт.

12

A186237

RETAINER

RING - bearing plate

1шт.

13

3079551R91

COIL

- field

1шт.

14

3079552R1

BOLT,Flat

SCREW - field coil

1шт.

15

3079553R1

HOLDER

- brush

1шт.

16

K965143

SPRING

- compression

1шт.

17

K965144

BRACKET

- commutator end

1шт.

18

K965145

BUSHING

- holder

1шт.

19

3079555R91

PACKAGE

KIT - motor repair

1шт.

20

1964678C1

LEVER

- fork

1шт.

21

1964904C1

SOLENOID SWITCH

SWITCH - selenoid

1шт.

22

1964905C1

PROTECTOR

SHIELD - drive end

1шт.

23

3079430R1

BOLT,Flat

SCREW - fork pivot

1шт.

1964899C1

BUSHING

- (Not illustrated)

1шт.

K965137

NUT

- hex (Not illustrated)

1шт.
