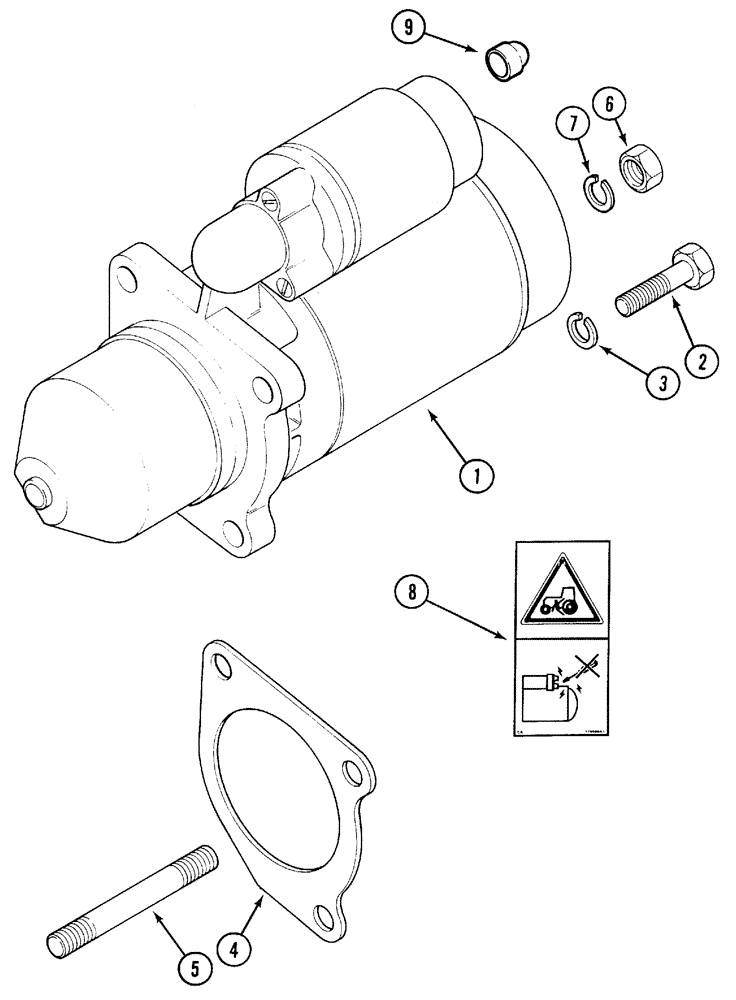

Запчасти Case IH 5120 (4-42) - STARTING MOTOR AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

MOTOR - starting (See Figure 4-44)

1шт.

2

30976R1

12 PT SCREW,M10 x 40mm, Cl 12.9

- flanged, 10 mm x 40mm

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

L112209

GASKET,0.79mm Thk

- starting motor

1шт.

5

T104577

STUD

- 10 mm x 110mm

1шт.

6

825-1410

NUT,M10, Cl 8

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death (English)

1шт.

8

142002A1

DECAL

- warning, starter motor (Francais)

1шт.

9

3221520R1

CAP

PLUG - cap, 10 mm

1шт.
