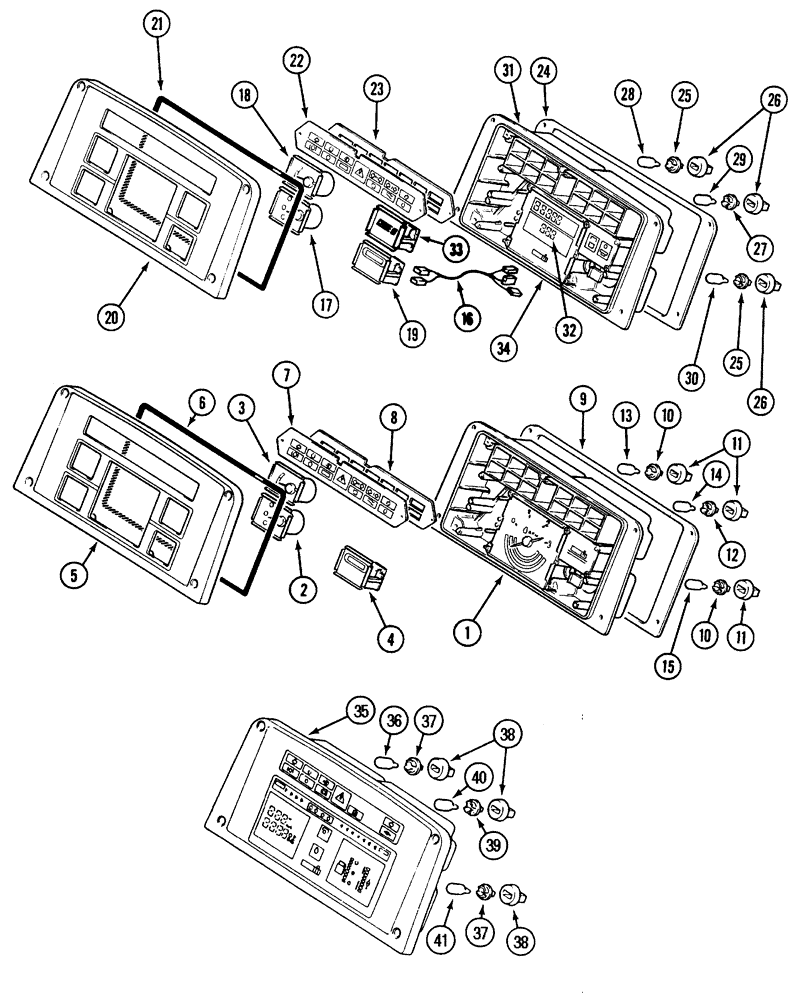

Запчасти Case IH 5120 (4-34) - INSTRUMENT CLUSTER, STANDARD (04) - ELECTRICAL SYSTEMS

1

1983208C3

PANEL, INSTRUMENTS

CLUSTER - instrument, standard, Includes: Ref. 2 - 15

1шт.

2

1983312C1

FUEL GAUGE

GAUGE - fuel

1шт.

3

1983311C2

INDICATOR

GUAGE - temperature

1шт.

4

193661A1

HOURMETER

GAUGE - hourmeter (See item 16 for - JJF1045100)

1шт.

5

1964871C1

BEZEL

- front analog

1шт.

6

1964872C1

O-RING

- front bezel

1шт.

7

1983314C1

SYMBOLS

LENS - warning light

1шт.

8

1964874C1

GASKET

- lens

1шт.

9

1964875C1

GASKET

- lens

1шт.

10

1964876C1

HOLDER

- bulb, Black

16шт.

11

1964877C1

BOOT

- bulb holder

17шт.

12

1983316C1

DIODE ELEMENT

HOLDER - warning lamp

1шт.

13

W10478

LAMP

BULB - lamp, No. 194

12шт.

14

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

15

3221006R1

BULB,W10/3, 12V, 3W

LAMP - 12v/3w

4шт.

16

190331A1

HARNESS

- hourmeter adapter (Non-Cab tractors, Serial Range: -JJF1045100

1шт.

16

190331A1

HARNESS

- hourmeter adapter (Cab tractors, Serial Range: -JJF1045844

1шт.

1983209C2

PANEL, INSTRUMENTS

CLUSTER - instrument, De-Luxe, Tractors w/o Cab, Includes: Ref. 17 - 30

1шт.

143182A2R

REMAN-INSTR CLUSTER

5120, 5220, Both CASE IH MAXXUM TRACTOR, CLUSTER - instrument, De-Luxe, Tractors w/o Cab, Reman for New PN 1983209C2

1шт.

143182A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

17

1983312C1

FUEL GAUGE

GAUGE - fuel, deluxe, non cab

1шт.

18

1983311C2

INDICATOR

GAUGE - temperature, deluxe, non cab

1шт.

19

188602A1

HOURMETER

GAUGE - hourmeter (Order also 190331A1), deluxe, non cab

1шт.

20

1983315C1

BEZEL

- front, deluxe, non cab

1шт.

20

143182A2R

REMAN-INSTR CLUSTER

5120, 5220, Both CASE IH MAXXUM TRACTOR, front, deluxe, non cab, Reman for New PN 1983315C1

1шт.

20

143182A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

21

1964872C1

O-RING

- front bezel, deluxe, non cab

1шт.

22

1983314C1

SYMBOLS

LENS - warning light , deluxe, non cab

1шт.

23

1964874C1

GASKET

- lens, deluxe, non cab

1шт.

24

1964875C1

GASKET

- lens, deluxe, non cab

1шт.

25

1964876C1

HOLDER

- bulb, Black, deluxe, non cab

16шт.

27

1983316C1

DIODE ELEMENT

HOLDER - warning lamp (Use with item 29), deluxe, non cab

1шт.

28

W10478

LAMP

BULB - lamp, No. 194, No. 194, deluxe, non cab

12шт.

29

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, deluxe, non cab

1шт.

30

NSS

NOT SOLD SEPARAT

BULB - lamp , deluxe, non cab

4шт.

1987477C1

HARNESS

CABLE - accessory feed, Not shown, deluxe, non cab, Serial Range: -JJF1015045

1шт.
