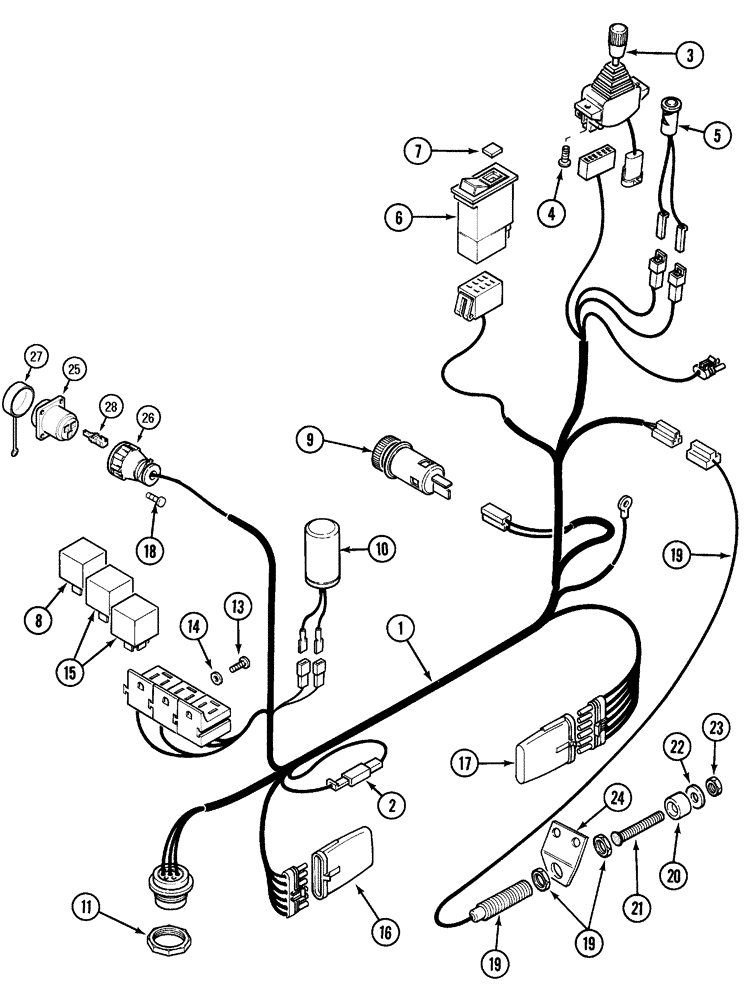

Запчасти Case IH 5120 (4-26) - ELECTRICAL HARNESS, CONTROL CONSOLE AND CONNECTIONS JJF1030000 AND AFTER (04) - ELECTRICAL SYSTEMS

1

122491A2

HARNESS

- console, Includes: Ref. 2

1шт.

2

548239R2

RECTIFIER

DIODE - nonlocking, 2-31/64 inch long

1шт.

3

1983239C7

SWITCH

- 5 position, hitch enable

1шт.

4

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- panhead, Phillips, 5 - 0.8 x 16 mm

2шт.

5

1983234C1

LIGHT, WARNING

LIGHT - amber indicator, hitch

1шт.

6

1983282C1

DIFF LOCK SWITCH

SWITCH - rocker, differential lock

1шт.

7

1983274C1

SYMBOLS

LENS - differential lock

1шт.

8

1987409C1

RELAY

- electrical

1шт.

9

1964943C1

CIGAR LIGHTER

LIGHTER - cigar

1шт.

10

3125984R2

FLASHER UNIT

FLASHER - flasher, park brake

1шт.

11

225347C1

NUT

- ITT connector

1шт.

12

122498A1

CABLE ASSY.

HARNESS - cigar lighter

1шт.

13

30388R1

SELF-TAP SCREW,Pan Hd, M4.8 x 9.5

- 4.8 mm x 8.5mm

2шт.

14

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

15

1964773C1

CIGAR LIGHTER

LIGHTER ASSEMBLY - cigar, 12 volt

2шт.

16

131734A1

DIODE

RECTIFIER - diode

1шт.

17

131735A1

DIODE

RECTIFIER - diode

1шт.

18

151-511

RIVET,Pop, 1/8" x .337"

- aluminium, 1/8 inch

4шт.

19

107220A1

SENSOR

HARNESS - 4th range switch

1шт.

20

140699A1

FITTING

MAGNET - reed switch

2шт.

21

140700A2

SCREW,Phil Flat Hd, Csk, M4 x 40mm, Brass

- 4 mm x 40mm

1шт.

22

934599R1

WASHER,M5.3 x 15 x 1.6

2шт.

23

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

1шт.

24

1999906C2

SUPPORT ASSY.

BRACKET - mounting

1шт.

25

225164C1

ELEC CONNECTOR

CONNECTOR - auxiliary power

1шт.

26

225153C1

CONTACT HOUSING

RECEPTACLE - auxiliary power connector

1шт.

27

225162C1

PLUG

CAP - implement harness

1шт.

28

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

TERMINAL - wire, 1 to 2 mm

3шт.
