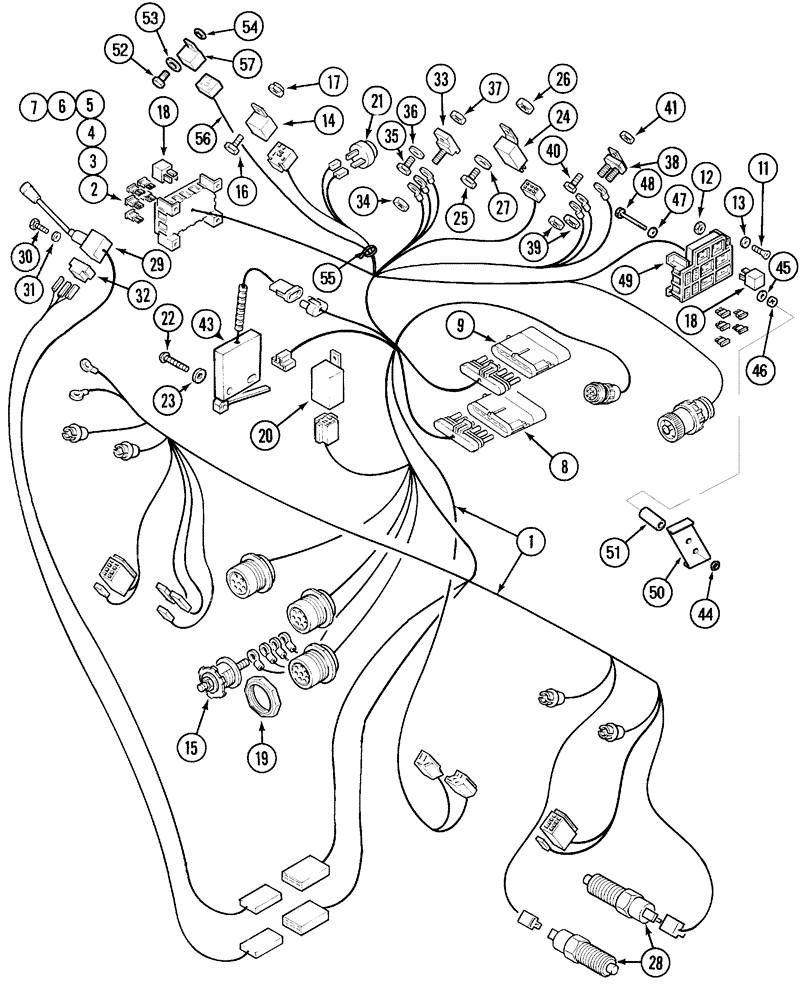

Запчасти Case IH 5120 (4-20) - ELECTRICAL HARNESS, INSTRUMENT PANEL AND CONNECTIONS, JJF1030000 AND AFTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
231487A2
HARNESS
- instrument panel, Start Serial: JJF1050700
1шт.
1
122487A1
HARNESS
- instrument panel, Serial Range: JJF1030000-JJF1050699
1шт.
2
A149798
FUSE
- tan, 5 ampere
6шт.
3
A149799
FUSE
- brown, 7-1/2 ampere
5шт.
4
A149800
FUSE,10 Amp
- red, 10 ampere
6шт.
5
A149801
FUSE,Lt Blue, 15 Amp
- light blue, 15 ampere
10шт.
5
137117A1
FUSE
- circuit breaker, 15amp
1шт.
6
137117A1
FUSE
- circuit breaker, 15amp
1шт.
7
A149804
FUSE
- light green, 30 ampere
3шт.
8
131737A1
DIODE
RECTIFIER - diode
1шт.
9
131736A1
DIODE
RECTIFIER - diode
1шт.
11
905973R1
SCREW,M3
- pan head, 3 x 10 mm, Serial Range: -JJF1046094
8шт.
11
175993A1
RIVET
- relay block, Start Serial: JJF1046095
8шт.
12
825-1403
NUT,M3, Cl 8
- hex, 3 mm - 0.5
8шт.
13
895-11003
WASHER,3.2mm ID x 7mm OD x 0.5mm Thk
Flat (3.2 x 7 x 0.5 mm) M3, Serial Range: -JJF1046094
8шт.
14
1502351C1
RELAY
- headlamp dip, 12 volt
1шт.
15
A187523
JUNCTION BLOCK
CONNECTOR - junction
1шт.
16
627-6014
BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1 x 14 mm
1шт.
17
934305R1
THIN NUT,M6 x 1, Thin
NUT - hex, 6 mm - 1 Class 10
1шт.
18
1983394C1
RELAY
- electrical
1шт.
18
1987409C1
RELAY
- electrical
1шт.
19
225347C1
NUT
- ITT connector
3шт.
20
1987452C1
RELAY
- safety start, 12 volt, 70 amp
1шт.
21
1983529C1
BUZZER
- alarm, pulse type
1шт.
22
840-1312
SCREW,Pan, M3 x 121mm, Cl 4.8
- panhead, Phillips, 3 - 0.5 x 12 mm
2шт.
23
895-11003
WASHER,3.2mm ID x 7mm OD x 0.5mm Thk
Flat (3.2 x 7 x 0.5 mm) M3
2шт.
24
92389C2
FLASHER UNIT
FLASHER - hazard
1шт.
25
614-5012
BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd
- hex, full threads, 5 - 0.8 x 12 mm
1шт.
26
934306R1
LOCK NUT,M5 x .8, Thin
NUT, LOCK, M5 x .8, Thin
1шт.
27
934044R1
WASHER,M5.3 ID x 10 OD x 1 Thk
- flat, 5 mm
1шт.
28
115206A1
LIMIT SWITCH
SWITCH - plunger/reed, clutch, Parrallel terminals
2шт.
29
123656A1
SWITCH ASSY
SWITCH - assembly,flasher/horn lever
1шт.
30
614-4008
BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd
- hex, full threads, 4 - 0.7 x 8 mm
2шт.
31
495-31017
WASHER,#8
- flat, 11/64 x 13/32 x 3/64 inch
2шт.
32
REF
INSTRUCTION
SWITCH - forward/neutral/reverse shuttle (See Figure 6-58)
1шт.
33
245539C1
CONNECTION
BLOCK - junction
1шт.
34
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
1шт.
35
614-5025
BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 5 - 0.8 x 25 mm
1шт.
36
934599R1
WASHER,M5.3 x 15 x 1.6
2шт.
37
934306R1
LOCK NUT,M5 x .8, Thin
NUT, LOCK, M5 x .8, Thin
1шт.
38
403069R1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30 ampere
1шт.
39
825-1405
NUT,M5, Cl 8
2шт.
40
627-6014
BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1 x 14 mm
1шт.
41
934305R1
THIN NUT,M6 x 1, Thin
NUT - hex, 6 mm - 1 Class 10
1шт.
43
92397C1
SWITCH
- clutch pedal
1шт.
234713A1
PACKAGE, REPAIR
KIT - conector block mounting, Includes: Ref. 44 - 51
1шт.
45
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
46
829-1306
NUT,M6, Cl 10
- hex, 6 mm - 1.0
2шт.
47
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
48
614-6040
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8, Full Thd
2шт.
49
225342C2
BOX, FUSE
BLOCK - plug, relay protection, 4 Relay Ports, 16 Fuse Ports
1шт.
50
234714A1
SUPPORT
BRACKET - block mounting
2шт.
51
234715A1
SPACER
- block mounting
1шт.
232800A1
KIT
- clutch switch, Includes: Ref. 52 - 57
1шт.
52
614-5020
BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd
- hex, full threads, 5 - 0.8 x 20 mm
1шт.
54
934306R1
LOCK NUT,M5 x .8, Thin
NUT, LOCK, M5 x .8, Thin
1шт.
55
3148767R2
COLLAR CLAMP
STRAP - cable
1шт.
56
226259A1
HARNESS
- clutch switch adapter
1шт.
57
1983394C2
RELAY
- electrical, 30 amp, Power Shift
1шт.
Выбрано товаров: 61
