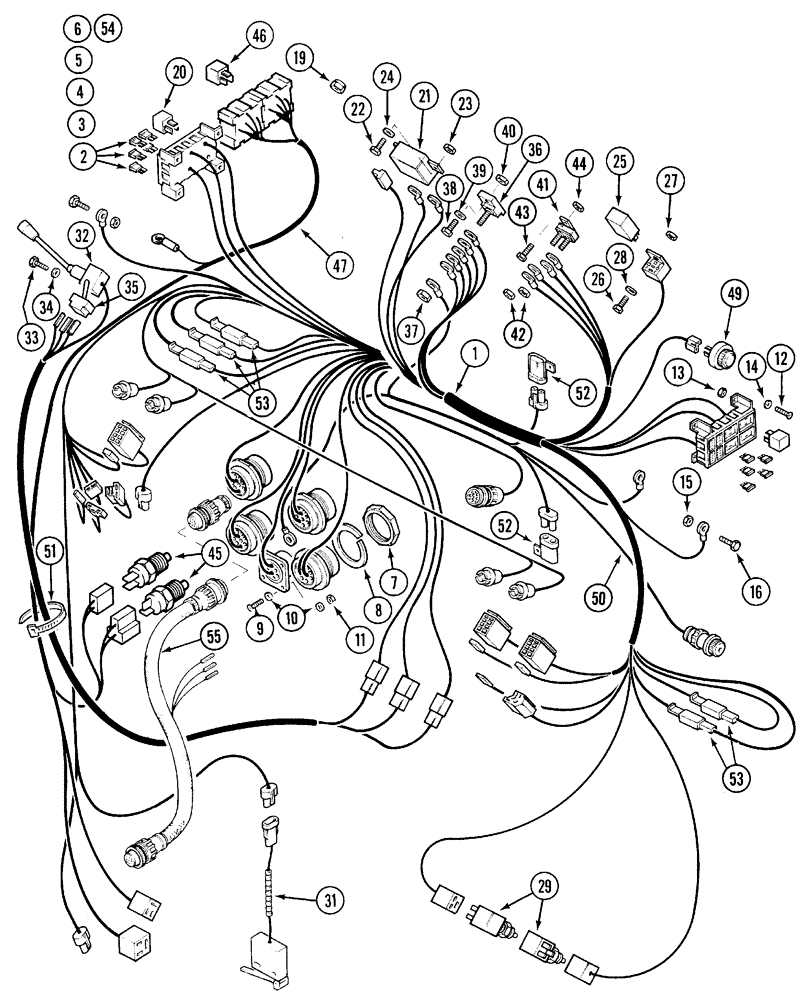

Запчасти Case IH 5120 (4-16) - ELECTRICAL HARNESS, INSTRUMENT PANEL AND CONNECTIONS UP TO JJF1029999 (04) - ELECTRICAL SYSTEMS

1

1546486C1

HARNESS

- instrument panel, Powershift, Serial Range: JJF1024792-JJF1029999

1шт.

1

1987571C1

HARNESS

- instrument panel, Powershift, Serial Range: JJF1015046-JJF1024791

1шт.

1

1546487C1

HARNESS

- instrument panel, Synchro Shift, Serial Range: JJF1024792-JJF1029999

1шт.

1

1987572C1

HARNESS

- instrument panel, Synchro Shift, Serial Range: JJF1015046-JJF1024791

1шт.

1

1987550C1

HARNESS

- instrument panel, All versions, Serial Range: -JJF1015045

1шт.

2

A149798

FUSE

- tan, 5 ampere

8шт.

3

A149799

FUSE

- brown, 7-1/2 ampere

5шт.

4

A149800

FUSE,10 Amp

- red, 10 ampere

5шт.

5

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

10шт.

6

A149804

FUSE

- light green, 30 ampere

2шт.

7

225347C1

NUT

- ITT connector

4шт.

9

30495R1

SCREW,Cross Pan Hd, M3 x 12

- pan head, 3 mm x 12mm

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Flat (3.2 x 7 x 0.5 mm) M3

8шт.

11

825-1403

NUT,M3, Cl 8

- hex, 3 mm - 0.5

4шт.

12

905973R1

SCREW,M3

- pan head, 3 x 10 mm

8шт.

13

825-1403

NUT,M3, Cl 8

- hex, 3 mm - 0.5

8шт.

14

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Flat (3.2 x 7 x 0.5 mm) M3

8шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0

2шт.

16

614-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 8 mm

2шт.

19

934305R1

THIN NUT,M6 x 1, Thin

NUT - hex, 6 mm - 1 Class 10

1шт.

20

1983394C1

RELAY

- electrical

1шт.

20

1502351C1

RELAY

- headlamp dip, 12 volt, Serial Range: -JJF1017718

1шт.

20

1987409C1

RELAY

- electrical

1шт.

21

1546541C1

RELAY

- safety start, 12 volt, 70 amp (replaces 1987452C1)

1шт.

22

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 5 - 0.8 x 20 mm

1шт.

23

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

92389C2

FLASHER UNIT

FLASHER - hazard, 7 Prong (If Equipped)

1шт.

25

5154278

FLASHER UNIT

FLASHER - hazard, 6 Prong with Mounting Bracket (If Equipped)

1шт.

26

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 5 - 0.8 x 12 mm

1шт.

27

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

28

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

- flat, 5 mm

1шт.

29

1964885C4

SWITCH

SWITCH - plunger, brake

2шт.

31

92397C1

SWITCH

- clutch pedal, Version with Power Shift without creep

1шт.

32

1534417C2

FLASHER SWITCH

SWITCH - flasher/horn, Start Serial: JJF1017719

1шт.

32

221352A1

FLASHER SWITCH

SWITCH - warn/dip/horn, Serial Range: -JJF1017718

1шт.

33

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 8 mm

2шт.

34

495-31017

WASHER,#8

- flat, 11/64 x 13/32 x 3/64 inch

2шт.

35

REF

INSTRUCTION

SWITCH - forward/reverse shuttle (See Figures 6-54, 6-56)

1шт.

232800A1

KIT

- clutch switch (See Figure 4-22)

1шт.

36

245539C1

CONNECTION

BLOCK - junction

1шт.

37

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

38

614-5025

BOLT,Hex, M5 x 0.8 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 5 - 0.8 x 25 mm

1шт.

39

934599R1

WASHER,M5.3 x 15 x 1.6

2шт.

40

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

41

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

1шт.

42

825-1405

NUT,M5, Cl 8

2шт.

43

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1 x 14 mm

1шт.

44

934305R1

THIN NUT,M6 x 1, Thin

NUT - hex, 6 mm - 1 Class 10

1шт.

138421A1

KIT

- clutch switch adapter, Includes: Ref. 45 - 47

1шт.

45

115206A1

LIMIT SWITCH

SWITCH - plunger/reed, clutch, Parrallel terminals

1шт.

45

115205A1

LIMIT SWITCH

SWITCH - plunger/reed, clutch

1шт.

46

1987409C1

RELAY

- electrical

2шт.

47

136032A2

HARNESS

- adapter

1шт.

49

1983529C1

BUZZER

- alarm, pulse type

1шт.

50

1983272C3

HARNESS

CABLE - assembly, implement power

1шт.

51

3402979R2

BAND

STRAP - cable tie

1шт.

52

225165C1

ELEC CONNECTOR

CONNECTOR - electrical, type GQ

2шт.

53

548239R2

RECTIFIER

DIODE - nonlocking, 2-31/64 inch long

5шт.

54

A187975

FUSE

- blade type, 1 amp

1шт.

55

1983601C1

HARNESS

- implement monitor adapter, Includes: Ref. P/N 225162C1

1шт.

225162C1

PLUG

CAP - implement harness (Not shown)

1шт.
