Запчасти Case IH 5120 (4-14) - ELECTRICAL HARNESS, CANOPY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

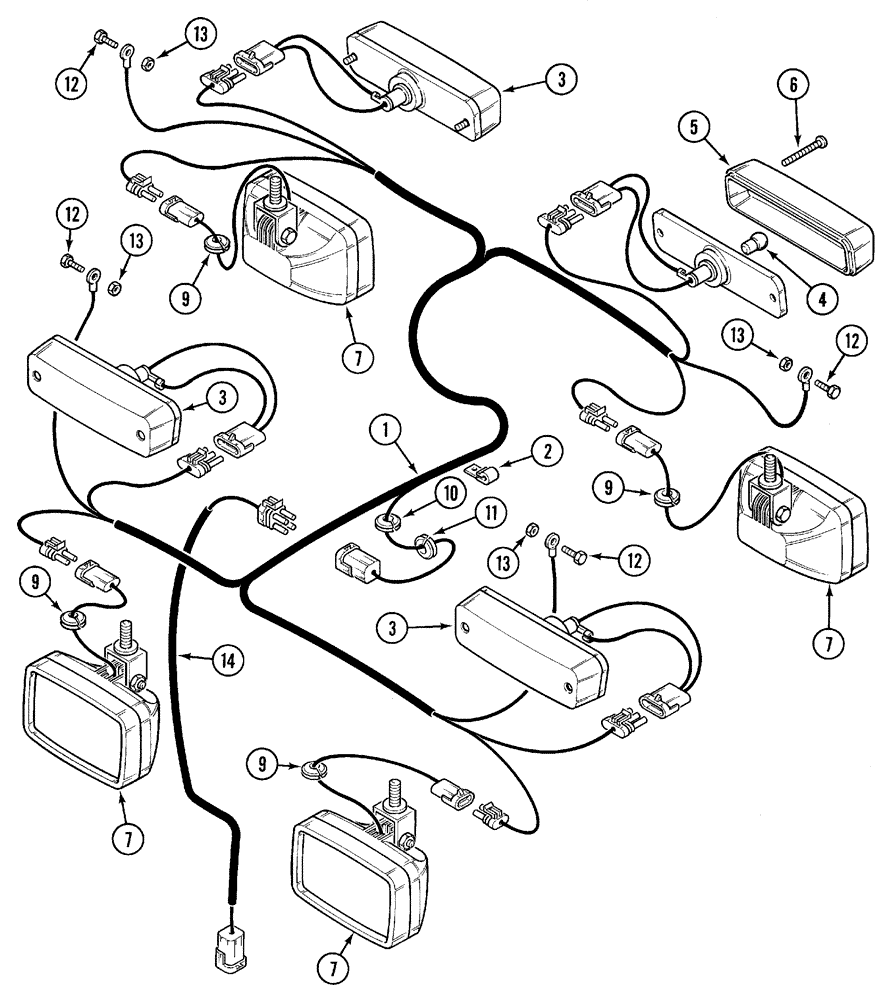

Схема запчастей Case IH 5120 - (4-14) - ELECTRICAL HARNESS, CANOPY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS
3
1
3
13
13
4
9
9
11
14
7
12
12
7
3
5
9
7
12
12
13
10
13
9
7
2
6

Артикул

Название

Примечание

Количество

1

1964605C3

HARNESS

- assembly, canopy

1шт.

2

1535235C1

CLIP

CLAMP - P-type

4шт.

3

A187610

LAMP

LIGHT - assembly, warning and turn, Includes: Ref. 4 - 6

4шт.

4

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

5

A187626

LENS

- warning lamp

1шт.

6

260-13428

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 3/4"

SCREW - pan head, cross recess, No. 8 x 1-3/4 inch

1шт.

7

REF

INSTRUCTION

LIGHT - assembly, flood (See Page 4-57)

4шт.

9

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- rubber

4шт.

10

248-1151

GROMMET,7/8" ID x 1 1/4" Groove Dia

- rubber

1шт.

11

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

2шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

4шт.

13

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0

4шт.

14

1983249C2

HARNESS

- canopy, extension

1шт.

Выбрано товаров: 13
