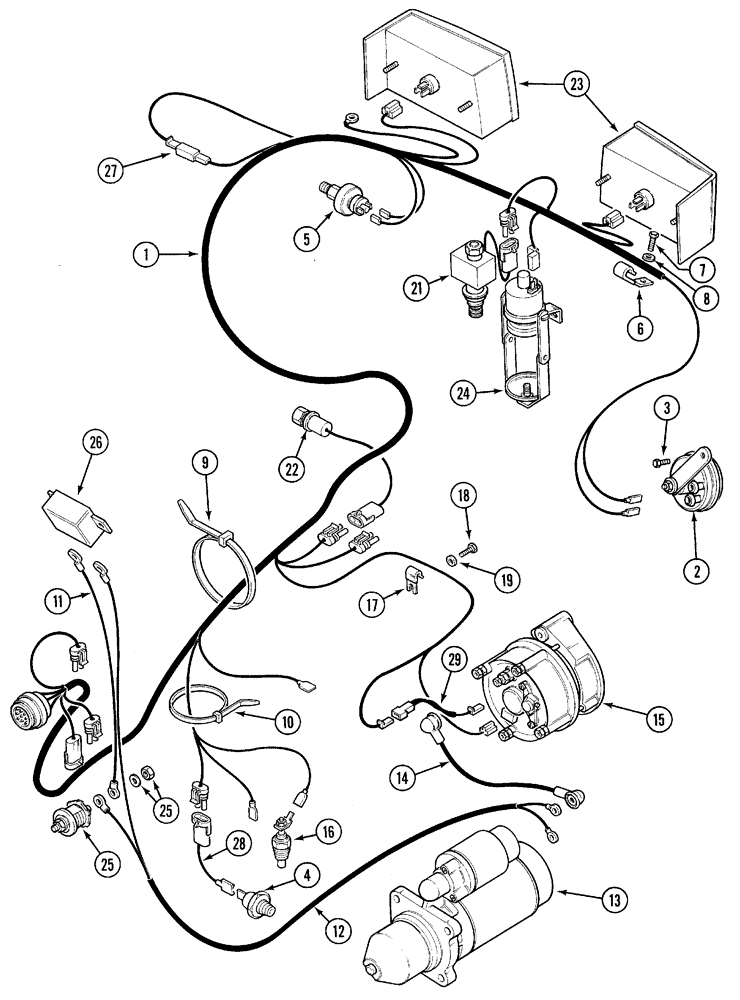

Запчасти Case IH 5120 (4-08) - ELECTRICAL HARNESS, ENGINE AND CONNECTIONS, UP TO JJF1029999 (04) - ELECTRICAL SYSTEMS

1

1546490C1

HARNESS

- engine, Serial Range: JJF1025680-JJF1029999

1шт.

1

1987575C1

HARNESS

- engine, Serial Range: JJF1024790-JJF1025679

1шт.

1

1533975C1

HARNESS

- engine, Serial Range: JJF1015046-JJF1024789

1шт.

1

1964986C3

HARNESS

- engine, Serial Range: -JJF1015045

1шт.

2

3057542R91

HORN

- warning sound

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

4

1534526C2

SWITCH, PRESSURE

SWITCH - engine oil pressure, Start Serial: JJF1015046

1шт.

4

1546461C2

SWITCH

- oil pressure, 10 psi, Serial Range: -JJF1015045

1шт.

5

292950A1

SWITCH

- restriction, air cleaner

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

2шт.

7

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1 x 14 mm

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

9

3402979R2

BAND

STRAP - cable tie

5шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

11

1964825C2

CABLE

- starting relay

1шт.

12

1964824C1

HARNESS

- starting motor

1шт.

13

REF

INSTRUCTION

MOTOR ASSY. - starting (See Figure 4-44)

1шт.

14

92288C1

CABLE

- alternator output

1шт.

15

REF

INSTRUCTION

ALTERNATOR - (See Figures 4-48,4-50)

1шт.

16

A187687

TEMPERATURE SENDER

TRANSMITTER - water temperature

1шт.

17

3229710R1

CLIP

- harness

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

1шт.

19

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

- flat, 8 mm

1шт.

20

T103869

CLIP

- band

1шт.

21

1980427C1

SOLENOID

VALVE - 3 way solenoid

1шт.

22

234921A1

SENSOR

SWITCH - air conditioning, High Pressure

1шт.

23

REF

INSTRUCTION

HEADLIGHTS - (See Figure 4-52)

1шт.

24

REF

INSTRUCTION

SOLENOID - ether start (See Figure 2-14)

1шт.

25

A187523

JUNCTION BLOCK

CONNECTOR - junction

1шт.

26

1546541C1

RELAY

- 12 volt, 75 ampere

1шт.

27

548239R2

RECTIFIER

DIODE - nonlocking, 2-31/64 inch long

1шт.

28

113640A1

CABLE

HARNESS - adapter, oil pressure switch

1шт.

29

1964625C1

CABLE

HARNESS - adapter, alternator

1шт.
