Запчасти Case IH 5120 (4-06) - ELECTRICAL HARNESS, POWER SHIFT (04) - ELECTRICAL SYSTEMS

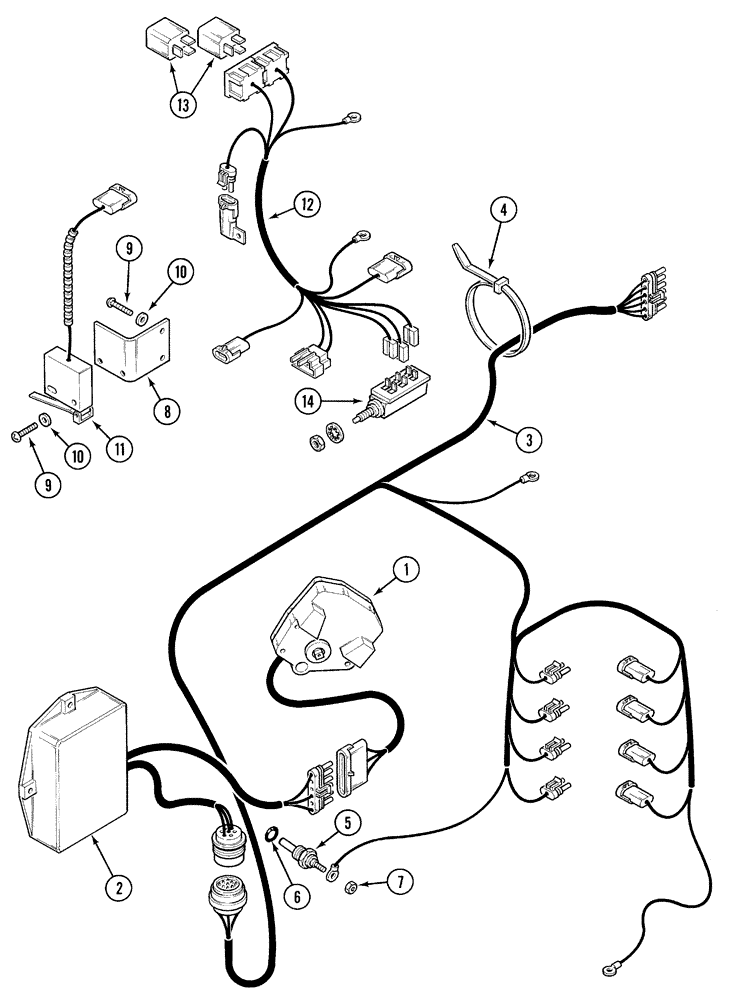

Схема запчастей Case IH 5120 - (4-06) - ELECTRICAL HARNESS, POWER SHIFT (04) - ELECTRICAL SYSTEMS
7
10
3
13
11
1
12
4
10
9
6
14
8
9
2
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SHIFTER - control, (See Figure 6-50)

1шт.

2

1987585C1

CONTROL

MODULE - control, Start Serial: JJF1015046

1шт.

87721353R

REMAN ELECT CONTROL

5120 (1/90-), 5220, BOTH MODULE - control, Start Serial: JJF1015046, Reman for New P/N 1987585C1

1шт.

87721353C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

1964762C3

CONTROL

MODULE - control, Serial Range: JJF1005653-JJF1015045

1шт.

87721353R

REMAN ELECT CONTROL

5120 (1/90-), 5220, BOTH MODULE - control, Serial Range: JJF1005653-JJF1015045, Reman for New P/N 1964762C3

1шт.

87721353C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

122495A2

HARNESS

- powershift, Start Serial: JJF1030000

1шт.

3

1987579C1

HARNESS

- powershift, Serial Range: JJF1015046-JJF1029999

1шт.

3

1964791C4

HARNESS

- powershift, Serial Range: -JJF1015045

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

10шт.

5

1964691C1

PROBE

TRANSMITTER - oil temperature

1шт.

6

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

8

1958603C1

SUPPORT

- clutch switch (Without creeper)

1шт.

9

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

- panhead, Phillips, 3 - 0.5 x 12 mm (Without creeper)

4шт.

10

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Flat (3.2 x 7 x 0.5 mm) (Without creeper) M3

4шт.

11

92397C1

SWITCH

- clutch pedal, Version with Power Shift without creep

1шт.

12

1964918C4

HARNESS

- adapter Creeper only, Serial Range: -JJF1005652

1шт.

13

1983394C1

RELAY

- electrical Creeper only, Serial Range: -JJF1005652

1шт.

14

1964945C4

SWITCH

- clutch pedal Creeper only, Serial Range: -JJF1005652

1шт.

232800A1

KIT

- clutch switch (See Figure 4-22)

1шт.

Выбрано товаров: 22
