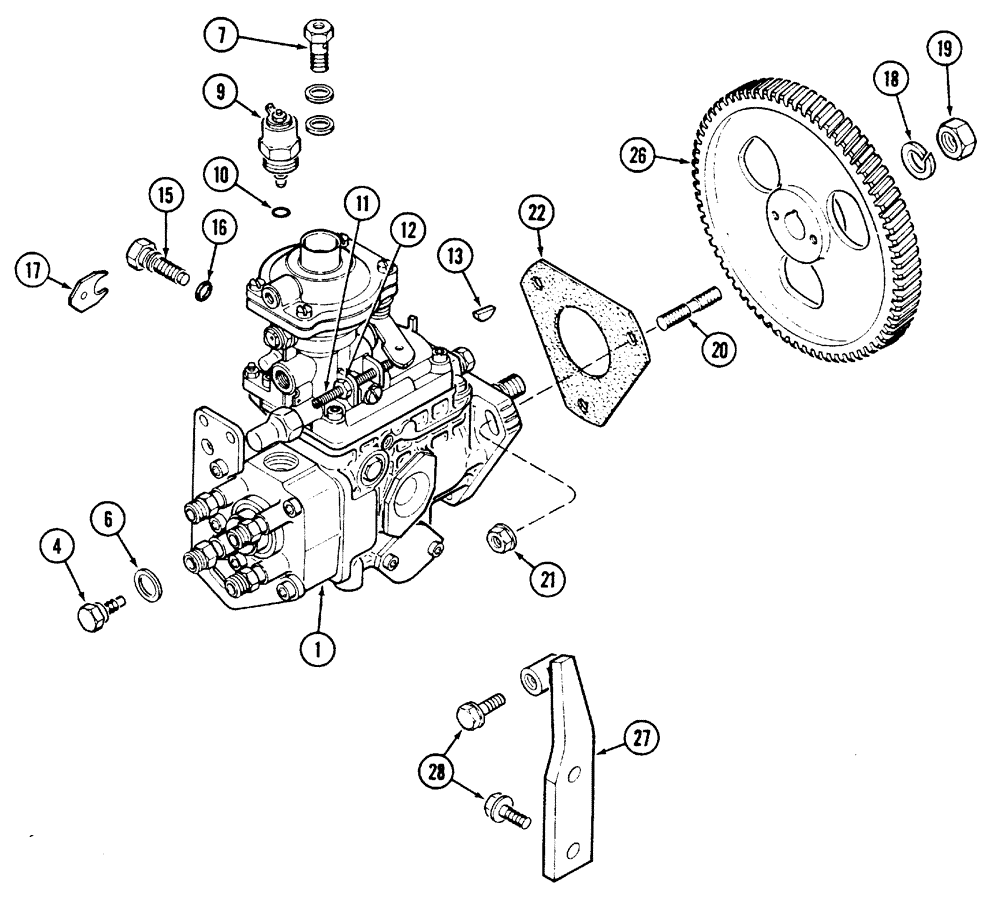

Запчасти Case IH 5120 (3-16) - FUEL INJECTION PUMP AND DRIVE, 5120 TRACTOR - 4TA-390 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP fuel injection, Includes: Ref. 4 - 19 and P/N J903570

1шт.

Components only are available for the 5120 tractor. For a complete injection pump, order J917394, see Figure: 3 - 14

1шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW vent

1шт.

6

3053133R1

SEALING RING,M8 x 11.5 x 1

RING gasket, vent screw

1шт.

7

J905465

BANJO BOLT

BOLT banjo, overflow

1шт.

9

A77753

SOLENOID

SOLENOID ASSY. shut down, 12 volt

1шт.

10

J903577

SEAL

solenoid

1шт.

11

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW low idle stop

1шт.

12

J904783

NUT

low idle screw

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

17

J904786

PLATE

timing lock

1шт.

18

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

19

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve, not illustrated

1шт.

20

J902501

STUD

pump mounting, 8 - 1.25 x 48 mm

3шт.

21

J900589

NUT

hex flange, special, 8 mm

3шт.

22

J931607

GASKET

pump mounting

1шт.

26

J912885

PINION

GEAR pump drive

1шт.

27

J905313

LEVER

BRACE fuel pump

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

3шт.
