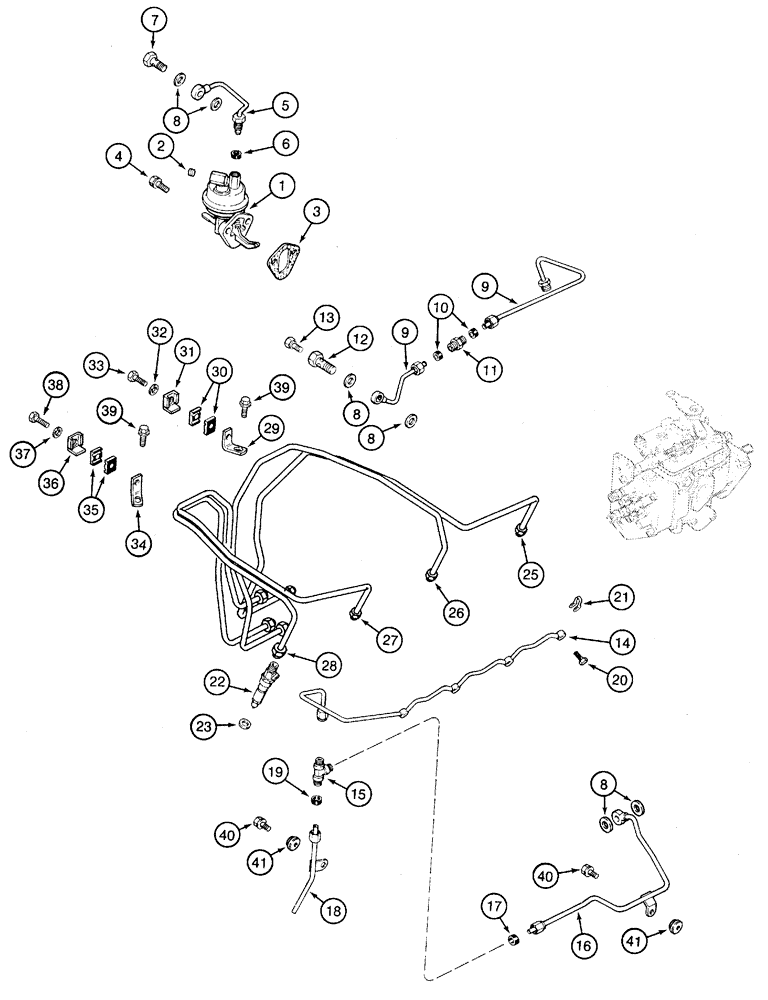

Запчасти Case IH 5120 (3-10) - FUEL INJECTION SYSTEM, 4T / 4TA -390 ENGINES (03) - FUEL SYSTEM

1

J928143

PUMP

fuel lift

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

J931059

GASKET

lift pump, mounting

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSY. fuel supply, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

OD 3/16" Tube

1шт.

7

J903035

BANJO BOLT

BOLT banjo hex, 12 - 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

6шт.

9

J918640

FUEL TUBE

TUBE ASSY. fuel supply, two-piece, Includes: Ref. 10 and 11

1шт.

This tube assy. consists of: (1) J918641, tube; (1) J908988 tube; and (1) J908983 male union. Tubes are NSS

1шт.

10

222-103

SLEEVE,5/16" Tube

OD 5/16" Tube

2шт.

11

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16" tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSY. banjo hex, special, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW hex, special, vent

1шт.

14

J909695

FUEL TUBE

TUBE manifold, fuel drain

1шт.

15

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing

1шт.

16

J905701

FUEL TUBE,4.76 mm OD

TUBE fuel drain, Includes: Ref. 17

1шт.

17

222-101

SLEEVE,3/16" Tube

OD 3/16" Tube

1шт.

18

J905692

FUEL TUBE

TUBE fuel return, tee to fuel tank, Includes: Ref. 19

1шт.

19

222-101

SLEEVE,3/16" Tube

OD 3/16" Tube

1шт.

20

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

21

J903380

SEAL

connector

4шт.

22

REF

INSTRUCTION

NOZZLE ASSY. fuel injector, see Figure: 3-18 and 3-20

4шт.

23

REF

INSTRUCTION

SEAL injector, see Figure: 3-18 and 3-20

4шт.

25

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector, No. 1 cylinder

1шт.

25

J904204

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE fuel injector, No. 1 cylinder, with aftercooler

1шт.

26

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector, No. 2 cylinder

1шт.

26

J904205

FUEL TUBE,2 mm ID x 6.4 mm OD x 701.5 mm L

TUBE fuel injector, No. 2 cylinder, with aftercooler

1шт.

27

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector, No. 3 cylinder

1шт.

27

J904206

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE fuel injector, No. 3 cylinder, with aftercooler

1шт.

28

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE fuel injector, No. 4 cylinder

1шт.

28

J904207

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE fuel injector, No. 4 cylinder, with aftercooler

1шт.

29

J919294

SUPPORT

BRACKET fuel tube, No. 1 and No. 2

1шт.

30

J917746

CLAMP

fuel tube

2шт.

31

J904711

SUPPORT

BRACKET fuel tube

1шт.

32

J903723

WASHER

flat, 5 mm

1шт.

33

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

34

J919292

SUPPORT

BRACKET fuel tube, No. 3 and No. 4

1шт.

35

J917746

CLAMP

fuel tube

2шт.

36

CURJ904711

CLAMP

BRACKET fuel tube

1шт.

37

J903723

WASHER

flat, 5 mm

1шт.

38

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

39

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Bracket retaining Hex Flg Hd, M8 x 1.25 x 25

2шт.

40

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

41

J900267

SEAL

cover bolt

2шт.
