Запчасти Case IH 5120 (2-62) - ENGINE GASKET KITS, VALVE GRIND KIT, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE

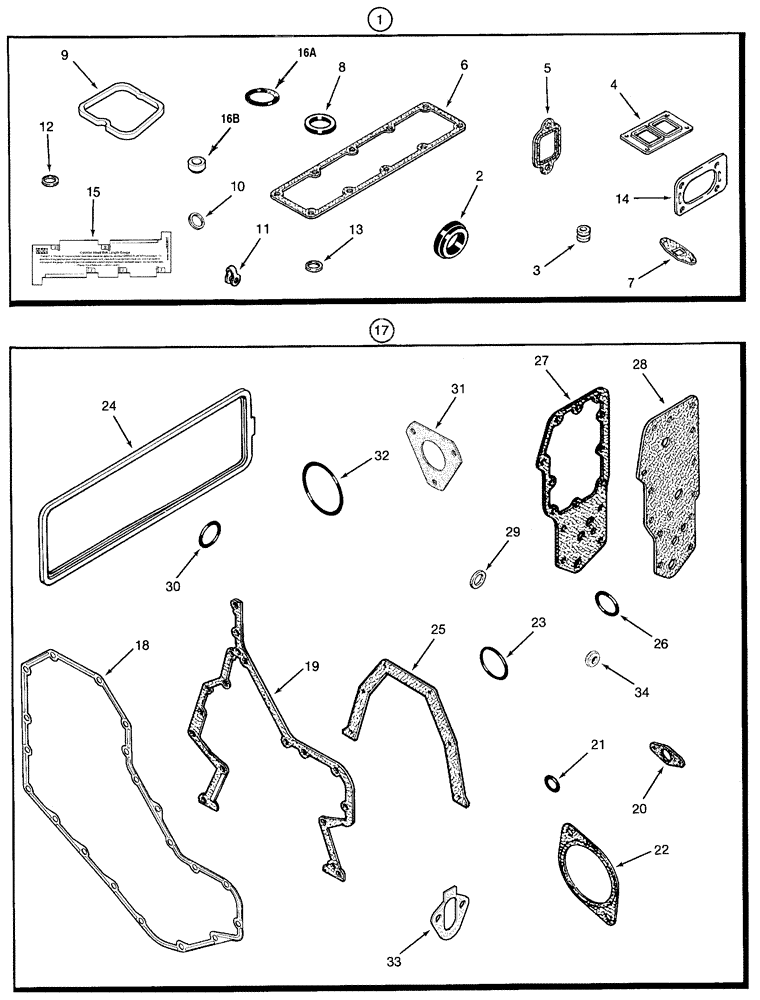

Схема запчастей Case IH 5120 - (2-62) - ENGINE GASKET KITS, VALVE GRIND KIT, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE
8
32
15
14
9
21
27
24
4
17
19
16a
3
23
13
30
33
20
29
16b
26
34
7
1
2
11
22
10
28
31
12
5
6
18
25

Артикул

Название

Примечание

Количество

1

A77858

GASKET KIT

KIT gasket, valve grind, Includes: Ref. 2 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, Figure 2-42.

1шт.

2

J923331

GASKET

thermostat housing

1шт.

3

J901097

SEAL

valve

8шт.

4

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

6

J914028

GASKET

intake manifold

1шт.

7

J914388

GASKET

turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

1шт.

9

J902666

GASKET

SEAL rocker arm cover

4шт.

10

J900808

SEAL

injector nozzle, 9 mm injector tip

4шт.

11

J903380

SEAL

connector

4шт.

12

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

, Serial Range: body-nut

4шт.

14

J914856

GASKET,1.02mm Thk

air crossover connection

1шт.

15

J823921

GAUGE

cylinder head, bolt length

1шт.

16

J928406

ISOLATOR

noise

4шт.

17

A77860

GASKET KIT

KIT gasket, cylinder block, Includes: Ref. 18 - 34

1шт.

18

J914385

GASKET,1.02mm Thk

front cover, cylinder block kit

1шт.

19

J931351

GASKET

gear housing, cylinder block kit

1шт.

20

J905595

GASKET

timing pin housing, cylinder block kit

1шт.

21

J913994

O-RING

sealing, timing pin, cylinder block kit

1шт.

22

J929751

GASKET

access cover plate, cylinder block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J283767

GASKET,7.4mm Thk

push rod cover, cylinder block kit

1шт.

25

J928493

GASKET

rear cover retainer, cylinder block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, cylinder block kit

1шт.

27

J942914

GASKET

oil cooler core, cylinder block kit

1шт.

28

J929792

GASKET,1.2mm Thk

filter head, cylinder block kit

1шт.

29

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, cylinder block kit

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing, 38 mm ID, cylinder block kit

1шт.

31

J931607

GASKET

pump mounting, cylinder block kit

1шт.

32

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING flywheel housing to block, cylinder kit

1шт.

33

J931059

GASKET

lift pump, mounting, cylinder block kit

1шт.

34

J928759

SEALING WASHER

WASHER seal, cylinder block kit

4шт.

Выбрано товаров: 35
