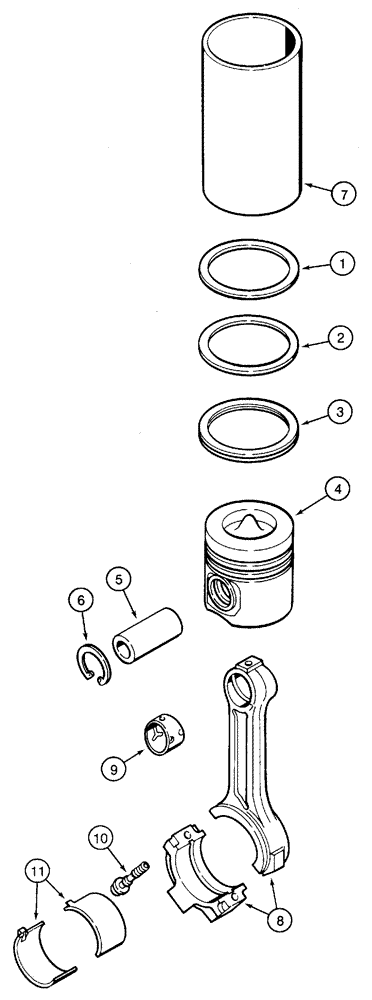

Запчасти Case IH 5120 (2-60) - PISTONS AND CONNECTING RODS (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT piston

4шт.

A77518

PISTON

KIT piston, standard, Includes: Ref. 1 - 6

4шт.

A77727

PISTON RING SET

KIT ring, standard, Start Serial: 44475180

1шт.

A77500

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3, Serial Range: -44475179

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard, stamped 7163

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

A77731

PISTON & RINGS KIT

KIT piston, 0.5 mm oversize, for 4t-390 engine

4шт.

A77734

PISTON

KIT piston, 0.5 mm oversize, for 4ta-390 engine, Includes: Ref. P/N A77728, A77501 and 1 - 6

4шт.

A77728

PISTON RING SET

KIT ring, 0.5 mm oversize, Start Serial: 44475180

1шт.

A77501

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 - 3, Serial Range: -44475179

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize, stamped 8815

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

A77732

PISTON

KIT piston, 1.0 mm oversize

4шт.

A77520

PISTON

KIT - piston, 1.0 mm oversize, Includes: Ref. P/N A77529, A77502 and 1 - 6

4шт.

A77729

PISTON RING SET

KIT ring, 1.0 mm oversize, Start Serial: 44475180

1шт.

A77502

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3, Serial Range: -44475179

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 8816

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

snap

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair

1шт.

J925232

ROD, CONNECTING

ROD ASSY. connecting, new, Includes: Ref. 8 - 10

4шт.

JR925232

ROD

Assy., connecting, remanufactured, component parts shown on this figure do not apply to this assy.

4шт.

JC925232

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assy.

4шт.

84145405R

REMAN-CONNECTING ROD

5120 (1/90-), 5220, Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting, includes both halves

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

J901085 subs to J941476. J941476 does not use the lube hole in the top of the bushing. Lube grooves are cut in the ID of the bushing to provide lubrication.

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rods

2шт.

11

A77465

BEARING SET

KIT bearing, upper and lower set, standard, connecting rods

4шт.

11

A77466

BEARING SET

KIT bearing, upper and lower set, 0.25 mm undersize, connecting rods

4шт.

11

A77467

BEARING LINER

KIT bearing, upper and lower set, 0.50 mm undersize, connecting rods

4шт.

11

A77468

BEARING SET

KIT bearing, upper and lower set, 0.75 mm undersize, connecting rods

4шт.

11

A77469

BEARING SET

KIT bearing, upper and lower set, 1.00 mm undersize, connecting rods

4шт.
