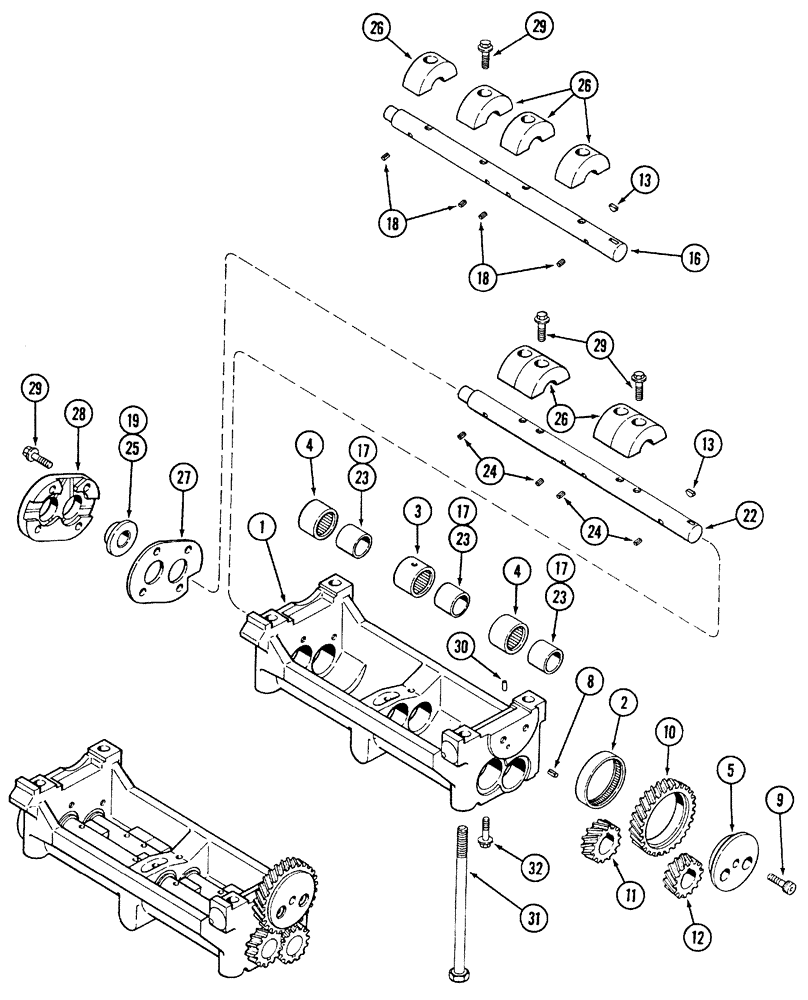

Запчасти Case IH 5120 (2-58) - THREE GEAR BALANCER, 5120/5220 TRACTOR, 4TA-390 ENGINE (02) - ENGINE

J912538

BALANCER

ASSY. engine, Includes: Ref. 1 - 30 and 32

1шт.

1

J906379

HOUSING

balancer

1шт.

2

J901352

BEARING, NEEDLE

BEARING needle

1шт.

3

J906378

BEARING, NEEDLE

BEARING needle

2шт.

4

J907201

BEARING, NEEDLE

BEARING needle

4шт.

5

J907572

RETAINER

gear, idler

1шт.

8

J904701

PIN, ROLL

PIN roll

1шт.

9

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

2шт.

10

J907571

GEAR, IDLER

GEAR idler

1шт.

11

J906064

GEAR

shaft, upper

1шт.

12

J906065

GEAR

shaft, lower

1шт.

13

J907967

KEY

woodruff

2шт.

16

J906373

SHAFT

balancer, upper

1шт.

17

J906069

RACE

bearing, inner

3шт.

18

J906072

PIN

spiral

4шт.

19

J906068

COLLAR

thrust

1шт.

22

J906374

SHAFT

balancer, lower

1шт.

23

J906069

RACE

bearing, inner

3шт.

24

J906072

PIN

spiral

4шт.

25

J906068

COLLAR

thrust

1шт.

26

J906073

WEIGHT

counter, balance

8шт.

27

J906066

PLATE

thrust, bearing

1шт.

28

J906067

PLATE

thrust, bearing

1шт.

29

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

12шт.

30

J907307

DOWEL

PIN dowel

1шт.

31

J904218

SCREW,Hex, M14 x 2 x 231mm, Gr 12.9

BOLT hex, 14 x 231 mm

4шт.

32

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

1шт.

This bolt MUST be removed after balancer is installed on engine

1шт.
