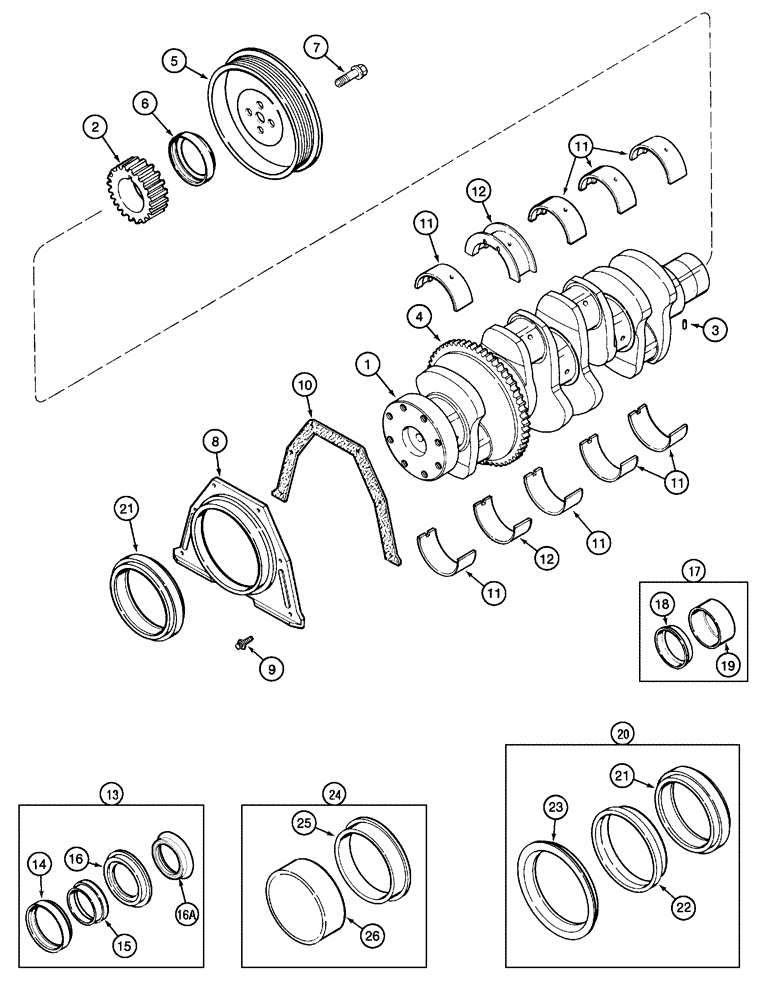

Запчасти Case IH 5120 (2-54) - CRANKSHAFT, 4T / 4TA-390 ENGINE (02) - ENGINE

1

J909162

CRANKSHAFT

ASSY. engine, Includes: Ref. 2 - 3, Serial Range: -52107490

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

1

J908031

CRANKSHAFT

ASSY. engine, Includes: Ref. 2 - 3, Start Serial: 52107489

1шт.

J929036R

REMAN-CRANKSHAFT

5120 Start Serial: 52107489 (1/90-), 5220 Start Serial: 52107489, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

J909158

PINION

GEAR accessory drive, Serial Range: -52107490

1шт.

4

J909158

PINION

GEAR accessory drive, Start Serial: 52107489

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, Order ; A77890, kit

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

RETAINER seal, rear cover

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

rear cover retainer

1шт.

11

A77405

CRANKSHAFT BEARING

BEARING main, upper and lower set, standard

4шт.

11

A77472

BEARING SET

BEARING main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

BEARING main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

BEARING main, upper and lower set, 0.75 mm undersize

4шт.

11

A77478

BEARING SET

BEARING main, upper and lower set, 1.0 mm undersize

4шт.

12

A77406

CRANKSHAFT BEARING

BEARING main thrust, upper and lower set, standard

1шт.

12

A77473

THRUST BEARING

BEARING main thrust, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

BEARING main thrust, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

BEARING main thrust, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

BEARING main thrust, upper and lower set, 1.00 mm undersize

1шт.

13

A77890

SEAL PACKAGE

KIT oil seal, crankshaft front, with wear sleeve, Includes: Ref. 14 - 16A

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16a

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

17

A77809

GASKET KIT

KIT oil seal, crankshaft rear, dry, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

J909411

SEAL

KIT oil seal, crankshaft rear, wet, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

A77810

SERVICE KIT

KIT oil seal, crankshaft rear with wear sleeve, dry, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL

1шт.

24

J929106

SEAL

KIT oil seal, crankshaft rear with wear sleeve, wet, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
