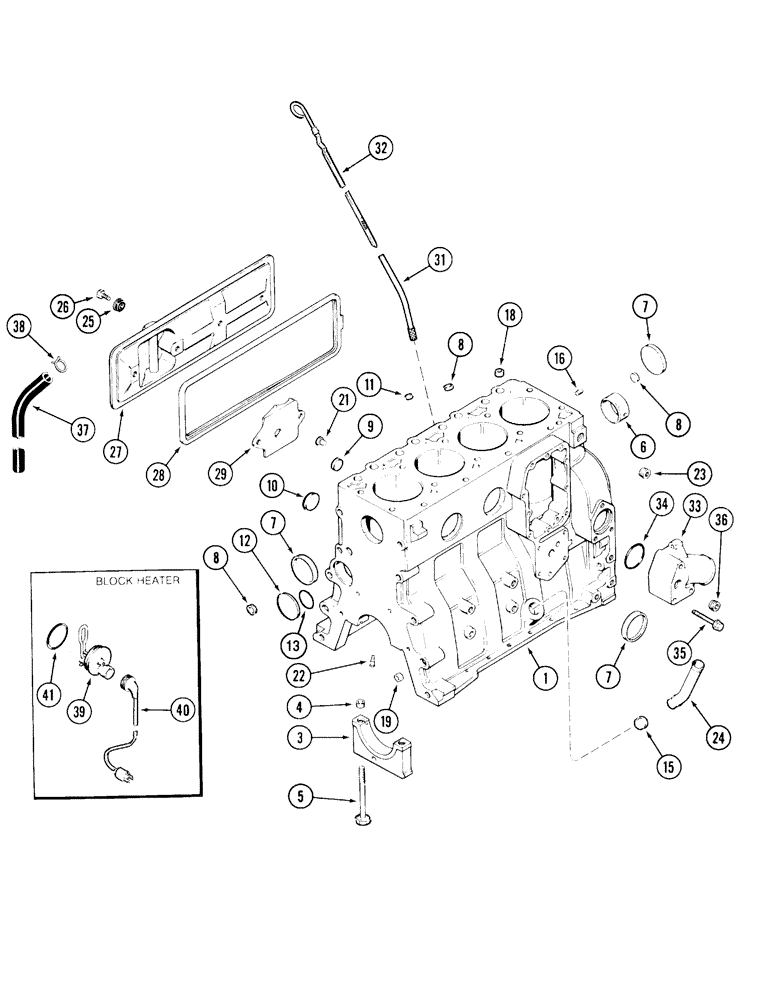

Запчасти Case IH 5120 (2-50) - CYLINDER BLOCK, 5120/5220, 4T/4TA-390, ENGINE NO. 52107490 AND AFTER (02) - ENGINE

1989093C1

BASIC ENGINE

ENGINE ASSY. stripped and balanced, includes all parts except : starter, alternator, fan and belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front

1шт.

JR920397

ENGINE, EXCHANGE

BLOCK ASSY. short, remanufactured

1шт.

JC908152

BLOCK

core

1шт.

J920397

SKELETON ENGINE

BLOCK ASSY. use with 2 gear balancer, see Figure: 2-56, Includes: Ref. 1 - 9

1шт.

1

J916781

CRANKCASE

BLOCK ASSY. stripped, engine

1шт.

3

J900967

BEARING CAP

CAP main bearing

5шт.

4

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING camshaft front, see Figure: 2 - 46

1шт.

7

A77782

PLUG

expansion, 58 mm OD

4шт.

8

J900956

PLUG

expansion, 18 mm OD

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

Expansion Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 10 - 23

1шт.

10

J900958

PLUG

expansion, 32 mm OD

2шт.

11

J900955

PLUG

expansion, 10 mm OD

1шт.

12

J900687

PLUG

expansion, Welch, 60 mm OD

1шт.

13

J926047

O-RING,0.07" Thk x 2.239" ID

block

1шт.

15

J920706

PLUG

expansion, 22 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

22

J930139

NOZZLE CAP

NOZZLE piston cooling

4шт.

23

A77429

PLUG

hex socket, 1/2" PT

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

25

J900267

SEAL

WASHER seal

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

27

J916441

COVER

tappet

1шт.

28

J904056

GASKET

tappet cover

1шт.

29

J907586

BAFFLE

tappet cover

1шт.

31

J918246

TUBE

dipstick oil

1шт.

32

J918244

DIPSTICK

oil gauge

1шт.

33

J903102

CONNECTION

water inlet

1шт.

34

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

35

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT hex flange head, 10 mm - 1.50 x 75 mm

3шт.

36

A77429

PLUG

hex socket, 1/2" PT

2шт.

37

J906593

HOSE

Breather

1шт.

38

J904230

CLAMP,25.4mm

hose

1шт.

A77634

KIT

engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

HEATER engine block

1шт.

40

J905113

CABLE

engine block heater, 6 feet long

1шт.

J905113 and 196466A1 are 6ft. long. For 1ft. long cord, order A44813.

1шт.

41

J910517

O-RING

heater sealing

1шт.
