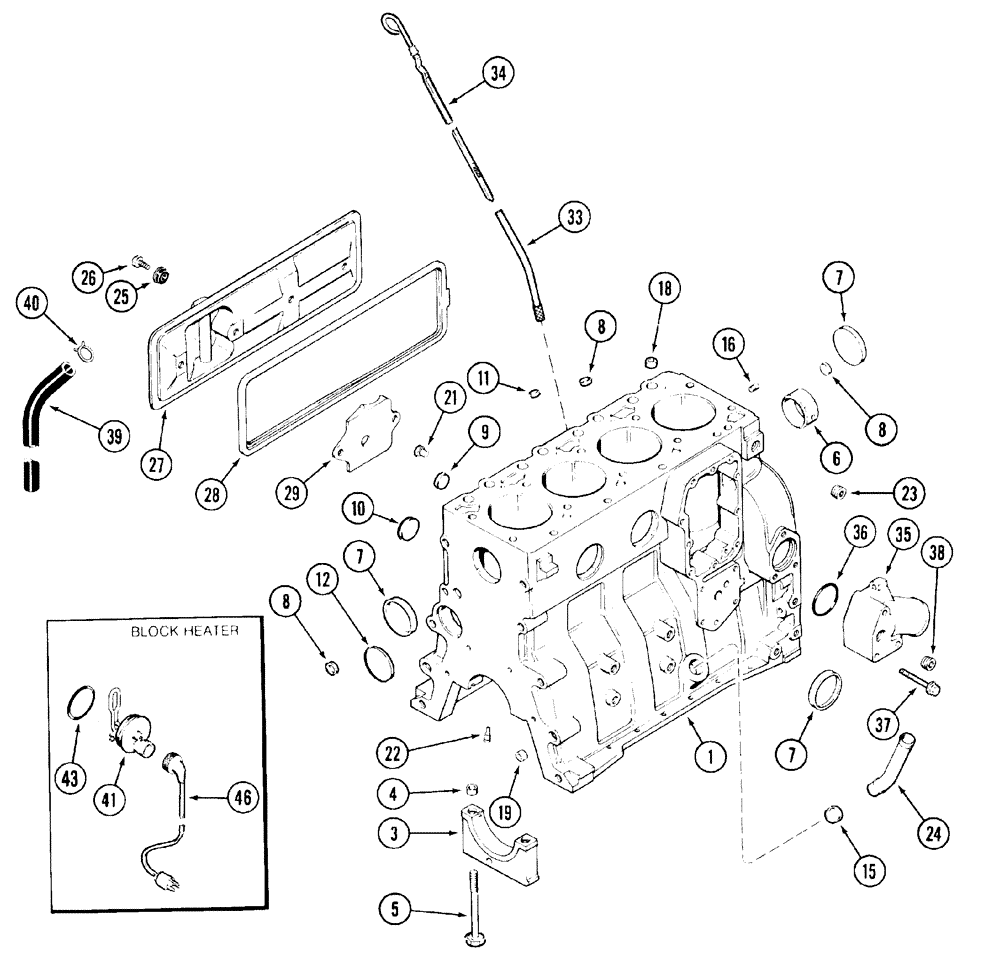

Запчасти Case IH 5120 (2-48) - CYLINDER BLOCK, 5120, 4T/4TA-390, PRIOR TO ENGINE NO. 52107489 (02) - ENGINE

1989094C1

BASIC ENGINE

ENGINE ASSY. stripped and balanced, includes all parts except : starter, alternator, fan and belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill tube, dipstick, fuel injection pump, injectors and lines, front

1шт.

JR908152

ENGINE, EXCHANGE

BLOCK ASSY. short, remanufactured

1шт.

No balanced or remanufactured short blocks are available, change old crank for new when ordering JR908152.

1шт.

JR908152 will not accept a balancer. Order new J908152 if your engine uses a 3 gear balancer

1шт.

JC908152

BLOCK

core

1шт.

J908152

CRANKCASE

BLOCK ASSY. use with 3 gear balancer, see Figure 2 - 58, Includes: Ref. 1 - 9

1шт.

J908152 is used prior to engine S/N 52107489. After use J920397 which is a shortblock for a 2 gear balancer

1шт.

1

J916254

BLOCK ASSY.

stripped, engine, Includes: Ref. 3 - 9

1шт.

3

J900967

BEARING CAP

CAP main bearing

5шт.

4

J900068

BEARING WASHER

RING dowel, 18 mm OD

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING camshaft front, see Figure: 2 - 46

1шт.

7

A77782

PLUG

expansion, 58 mm OD

4шт.

8

J900956

PLUG

expansion, 18 mm OD

3шт.

9

41-1616

PLUG,Cup, 1", Stainless

Expansion Cup, 1", Stainless

2шт.

J905813

PACKAGE, REPAIR

KIT block hardware, Includes: Ref. 10 - 23

1шт.

10

J900958

PLUG

expansion, 32 mm OD

2шт.

11

J900955

PLUG

expansion, 10 mm OD

1шт.

12

41-3038

PLUG,Exp, 2 3/8"

- expansion, 2-11/32 inch OD

1шт.

15

A77439

PLUG

expansion, 22 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

22

J901020

NOZZLE CAP

NOZZLE piston cooling

4шт.

23

A77429

PLUG

hex socket, 1/2" PT

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

25

J900267

SEAL

WASHER seal

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

4шт.

27

J916441

COVER

tappet

1шт.

28

J283767

GASKET,7.4mm Thk

push rod cover

1шт.

29

J907586

BAFFLE

tappet cover

1шт.

31

J918246

TUBE

dipstick oil

1шт.

32

J918244

DIPSTICK

oil gauge

1шт.

33

J279238

TUBE

dipstick, if equipped

1шт.

34

J914649

DIPSTICK

oil gauge, if equipped

1шт.

35

J903102

CONNECTION

water inlet

1шт.

36

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID

1шт.

37

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT hex flange head, 10 mm - 1.50 x 75 mm

3шт.

38

A77429

PLUG

hex socket, 1/2" PT

2шт.

39

J906593

HOSE

Breather

1шт.

40

J904230

CLAMP,25.4mm

hose

1шт.

196803A1

KIT

engine block heater, Includes: 41, 43 and 46

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine block

1шт.

43

J910517

O-RING

heater sealing

1шт.

46

196466A1

ELECTRIC CABLE

CABLE engine block heater

1шт.

196466A1 and J905113 are 6ft. long. For 1ft. long cord, order A44813.

1шт.
