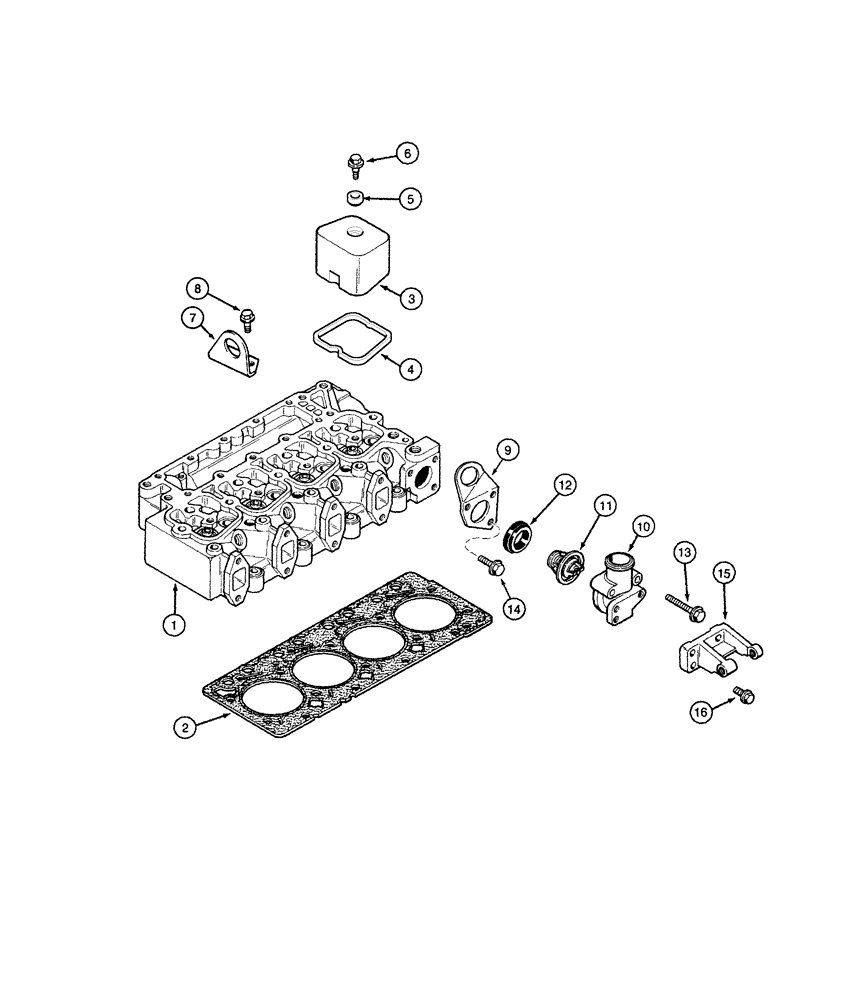

Запчасти Case IH 5120 (2-42) - CYLINDER HEAD AND COVERS, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, see Figure: 2-44

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

cylinder head, standard

1шт.

2

J283336

GASKET

cylinder head 2 notches, 0.25 mm oversize

1шт.

2

J283338

GASKET

cylinder head, 3 notches, 0.50 mm oversize

1шт.

3

J928404

COVER

rocker

4шт.

4

J930906

GASKET

rocker arm cover

4шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, Serial Range: -52166678

4шт.

5

J928406

ISOLATOR

noise, Start Serial: 52166679

4шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J917599

SUPPORT

BRACKET lifting

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, Class 10.9

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, housing, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT water, 83 degree C, housing

1шт.

12

J923331

GASKET

thermostat housing

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT hex flange head, 8 x 70 mm, thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J923387

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
