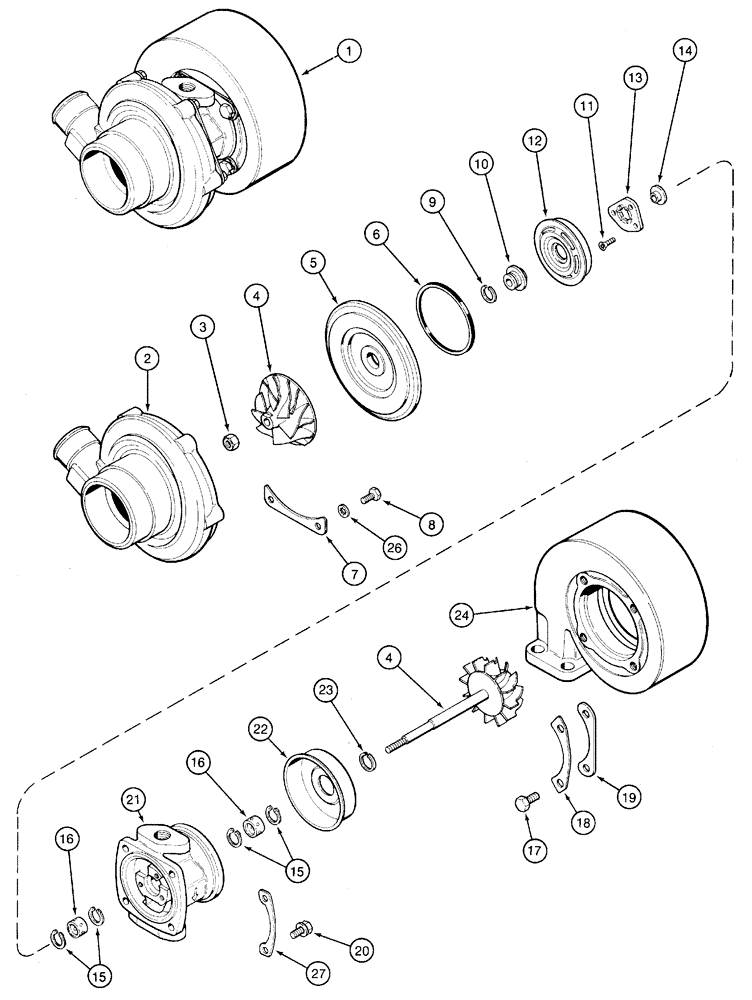

Запчасти Case IH 5120 (2-36) - TURBOCHARGER ASSEMBLY, 4T/4TA-390 ENGINE (02) - ENGINE

1

J802290

TURBOCHARGER

KIT turbocharger, Includes: Ref. 2 - 27

1шт.

1

JR802290

REMAN-TURBOCHARGER

5120, 5220

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex lock

1шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSY. turbocharger, includes both halves

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

BOLT clamping plate

6шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, oil slinger

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx

3шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, bearing retaining

4шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSY. hex, lock, includes washer

4шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER internal tooth lock

6шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

Part of overhaul turbocharger kit P/N J545652

1шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 3, 6, 8, 9, 11, 13, 15 - 18, 20, 23, 26 and 27

1шт.
