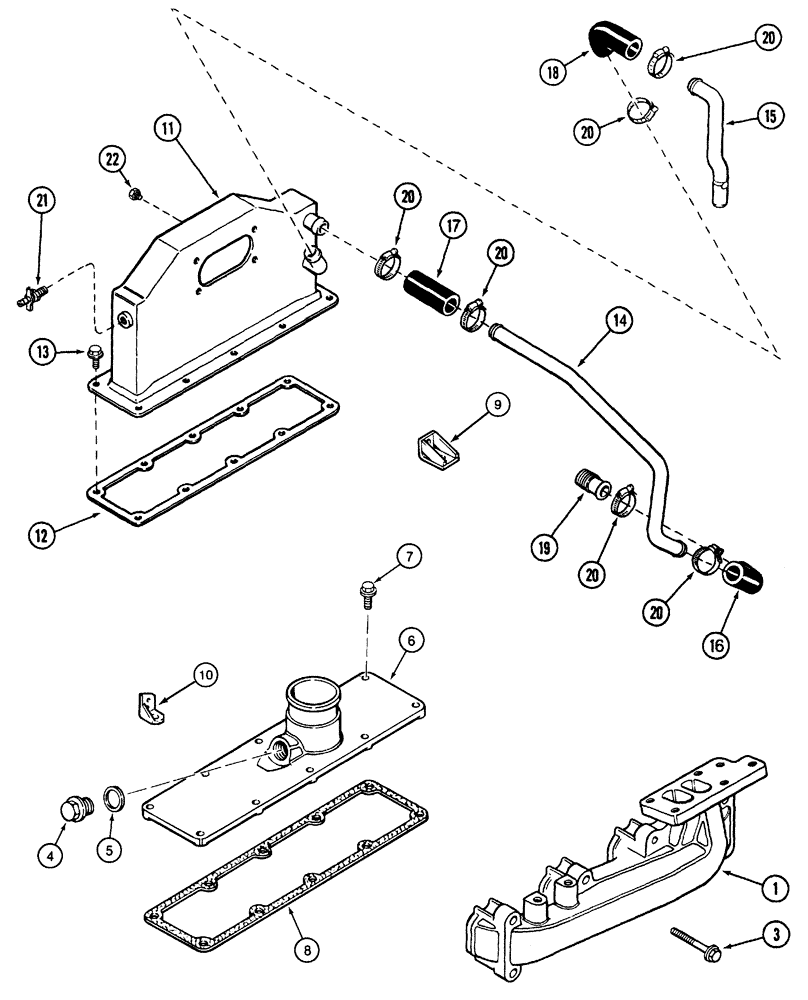

Запчасти Case IH 5120 (2-30) - MANIFOLDS, 4T-390 ENGINE, EXHAUST (02) - ENGINE

1

J901919

MANIFOLD

exhaust

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

BOLT - hex flange, M10 x 65, Exhaust

8шт.

4

J907185

PLUG

manifold, intake

1шт.

5

J906773

WASHER

plug sealing, intake

1шт.

6

J904339

COVER

intake

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Bracket retaining, Intake Hex Flg Hd, M8 x 1.25 x 25

10шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold, intake

1шт.

9

J917777

BRACE

fuel tube, intake

2шт.

10

J917778

BRACE

fuel tube, intake

1шт.

11

J919805

AFTERCOOLER

air intake, manifold 4TA-390

1шт.

12

J914028

GASKET

intake manifold, aftercooler 4TA-390

1шт.

13

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT hex flange, special, intake aftercooler manifold 4TA-390

10шт.

14

J914855

TUBE,0.75" OD

aftercooler return, intake manifold 4TA-390

1шт.

15

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

aftercooler drain , intake manifold 4TA-390

1шт.

16

J918607

HOSE,43.20 mm

Intake Aftercooler Manifold 4TA-390 43.20 mm

1шт.

17

J918611

HOSE,18.50 mm ID x 63.00 mm

Intake Aftercooler Manifold 4TA-390 18.50 mm ID x 63.00 mm

1шт.

18

J918608

HOSE,18.50 mm ID x 69.50 mm

4-1/2 inch (115 mm) long, intake aftercooler manifold 4TA-390

1шт.

19

J907167

SPLINED COUPLING

COUPLING block to hose, intake aftercooler manifold 4TA-390

1шт.

20

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Intake aftercooler manifold 4TA-390 #12, 0.69/1.25 Type F Worm

6шт.

21

J909394

COCK, DRAIN

VALVE drain, intake aftercooler manifold 4TA-390

1шт.

22

J906619

PLUG,1/8" - 27

hex, 1/8" PT, intake aftercooler manifold 4TA-390

1шт.
