Запчасти Case IH 5120 (2-28) - FRONT GEAR COVER, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE

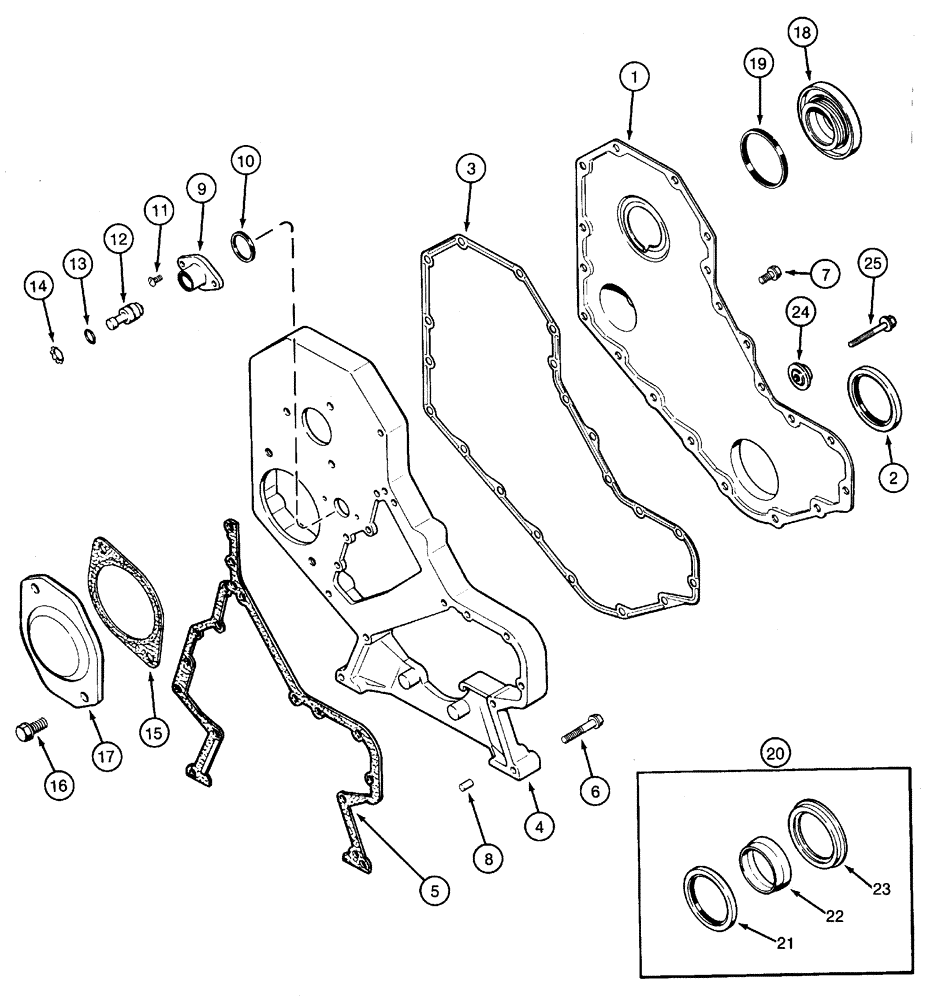

Схема запчастей Case IH 5120 - (2-28) - FRONT GEAR COVER, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE
15
19
3
24
20
13
10
11
21
2
7
23
12
1
8
18
9
17
22
16
5
6
4
25
14

Артикул

Название

Примечание

Количество

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, Order: item 20, seal kit

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J931351

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

J924962

FLANGE BOLT

BOLT hex flange, special, 8 - 1.25 x 16 mm

16шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , special Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

8

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long

2шт.

9

J919683

HOUSING

timing pin

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

13

J913994

O-RING

sealing, timing pin

1шт.

14

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

15

J929751

GASKET

access cover plate

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, Class 10.9

2шт.

17

J914868

COVER

PLATE access cover, flat

1шт.

18

J903463

PLUG,M63 x 5

front access

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

20

J904353

GASKET KIT

KIT oil seal, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

24

J912772

RETAINER

bolt

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

Выбрано товаров: 26
