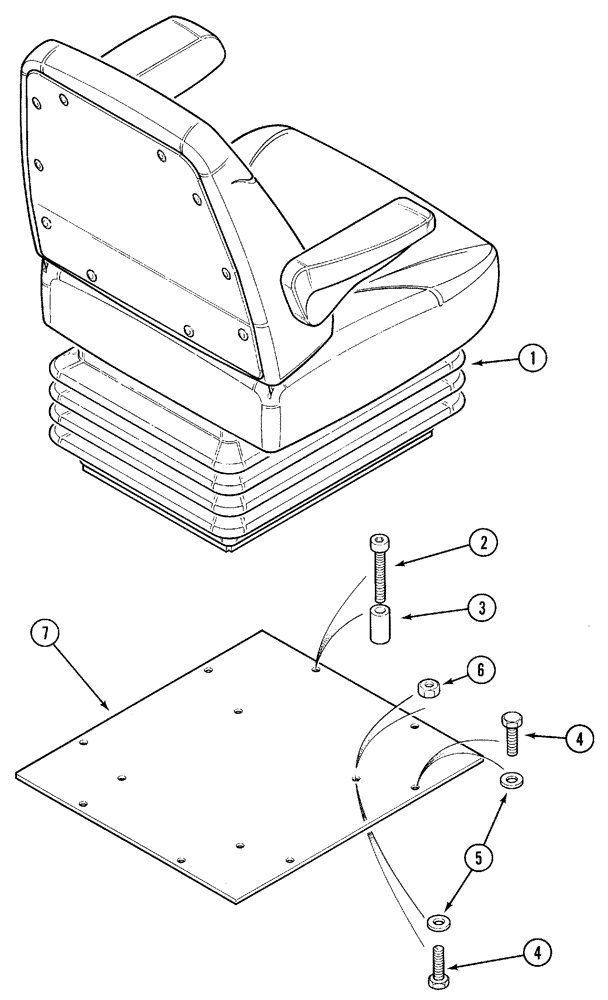

Запчасти Case IH 5120 (9-130) - SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - (See Figures 9-132 thru 9-138)

1шт.

2

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

- hex socket, 8 - 1.25 x 35 mm, 8.8

2шт.

3

1977685C1

SPACER

- seat mounting (Tractors with cab only)

2шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

10шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

10шт.

6

825-1408

NUT,M8, Cl 8

4шт.

7

1975780C4

PLATE

- cover (See Figure 9-60 for cab machines, 9-116 for non cab)

1шт.
