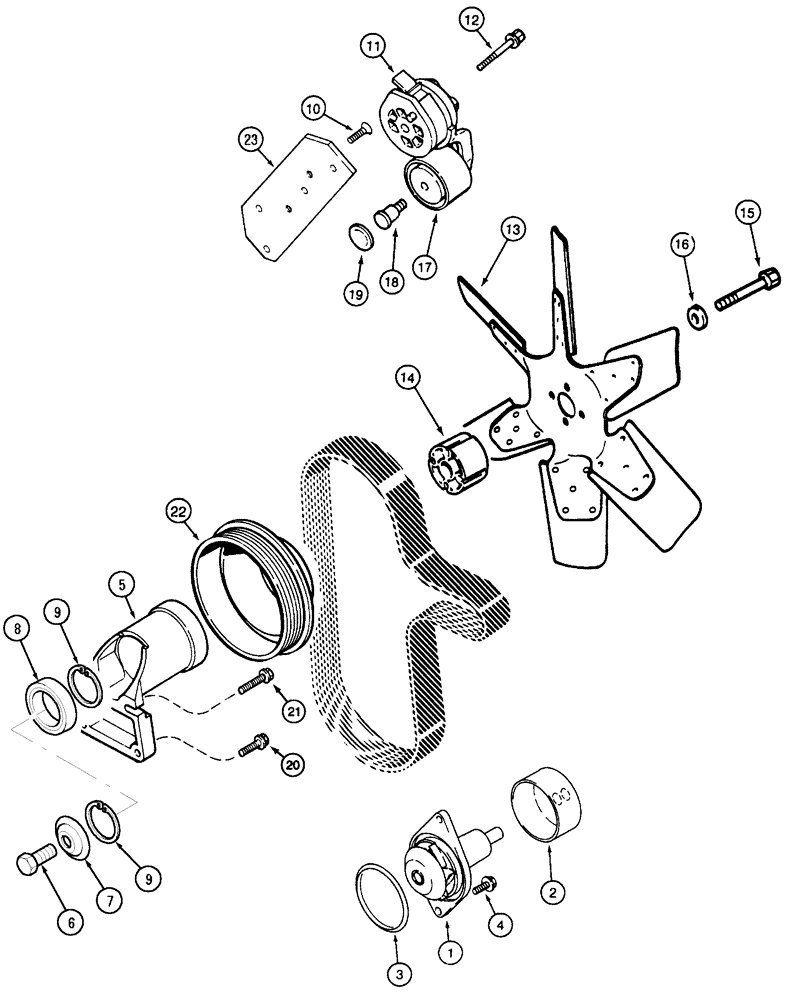

Запчасти Case IH 5120 (2-26) - WATER PUMP SYSTEM, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE

J802358

PUMP, WATER

KIT water pump, with hardened pulley, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

5120

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

J911205

BRACKET

SUPPORT fan, Includes: Ref. 5 - 9

1шт.

5

J911924

HUB

fan

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10 - 1.5 x 70 mm, Class 12.9

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING ball

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

1шт.

10

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

11

J918944

BELT TENSIONER

TENSIONER belt

1шт.

12

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

13

A184467

FAN

PULLER fan

1шт.

14

A184546

SPACER

fan

1шт.

15

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

A77817

KIT

KIT belt tensioner pulley

1шт.

17

NSS

NOT SOLD SEPARAT

PULLEY tensioner

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT tensioner

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL tensioner

1шт.

20

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

21

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.

22

J914462

PULLEY,163mm OD

fan, 1.1 to 1 ratio

1шт.

23

J925195

SUPPORT

BRACKET belt tensioner

1шт.

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Fan 3.56 mm W x 1498.60 mm L, 8 Ribs

1шт.
