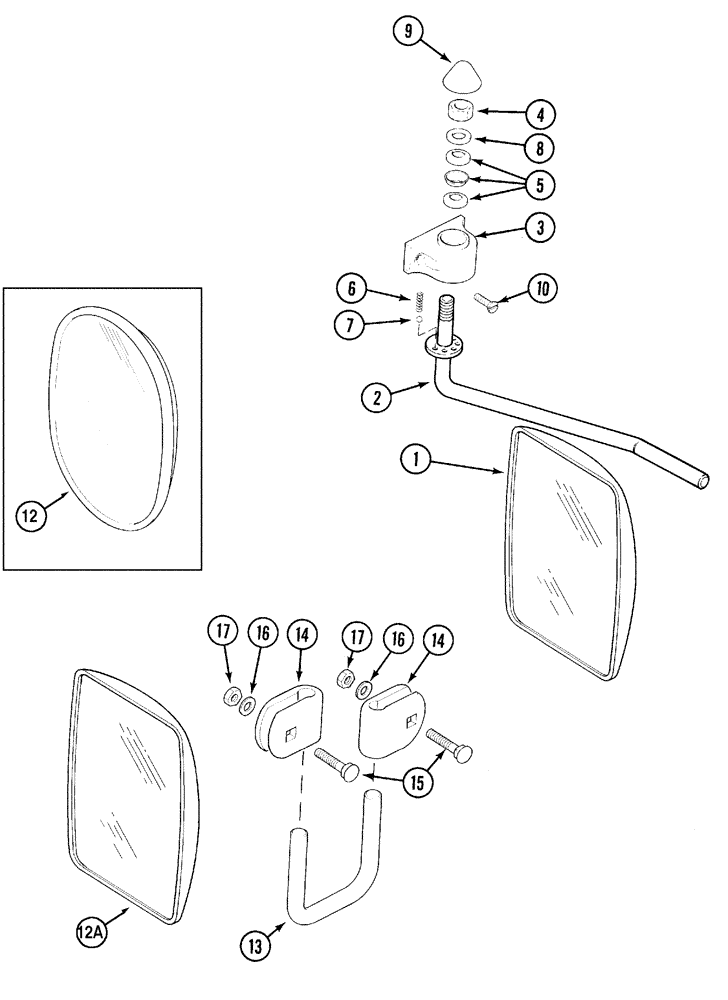

Запчасти Case IH 5120 (9-106) - CAB, MIRRORS, STANDARD (09) - CHASSIS/ATTACHMENTS

1

1344062C1

MIRROR

- standard

2шт.

1535637C1

SUPPORT ASSY.

HOLDER - assembly, left

1шт.

1535636C1

SUPPORT ASSY.

HOLDER - assembly, right, Includes: Ref. 2 - 10

1шт.

2

1535639C1

SUPPORT ASSY.

ROD - assembly, left

1шт.

2

1535638C1

SUPPORT ASSY.

ROD - assembly, right

1шт.

3

1977495C1

HOLDER

- mirror

1шт.

4

3079424R1

THIN NUT,M12 x 20, Thin

1шт.

5

934223R1

BELLEVILLE WASHER,M12 Bolt Size x 25mm OD x 1.5mm Thk

Lock M12.2 ID x 25 OD x 1.5 Thk

3шт.

6

3399562R1

SPRING

- compression

1шт.

7

511-1060

BALL,6mm Dia

- steel, 6 mm, Class 28

1шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

9

3399567R1

CAP

- cover

1шт.

10

543-710

SCREW,Phillips Drive, Flat HD, M8 x 20mm, Cl 4.8

- flat head, 8 x 20 mm, Class 4.8

4шт.

12

1975766C1

MIRROR

- interior, Mekra, Includes: Ref. 13

1шт.

13

1975807C1

ROD

- mirror support, Mekra

1шт.

14

1975808C1

CLAMP

- support, Mekra

2шт.

15

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

BOLT, CARRIAGE, , Mekra Short NK, M6 x 25, Cl8.8, Full Thd

2шт.

16

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm, hardened, Mekra

2шт.

17

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, Mekra

2шт.

12a

221737A1

MIRROR ASSY.

MIRROR - interior, Wilke, Includes: Ref. 13 - 17

1шт.

13

1975807C1

ROD

- mirror support, Wilke

1шт.

14

1975808C1

CLAMP

- support, Wilke

2шт.

15

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

BOLT, CARRIAGE, , Wilke Short NK, M6 x 25, Cl8.8, Full Thd

2шт.

16

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm, hardened, Wilke

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Wilke M6 x 1, Cl 8

2шт.
