Запчасти Case IH 5120 (2-24) - AIR CONDITIONING, COMPRESSOR (02) - ENGINE

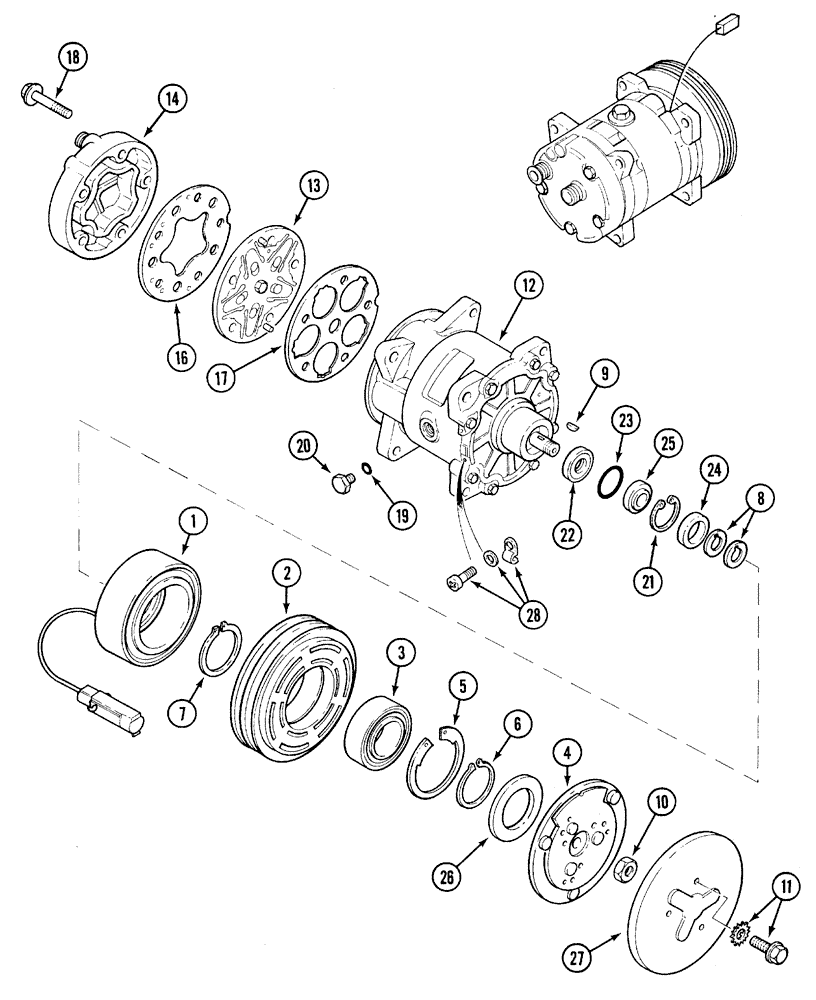

Схема запчастей Case IH 5120 - (2-24) - AIR CONDITIONING, COMPRESSOR (02) - ENGINE
23
14
9
4
24
18
8
5
1
2
7
22
25
16
12
21
13
27
28
6
3
11
19
17
26
20
10

Артикул

Название

Примечание

Количество

1999755C2

COMPRESSOR

COMPRESSOR air conditioning, HFC134A, Includes: Ref. P/N 135324A1 and 139673A1, Start Serial: JJF1034500

1шт.

86993462R

REMAN-COMPRESSOR

5120 (1/90-), 5220 both Start Serial: JJF1034500 ; Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc. - 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

135324A1

CLUTCH

CLUTCH ASSY. compressor

1шт.

139673A1

OIL

OIL lubrication, HFC134A, 250 cc

1шт.

97204C1

COMPRESSOR

COMPRESSOR air conditioning, R12, Includes: Ref. P/N 83935C1 and 1 - 28, Serial Range: -JJF1034499

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

83935C1

CLUTCH

CLUTCH ASSEMBLY compressor, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

COIL field, 12 volt

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY drive, two groove, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

5

NSS

NOT SOLD SEPARAT

RING snap

1шт.

A49673

KIT

KIT service, clutch , Includes: Ref. 6 - 11, Serial Range: -JJF1034499

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap, clutch

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM clutch

1шт.

9

NSS

NOT SOLD SEPARAT

KEY shaft

1шт.

10

NSS

NOT SOLD SEPARAT

NUT retainer

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW retainer

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK compressor

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

14

NSS

NOT SOLD SEPARAT

HEAD service, Start Serial: JJF1034500

1шт.

14

1958959C1

COVER

HEAD service, Serial Range: -JJF1034499

1шт.

A49668

GASKET KIT

KIT gasket, valve plate, Includes: Ref. 16 and 17, Serial Range: -JJF1034499

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET cylinder head

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET cylinder

1шт.

18

A49669

SCREW,Cylinder

BOLT hex flange, special, Serial Range: -JJF1034499

5шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

O-RING, ID 7.65 mm, Start Serial: JJF1034500

1шт.

19

A49666

O-RING

O-RING, Serial Range: -JJF1034499

1шт.

20

A49667

PLUG

PLUG hex, Serial Range: -JJF1034499

1шт.

A49665

SEAL KIT

KIT service, compressor seals, Includes: Ref. 21 - 24, Serial Range: -JJF1034499

1шт.

21

A49664

CIRCLIP

RING snap, Serial Range: -JJF1034499

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING housing

1шт.

24

NSS

NOT SOLD SEPARAT

RING felt

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT seal, shaft

1шт.

26

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER dust, Serial Range: -JJF1034499

1шт.

27

1958961C1

COVER

COVER dust, clutch, Serial Range: -JJF1034499

1шт.

28

NSS

NOT SOLD SEPARAT

CLAMP lead wire

1шт.

Выбрано товаров: 47
