(9-102) - CAB, AIR CONDITIONING

Запчасти Case IH 5120 (9-102) - CAB, AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

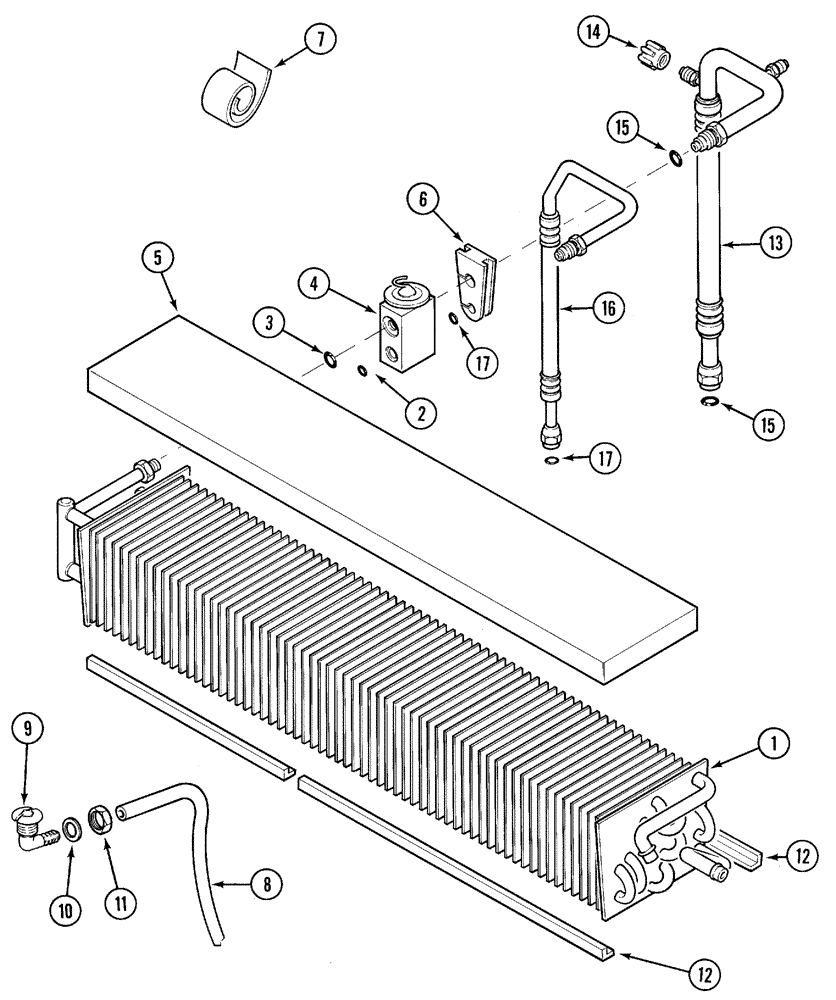

Схема запчастей Case IH 5120 - (9-102) - CAB, AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS
4
9
17
12
10
6
16
12
2
15
8
11
1
5
15
7
14
3
13
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1990757C1

EVAPORATOR

CORE ASSEMBLY - air conditioning and heater, Includes: Ref. 2 - 4

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 10.82 mm ID

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

1шт.

4

1990756C1

VALVE

- expansion (Compatible with R12 and R134A coolants)

1шт.

5

1977858C2

SEAL

SEAL - foam

1шт.

6

1331003C1

GROMMET

- rubber

1шт.

7

NSS

NOT SOLD SEPARAT

TAPE - insulation, 2440 mm, (Cut from 1954475C1)

4шт.

8

NSS

NOT SOLD SEPARAT

HOSE - condensate, 2290 mm, (Cut from 87769CX)

2шт.

9

1974764C1

FITTING

- drain, condensate hose

2шт.

10

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

11

1340438C1

NUT

- drain fitting

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - evaporator, 390 mm, (Cut from 1343842C1)

4шт.

13

1330788C1

HOSE

- assembly, suction, Includes: Ref. 14 and 15, Serial Range: -JJF1034499

1шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

13

127248A1

HOSE

- assembly, suction, Includes: Ref. 14 and 15, Start Serial: JJF1034500

1шт.

14

122553A1

CAP

- sealing, low side

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

1шт.

16

113163A1

A/C HOSE

HOSE - assembly, cab liquid, Includes: Ref. 17, Start Serial: JJF1034500

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

1шт.

16

1330789C1

HOSE

- assembly, cab liquid, Includes: Ref. 17, Serial Range: -JJF1034499

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

1954475C1

ROLL

TAPE - bulk, 2-1/2 (63.5) x 360 (9150) x 1/8 inch

1шт.

87769CX

LARGE HOSE

HOSE - rubber, bulk roll, 9/32 (7) ID x 1080 inch (27432 mm) long

1шт.

1343842C1

SEAL

SEAL - foam, bulk length (600 inch) 15240 mm

1шт.
