Запчасти Case IH 5120 (9-086) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

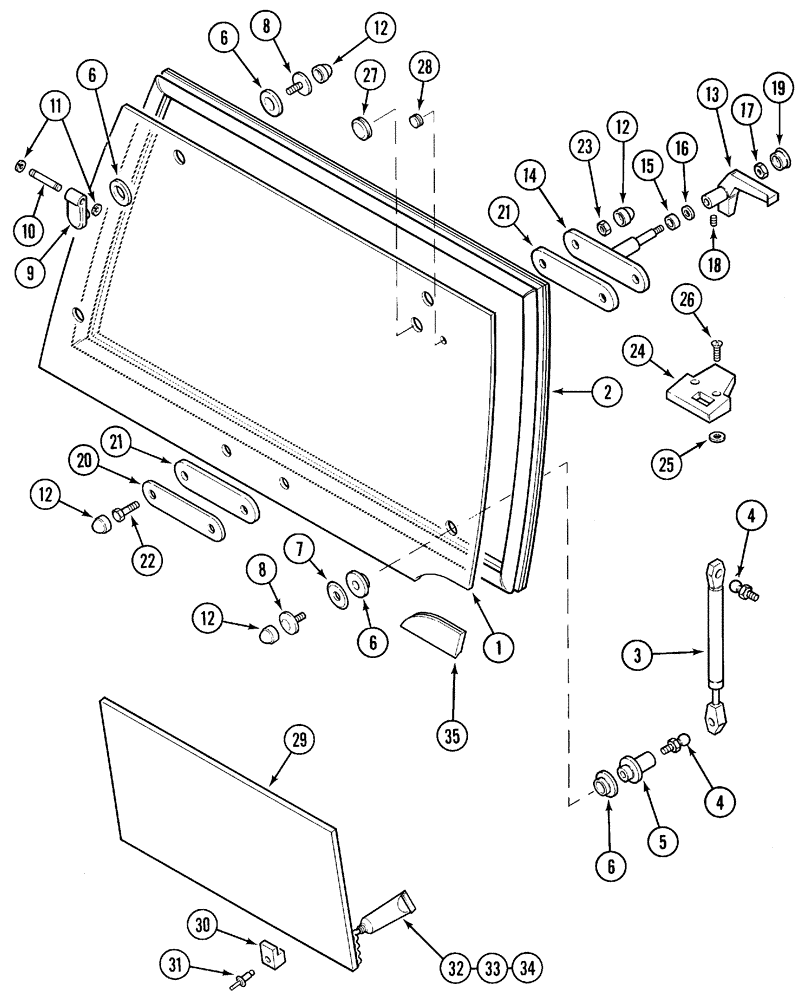

Схема запчастей Case IH 5120 - (9-086) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS
24
25
28
20
6
9
10
21
31
12
2
21
17
35
12
1
26
11
14
12
7
32
12
4
27
8
23
8
19
4
16
34
15
13
18
29
22
30
6
3
5
33
6
6

Артикул

Название

Примечание

Количество

1

127442A1

GLASS

- rear window, Start Serial: JJF1030000

1шт.

1

1330904C1

GLASS

- rear window, Serial Range: -JJF1029999

1шт.

2

121672A2

SEAL,3410mm L

SEAL - rear window

1шт.

3

1971235C2

GAS STRUT

CYLINDER - gas spring

2шт.

4

K303756

BALL STUD,M6 x 1

BALL END - M6

4шт.

5

K303541

BRACKET

-

2шт.

6

1535335C1

SPACER

1шт.

7

1535330C2

SEALING WASHER

- special, 6 mm

4шт.

8

1535313C1

CAP,Hex, M6 x 12mm

BOLT - hex, flange, 6 mm x 12mm, polyseal

4шт.

9

114322A2

HINGE

- window

2шт.

10

1535323C1

PIN,8mm OD x 78.5mm L

- large

8шт.

11

1535283C1

CIRCLIP

RING - snap

4шт.

12

K965671

CAP

-

8шт.

224730A1

HANDLE

- rear window, Includes: Ref. 13 - 19

1шт.

13

1340205C1

HANDLE

- rear window

1шт.

14

224732A1

PLATE ASSY.

PLATE ASSEMBLY - clamping

1шт.

15

1340206C1

RUBBER BUSHING

BUSHING - rubber

1шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

19

1340207C1

PLUG

- window hinge

1шт.

20

1340203C1

PLATE

- clamping

1шт.

21

1340208C1

RUBBER PAD

PAD - rubber

2шт.

22

97011C1

FLANGE BOLT,Hex, M6 x 25mm, Cl 8.8

BOLT - hex flange, special

2шт.

23

97005C1

FLANGE NUT

- hex flange, self-locking, special, 6 mm

2шт.

24

1340142C1

PLATE

- striker

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

26

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

- panhead, Phillips, 6 - 1.0 x 30 mm

2шт.

27

F66090

PLUG

- window, 29/32 inch diameter

1шт.

28

F66089

PLUG

- rear window

1шт.

29

1981934C1

GLASS

- lower rear, fixed

1шт.

30

1328410C1

CLIP

CLAMP - windshield upper

2шт.

31

1328414C1

RIVET,Pop, 4mm OD x 22mm L

- blind

2шт.

32

NSS

NOT SOLD SEPARAT

FLUID - cleaning, 20 ml, (Order 3404053R91)

1шт.

33

NSS

NOT SOLD SEPARAT

FLUID - glass primer, 20 ml, (Order 3404053R91)

1шт.

34

NSS

NOT SOLD SEPARAT

ADHESIVE - clear, 300 ml, (Order 3404053R91)

1шт.

35

127441A2

GROMMET

- implement access, Start Serial: JJF1030000

1шт.

3404053R91

PACKAGE

KIT - service, repair

1шт.

NSS

NOT SOLD SEPARAT

NOZZLE -

4шт.

NSS

NOT SOLD SEPARAT

SWAB -

1шт.

NSS

NOT SOLD SEPARAT

PAD - rubber

2шт.

NSS

NOT SOLD SEPARAT

PAD - cleaning

1шт.

NSS

NOT SOLD SEPARAT

WIRE - chicken

1шт.

NSS

NOT SOLD SEPARAT

FLUID - cleaning, 20 ml

1шт.

NSS

NOT SOLD SEPARAT

FLUID - glass primer, 20 ml

1шт.

NSS

NOT SOLD SEPARAT

ADHESIVE - clear, 300 ml

1шт.

Выбрано товаров: 46
