Запчасти Case IH 5120 (2-22) - AIR CONDITIONING PIPES, JJF1034500 AND AFTER (02) - ENGINE

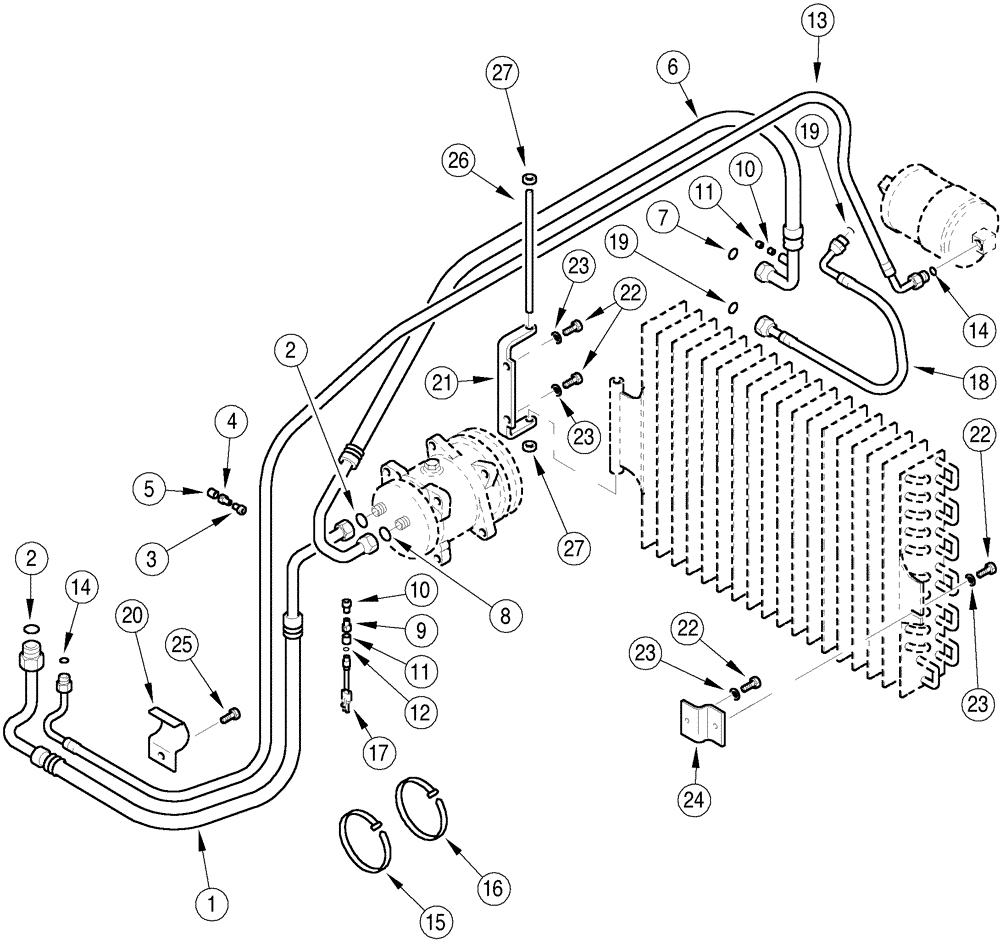

Схема запчастей Case IH 5120 - (2-22) - AIR CONDITIONING PIPES, JJF1034500 AND AFTER (02) - ENGINE
14
23
18
9
16
23
23
1
22
13
24
23
12
25
27
8
10
14
11
3
7
4
21
22
20
19
6
2
2
11
17
27
26
5
15
10
19
22

Артикул

Название

Примечание

Количество

1

127249A2

HOSE

air conditioning, suction, Includes: Ref. 2 - 5

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

2шт.

3

137328A1

PIPE FITTING

FITTING low side service port

1шт.

4

1250594C1

CORE

VALVE core

1шт.

5

122553A1

CAP

sealing, low side

1шт.

6

127247A3

HOSE

compressor to condensor, Includes: Ref. 7 - 12

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

10.82 mm ID

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

14.0 mm ID

1шт.

9

137329A1

PIPE FITTING

FITTING high side service port

2шт.

10

1250594C1

CORE

VALVE core

2шт.

11

122554A1

CAP

- sealing, high side

1шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

ID 7.65 mm

1шт.

13

113167A2

HOSE ASSY.

HOSE air conditioning, chassis liquid, Includes: Ref. 14

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

ID 7.65 mm

2шт.

15

3402979R2

BAND

STRAP cable tie

5шт.

16

3148767R2

COLLAR CLAMP

STRAP cable

6шт.

17

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE

1шт.

18

127246A1

HOSE

air conditioning, condensor to dryer, Includes: Ref. 19

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

ID 7.65 mm

2шт.

20

176264A1

CLAMP

air conditioning, hoses

1шт.

21

129466A1

SUPPORT

BRACKET hinge

1шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

23

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

flat, 8 mm

4шт.

24

129465A1

SUPPORT

BRACKET condenser

1шт.

25

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

1шт.

26

A184695

PIN

hinge

1шт.

27

100-1531

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

Выбрано товаров: 27
