Запчасти Case IH 5120 (9-066) - INSTRUMENT PANEL, CAB VERSION (09) - CHASSIS/ATTACHMENTS

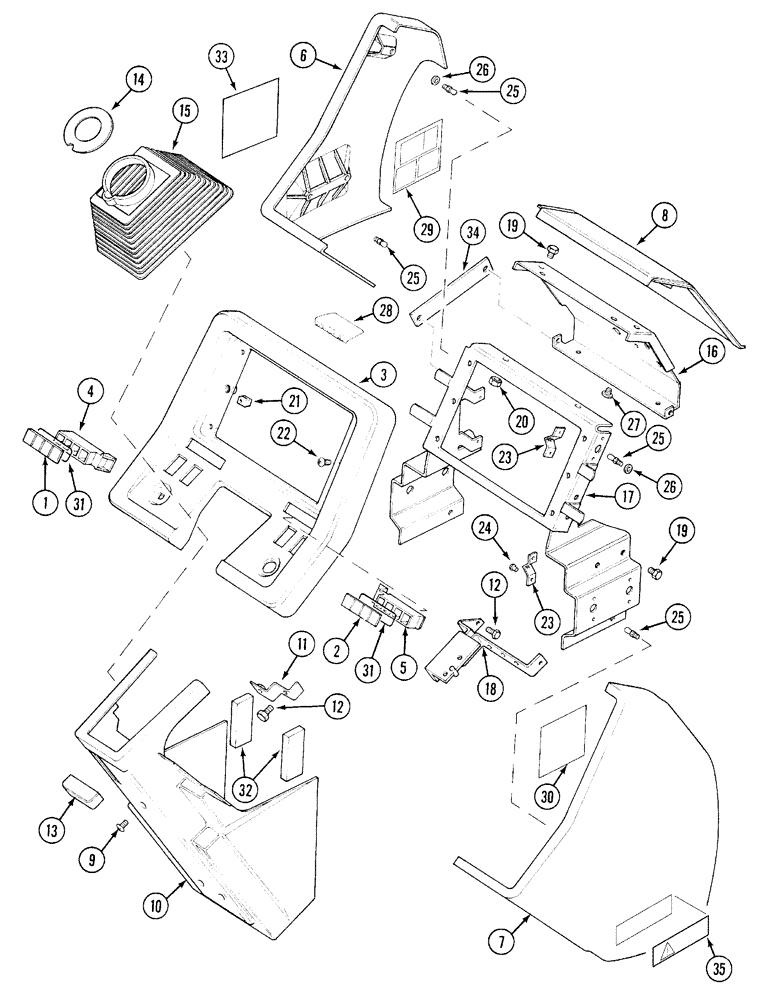

Схема запчастей Case IH 5120 - (9-066) - INSTRUMENT PANEL, CAB VERSION (09) - CHASSIS/ATTACHMENTS
17
3
14
25
27
5
24
25
22
10
15
2
18
26
1
26
12
12
31
32
25
25
19
7
21
11
19
9
13
30
16
4
23
20
33
6
35
8
23
29
34
28
31

Артикул

Название

Примечание

Количество

1

1340128C2

DECAL

- instrument panel, left

1шт.

2

127424A1

DECAL

- instrument panel, right, Start Serial: JJF1030000

1шт.

2

1340127C2

DECAL

- instrument panel, right, Serial Range: -JJF1029999

1шт.

3

1977854C4

PANEL

- instrument face

1шт.

4

1977909C1

CASE

BAR - light, left

1шт.

5

1977910C1

CASE

BAR - light, right

1шт.

6

1977841C2

PANEL, INSTRUMENTS

PANEL - shroud, left

1шт.

7

1977840C2

PANEL, INSTRUMENTS

PANEL - shroud, right

1шт.

8

1977523C1

PANEL, INSTRUMENTS

PANEL - instrument console front

1шт.

9

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

SCREW - pan head, special, 6 - 1.0 x 12 mm

3шт.

10

1977519C3

PADDING

PANEL - steering column cover

1шт.

11

1977469C1

HOLDER

BRACKET - cover mounting

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

13

REF

INSTRUCTION

KNOB - tiltable steering release

1шт.

14

1977448C2

WASHER

- boot

1шт.

15

1977839C2

BOOT

- assembly, steering column

1шт.

16

1974761C4

SUPPORT

BRACKET - instrument panel, front

1шт.

17

1977728C5

SUPPORT ASSY.

SUPPORT - assembly, instrument panel

1шт.

18

1958600C3

SUPPORT ASSY.

SUPPORT - assembly, tilt lever stop

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

10шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

21

131-606

SPRING NUT,Tinn, U, #10

- U-type, No. 10

2шт.

22

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

2шт.

23

1961435C1

LATCH

- cab skirt spring

6шт.

24

151-553

RIVET,Pop, 1/8" x .337"

12шт.

25

1977929C1

STUD,M5 x 0.8

- ball

6шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

27

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

- panhead, Phillips, 5 - 0.8 x 10 mm

2шт.

28

1340049C1

SYMBOLS

EMBLEM -

1шт.

29

230644A1

DECAL

- fuse chart, left English, Start Serial: JJF1050700

1шт.

29

125123A2

DECAL

- fuse chart, left, English, Serial Range: JJF1015046-JJF1050699

1шт.

29

1344197C1

DECAL

- fuse chart, left, English, Serial Range: -JJF1015045

1шт.

29

230645A1

DECAL

- fuse chart, left, French, Start Serial: JJF1050700

1шт.

29

125122A2

DECAL

- fuse chart, left,French, Serial Range: JJF1015046-JJF1050699

1шт.

29

1344199C1

DECAL

- fuse chart, left, French, Serial Range: -JJF1015045

1шт.

30

130524A1

DECAL

- fuse chart, right, English, Start Serial: JJF1015046

1шт.

30

1344198C1

DECAL

- fuse chart, right, English, Serial Range: -JJF1015045

1шт.

30

125215A1

DECAL

- fuse chart, right, French, Start Serial: JJF1015046

1шт.

30

1344200C1

DECAL

- fuse chart, right, French, Serial Range: -JJF1015045

1шт.

31

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

, Serial Range: -JJF1015045

2шт.

32

NSS

NOT SOLD SEPARAT

STRIP - foam, 13 x 38 x 100mm (Order 1974883CX and, Serial Range: cut-length)

2шт.

1974883CX

SEAL

- bulk, adhesive-backed, 13 x 38 x 15240 mm long

1шт.

33

1531153C1

DECAL

-

1шт.

34

1533879C1

SUPPORT

BAR - support, Serial Range: -JHJF1040799

2шт.

35

REF

INSTRUCTION

DECAL - Forward / Neutral / Reverse, (See Figure 9-160)

1шт.
