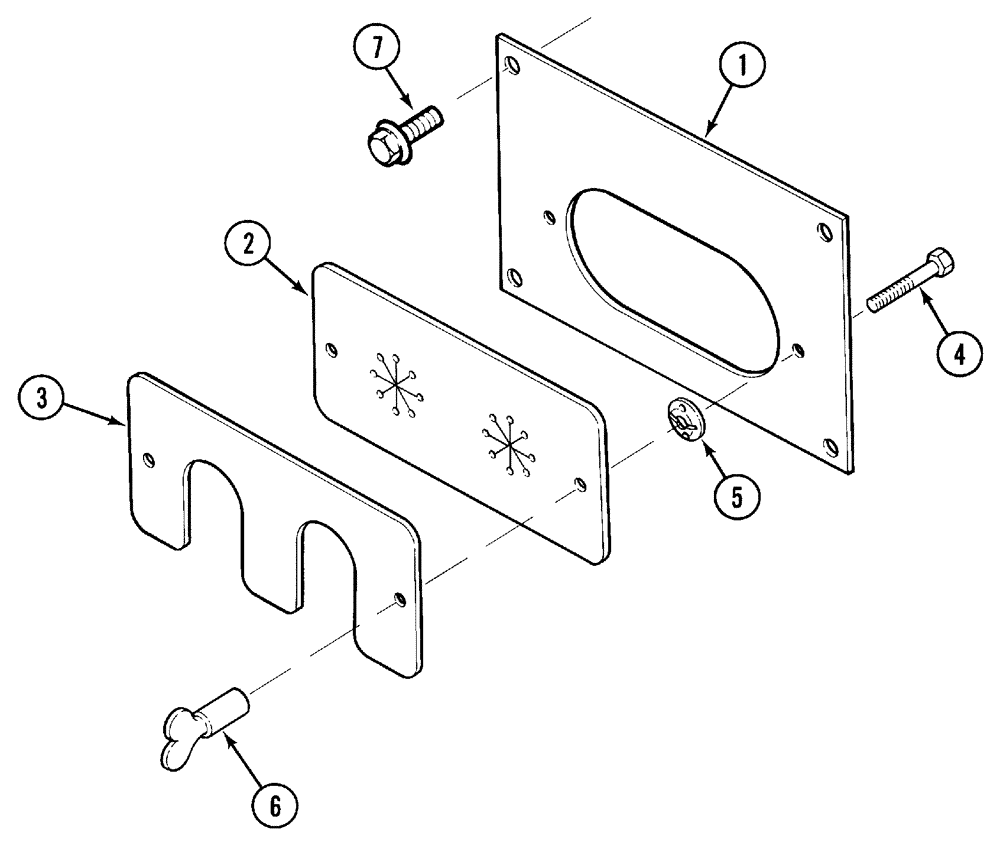

Запчасти Case IH 5120 (9-058) - PANEL, CAB ELECTRIC ACCESS (09) - CHASSIS/ATTACHMENTS

1

1344782C1

LARGE PLATE

PLATE - access (Remove factory fitted plate)

1шт.

2

A165354

SEAL

- lower rear window

2шт.

3

A165352

PLATE

- lower rear window

1шт.

4

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

5

A165523

FASTENER

- screw retaining

2шт.

6

129-500

WING NUT,#10-32

NUT - wing, No. 10

2шт.

7

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

- hex flange, 6 x 12 mm

4шт.
