Запчасти Case IH 5120 (9-054) - SIDE PANELS AND TOP SHEET, 5120, MID, PRODUCTION (09) - CHASSIS/ATTACHMENTS

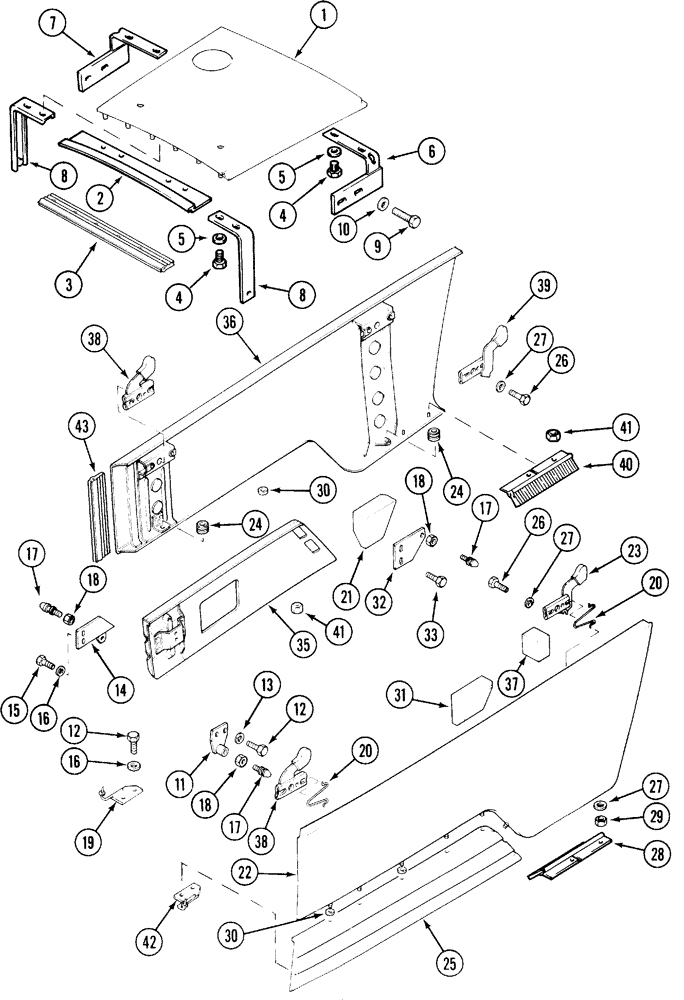

Схема запчастей Case IH 5120 - (9-054) - SIDE PANELS AND TOP SHEET, 5120, MID, PRODUCTION (09) - CHASSIS/ATTACHMENTS
7
17
17
4
20
30
6
8
26
16
2
21
13
18
12
23
3
18
28
30
18
27
35
33
40
31
5
29
41
16
42
11
10
19
12
32
17
4
1
26
15
38
22
25
24
20
24
27
27
38
43
41
36
5
39
14
8
37
9

Артикул

Название

Примечание

Количество

1

1532184C4

HOOD

SHEET - top, rear

1шт.

Reference item #1, 1532184C4 sheet for mid production, there are 2 brackets sticking out on end towards where #1 is circled, these brackets are not on 1531473C1 sheet for early production. cam djo 6/27/01, see page 9-50

1шт.

2

1531368C1

SUPPORT

- assembly

1шт.

3

1531455C2

SEAL SHEET

- top sheet rear

1шт.

4

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

6

T104211

BRACKET

- front, right

1шт.

7

T104214

BRACKET

- front, left

1шт.

8

T102158

BRACKET

- rear

2шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

10

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

2шт.

11

1530887C2

SUPPORT

BRACKET -

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.

14

T102353

BRACKET

- left lock pin

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

6шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

8шт.

17

1333402C1

SCREW,M8 x 1.25 x 20mm

PIN - lock

4шт.

18

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

19

1531851C1

SUPPORT

- left

1шт.

20

T101855

SPRING

-

4шт.

21

1533885C2

SEAL

FOAM - side panel, left

1шт.

22

1531356C2

PANEL, SIDE

SHEET - side, right

1шт.

23

1531054C1

LOCK

- front, right

1шт.

24

1333276C1

GROMMET

-

4шт.

25

1533799C1

PANEL, SIDE

SCREEN - side, right

1шт.

26

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

8шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

28

T103611

BRUSH, COMMUTATOR

SEAL - right

1шт.

29

825-1406

NUT,M6, Cl 8

8шт.

30

T101932

ROLLER

-

12шт.

31

1533886C2

SEAL

FOAM - side panel, right

1шт.

32

1533549C1

SUPPORT

BAR - front lock pin

2шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

35

1531858C2

PANEL, SIDE

SCREEN - side, left

1шт.

36

1531856C2

PANEL, SIDE

SHEET - side, left

1шт.

37

1531472C2

SEAL

-

2шт.

38

1533001C1

LOCK

- rear

2шт.

39

1531055C1

LOCK

- front, left

1шт.

40

T103610

SEAL

- left

1шт.

41

825-1406

NUT,M6, Cl 8

8шт.

42

1531848C1

SUPPORT

- side screen, right

1шт.

43

1531459C2

SEAL

- side panel, rear

2шт.

Выбрано товаров: 43
