Запчасти Case IH 5120 (9-050) - SIDE PANELS AND TOP SHEET, 5120, EARLY PRODUCTION (09) - CHASSIS/ATTACHMENTS

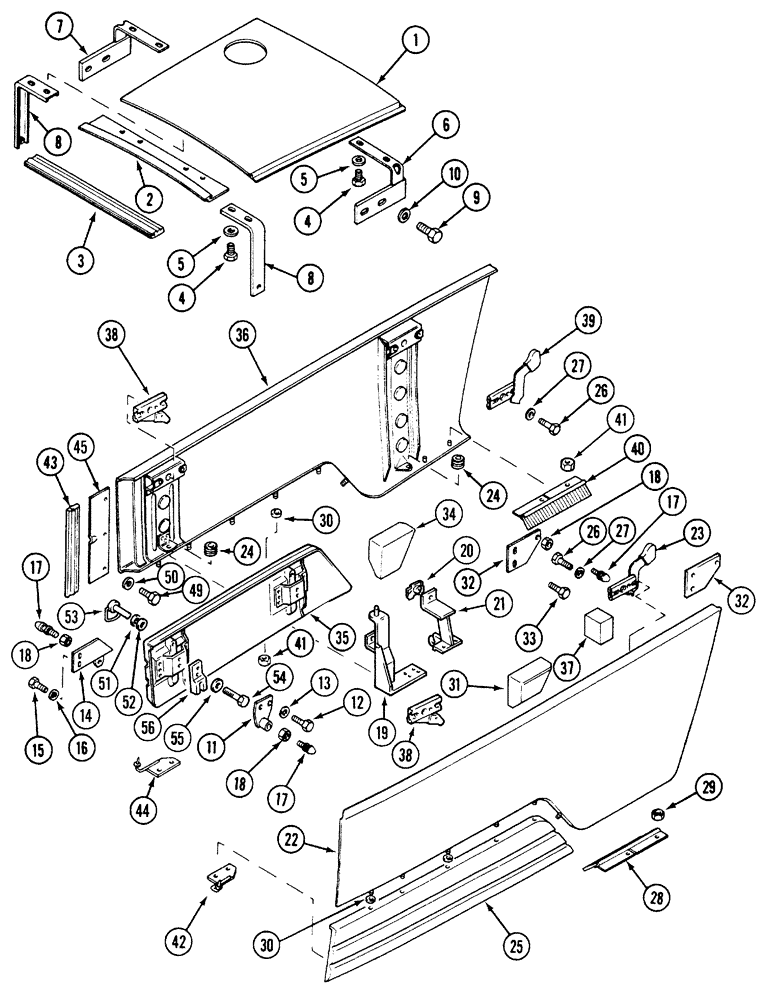

Схема запчастей Case IH 5120 - (9-050) - SIDE PANELS AND TOP SHEET, 5120, EARLY PRODUCTION (09) - CHASSIS/ATTACHMENTS
22
49
44
13
10
9
20
31
50
2
5
41
18
4
16
12
23
3
33
8
29
32
52
27
26
56
8
53
25
45
30
42
55
26
24
34
38
30
17
4
43
18
38
36
51
32
24
35
11
6
17
18
21
17
1
27
19
41
15
5
37
28
14
54
39
7
40

Артикул

Название

Примечание

Количество

1

1531473C1

SHEET

- top, rear

1шт.

1

1533866C3

HOOD

SHEET - top, rear (Version with downswept exhaust)

1шт.

3

1531455C2

SEAL SHEET

- top sheet rear

1шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

6

T103913

HOLDER

BRACKET - front, right

1шт.

7

T103918

HOLDER

BRACKET - front, left

1шт.

8

T102158

BRACKET

- rear

2шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

10

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

2шт.

11

1530887C2

SUPPORT

BRACKET -

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.

14

T102353

BRACKET

- left lock pin

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

6шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

8шт.

17

1333402C1

SCREW,M8 x 1.25 x 20mm

PIN - lock

4шт.

18

933618R1

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

19

T101822

SUPPORT ASSY.

SUPPORT - rear, left

1шт.

20

T101944

NUT

- spring

2шт.

21

T102555

BRACKET

- front, left

1шт.

22

1534273C2

PANEL ASSY.

SHEET - side, right

1шт.

23

1531054C1

LOCK

- front, right

1шт.

24

1333276C1

GROMMET

-

4шт.

25

1533799C1

PANEL, SIDE

SCREEN - side, right

1шт.

26

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

8шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

28

T103611

BRUSH, COMMUTATOR

SEAL - right

1шт.

29

825-1406

NUT,M6, Cl 8

6шт.

30

T101932

ROLLER

-

12шт.

31

1533886C2

SEAL

FOAM - side panel, right

1шт.

32

T102652

BRACKET

BAR - front lock pin

2шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

34

1533885C2

SEAL

FOAM - side panel, left

1шт.

35

T102279

PANEL, SIDE

SCREEN - side, left

1шт.

36

1534274C2

PANEL ASSY.

SHEET - side, left

1шт.

37

1531472C2

SEAL

-

2шт.

38

1531053C1

PANEL, SIDE

LOCK - rear

2шт.

39

1531055C1

LOCK

- front, left

1шт.

40

T103610

SEAL

- left

1шт.

41

825-1406

NUT,M6, Cl 8

6шт.

42

1531851C1

SUPPORT

- left

1шт.

43

1531459C2

SEAL

- side panel, rear

2шт.

44

1531848C1

SUPPORT

- side screen, right

1шт.

45

1531221C1

PLATE

- seal retaining

2шт.

49

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

6шт.

50

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

51

T101943

WASHER

-

2шт.

52

T101945

FASTENER

-

2шт.

53

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

Reference item , #53 bolt, if you need a pin like the one illustrated with ring on head, order 1531734C1 pin, used on early production, cam djo 3/15/01

1шт.

54

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

55

T101894

HOLDER

- side screen, right

2шт.
