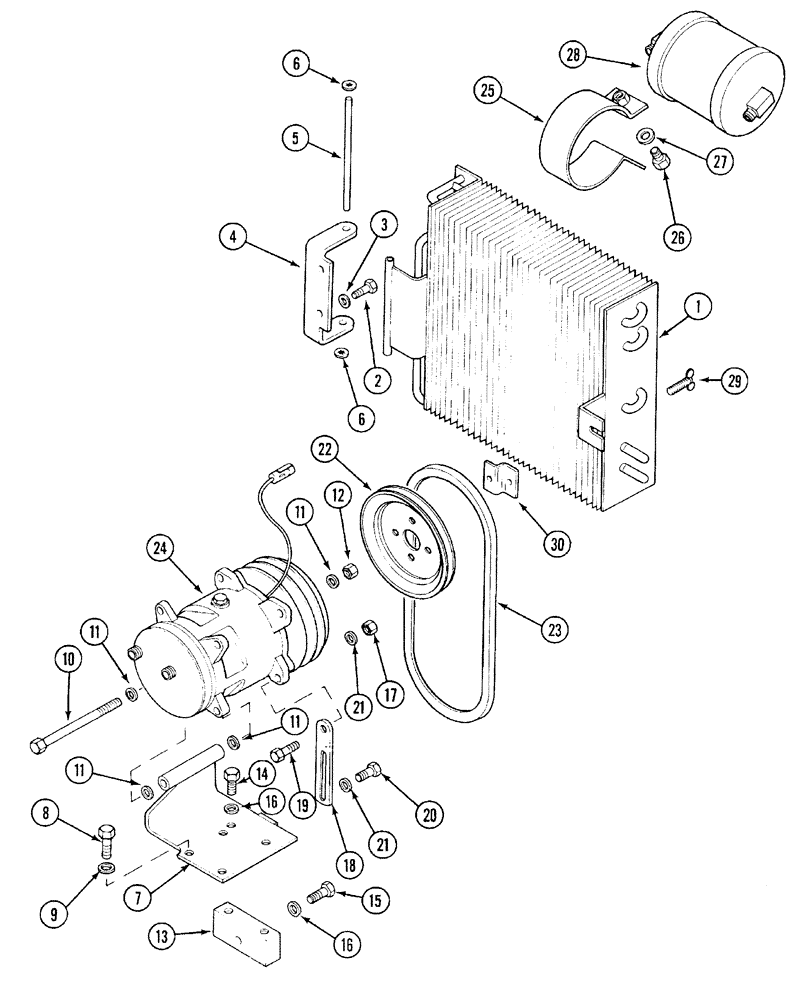

Запчасти Case IH 5120 (2-18) - AIR CONDITIONING, COMPRESSOR, CONDENSOR AND DRIER (02) - ENGINE

1

127270A1

CONDENSER

air conditioning, Start Serial: JJF1034500

1шт.

1

1335209C1

CONDENSER

air conditioning, Serial Range: -JJF1034499

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm, Start Serial: JJF1034500

2шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm, Serial Range: -JJF1034499

3шт.

3

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

flat, 8 mm

3шт.

4

129466A1

SUPPORT

BRACKET hinge, Start Serial: JJF1034500

1шт.

4

A189060

BRACKET

SUPPORT hinge, Serial Range: -JJF1034499

1шт.

5

A184695

PIN

hinge

1шт.

6

100-1531

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

7

A189290

SUPPORT

compressor mounting

1шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 35 mm

3шт.

9

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

bracket mounting

1шт.

10

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

hex, 10 - 1.5 x 130 mm

1шт.

11

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

plain, 10.5 mm

4шт.

12

825-1410

NUT,M10, Cl 8

1шт.

13

A184618

BRACE

compressor bracket

1шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

16

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

plain, 10.5 mm

3шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

84716C1

SUPPORT

STRAP adjusting

1шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

21

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

plain, 10.5 mm

2шт.

22

A189155

PULLEY

compressor drive

1шт.

23

A184652

V-BELT,12.70 mm W x 1017.00 mm L

Air Conditioning 12.70 mm W x 1017.00 mm L

1шт.

24

REF

INSTRUCTION

COMPRESSOR, see Figure: 2-24

1шт.

25

T102980

CLAMP

BRACKET receiver/dryer

1шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

27

T103390

WASHER

spacer, 6 mm, Start Serial: JJF1034500

2шт.

27

T103390

WASHER

spacer, 6 mm, Serial Range: -JJF1034499

1шт.

28

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER air conditioning

1шт.

29

905855R1

SCREW,Wing, M8 x 12mm

BOLT wing, 8 x 12 mm

1шт.

30

129465A1

SUPPORT

BRACKET condenser, Start Serial: JJF1034500

1шт.
