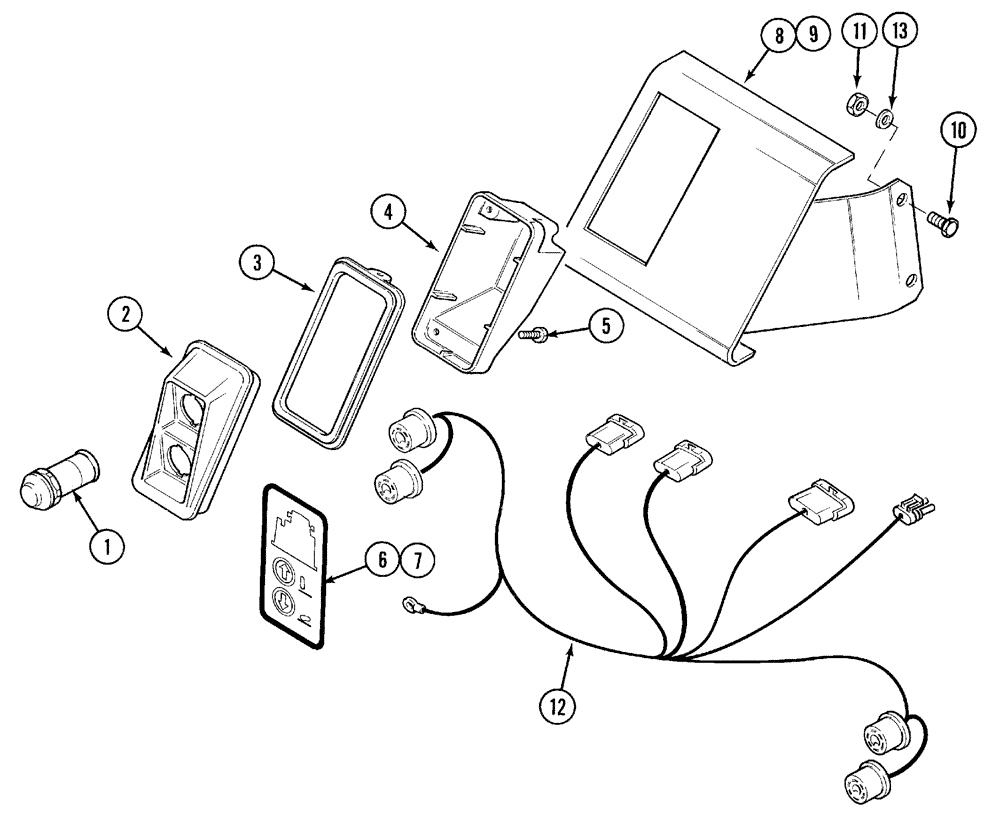

Запчасти Case IH 5120 (9-024) - REMOTE CONTROLS HITCH (09) - CHASSIS/ATTACHMENTS

1

1964848C1

SWITCH, THREE POINT

SWITCH - hitch control

4шт.

2

T103902

HOLDER

- switch, hitch control

2шт.

3

T103903

GASKET

GASKET - holder, hitch switch

2шт.

4

1534966C1

COVER

- holder

2шт.

5

758-2

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW, SELF TAPPING, Pan Hd, M4.2 x 16

8шт.

6

T103906

IDEOGRAM

DECAL - hitch control switch, right

1шт.

7

T104077

IDEOGRAM

DECAL - hitch control switch, left

1шт.

8

132000A1

SUPPORT ASSY.

SUPPORT - left

1шт.

9

131999A1

SUPPORT ASSY.

SUPPORT - right

1шт.

10

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

4шт.

11

825-1410

NUT,M10, Cl 8

4шт.

12

1987622C2

HARNESS

- SHR remote control

1шт.

13

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

4шт.
