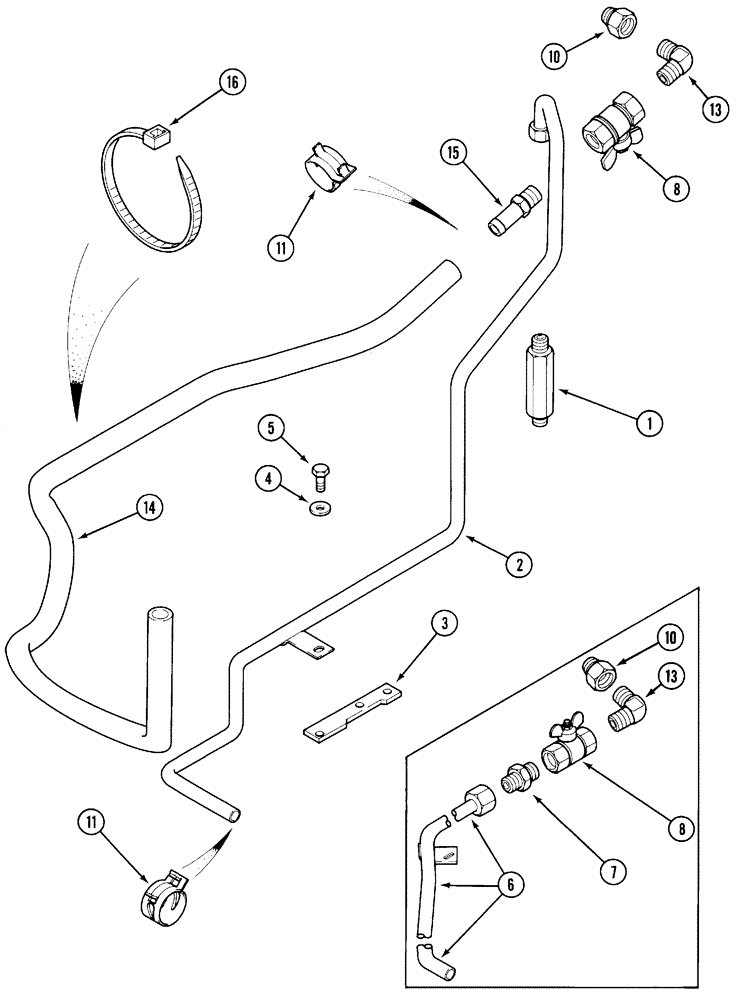

Запчасти Case IH 5120 (2-16) - HEATER HOSES (02) - ENGINE

1

T102832

ADAPTER

CONNECTOR straight, 1/2"

1шт.

2

T104603

TUBE,0.625" OD x 24.21, 16.93" L

heating, Serial Range: -JKJ57063

1шт.

2

1530616C2

HEATER TUBE

TUBE heating, Start Serial: JKJ57064

1шт.

3

T104601

BRACKET

heating tube

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -JKJ57063

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 16 x 1.6 mm, Start Serial: JKJ57064

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

, Serial Range: -JKJ57063

1шт.

6

T104604

TUBE,0.625" OD x 16.93, 9.45" L

heating, Serial Range: -JKJ57063

1шт.

7

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER flared, 37 deg, 7/8 tube x 3/8-18 NPTF, Serial Range: -JKJ57063

1шт.

8

T102597

COCK

STOP cock

1шт.

9

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER flared, 1/2 tube x 3/8-18 NPTF, Serial Range: -JKJ57063

1шт.

10

T102823

REDUCER FITTING

REDUCER male, 1/2-3/8"

1шт.

11

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

13

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

90 degree, flared, 1/2 tube x 3/8-18" PT, Serial Range: -JKJ57063

1шт.

13

217-1229

ELBOW,90 Degree, 3/8"-18 Male

90 degree, pipe fitting, 3/8", tube, Start Serial: JKJ57064

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE supply, (Order: 97252CX, 2740 mm, Start Serial: JKJ57064

1шт.

15

1534497C1

ADAPTER

CONNECTOR stop cock, Start Serial: JKJ57064

1шт.

16

3148767R2

COLLAR CLAMP

STRAP cable, Start Serial: JKJ57064

6шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600", 15240 mm

1шт.
