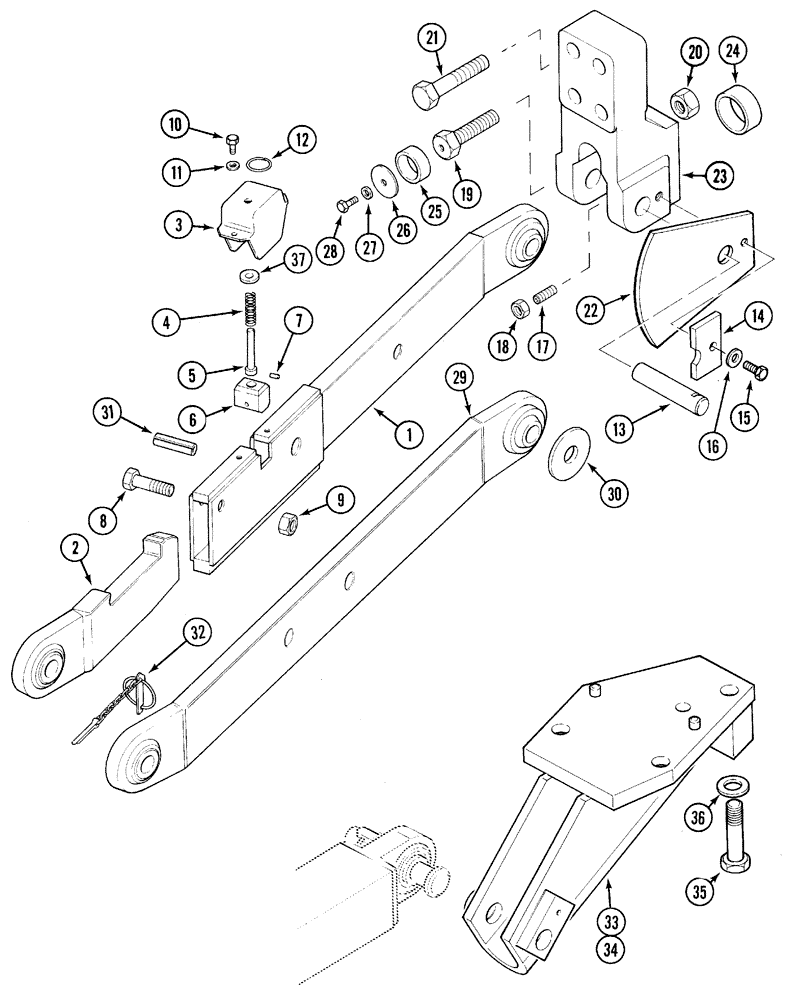

Запчасти Case IH 5120 (9-010) - HITCH, LIFT LINKS, LOWER (09) - CHASSIS/ATTACHMENTS

1

113873A1

LOWER LINK

LINK - lower lift,telescopic, front left

1шт.

1

113874A1

LOWER LINK

LINK - lower lift, telescopic front right

1шт.

2

1965348C1

LOWER LINK

LINK - lower lift, rear left

1шт.

2

1965385C1

LOWER LINK

LINK - lower lift, rear right

1шт.

120974A1

LATCH ASSY.

LATCH ASSEMBLY - lower link, Includes: Ref. 3, 4, 5, 6, 10, 11 and 12, Start Serial: JJF1028064

2шт.

3

120975A1

COVER

- latch, Start Serial: JJF1028064

1шт.

4

113774A1

SPRING

- latch, Start Serial: JJF1028064

1шт.

120976A1

PIN

BLOCK ASSEMBLY - latch, Includes: Ref. 5 and 6, Start Serial: JJF1028064

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - clevis, Start Serial: JJF1028064

1шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - latch, Start Serial: JJF1028064

1шт.

3

1965343C2

COVER

- latch, Serial Range: -JJF1028063

1шт.

No Longer Available. Order 120974A1

1шт.

4

1331904C1

SPRING

- latch, Serial Range: -JJF1028063

2шт.

5

1965345C1

CLEVIS PIN

PIN - clevis, Serial Range: -JJF1028063

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - latch (Replaced By 120974A1), Serial Range: -JJF1028063

1шт.

7

1974038C1

PIN

- latch (Replaced 102974A1), Serial Range: -JJF1028063

2шт.

8

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10-1.5 x 65 mm, class 10.9, Serial Range: -JJF1028063

2шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10, Serial Range: -JJF1028063

2шт.

10

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

4шт.

11

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm, hardened

4шт.

12

1965556C1

RING

- split

2шт.

13

109617A2

HITCH PIN,28.6mm OD x 140mm L

PIN - assembly, link pivot

2шт.

14

109616A1

LARGE PLATE

PLATE - retaining

2шт.

15

606-12040

BOLT,Hex, M12 x 40mm, Cl 10.9

- 12 mm x 40mm

2шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

17

1982161C1

ADJUSTMENT SCREW

- set, cup point, 12 mm

2шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

19

1960158C2

BOLT,M20-1 x 90mm

- stop adjusting, 20 mm x 90mm

2шт.

20

1960157C2

NUT

- 20mm

2шт.

21

854-20095

BOLT,Hvy Hex, M20 x 95mm, Cl 10.9

- heavy hex flange, 20 - 2.5 x 95 mm, Class 10.9

8шт.

22

112446A1

LARGE PLATE

PLATE - retaining

2шт.

Old sytle with pin welded to it was 1965668C3, now subs to new style parts

1шт.

23

1348144C1

SUPPORT

BRACKET - spring, draft sensing

2шт.

24

1960198C1

SEAL

- draft sensor

2шт.

25

1960199C1

SEAL

- tension stop

2шт.

26

1960196C1

WASHER

PLATE - retaining

2шт.

27

95-32025

COPPER WASHER,1/4" x 1/2" x .049"

WASHER - copper, 1/4 x 1/2 x 3/64 inch

2шт.

28

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

2шт.

29

1965579C5

LOWER LINK

LINK - lower lift, rigid

2шт.

30

1974394C1

SPACER

- lift link, lower

2шт.

31

932759R1

LOCK PIN,M12 x 45, Slotted

PIN - slotted, 12 mm x 45mm, Start Serial: JJF1028064

2шт.

32

1982023C1

LINCH PIN,10.5mm OD

PIN - linch, with chain

2шт.

33

114418A2

SUPPORT ASSY.

BRACKET - stabilizer, right (Hi-Clear)

1шт.

34

1533545C2

SUPPORT ASSY.

BRACKET - stabilizer, left (Hi-Clear)

1шт.

35

628-20050

BOLT,Hex, M20 x 50mm, Cl 10.9

BOLT - hex, full threads, 20 - 2.5 x 50 mm, Serial Range: -JJF1029999

3шт.

35

861-20060

HEX SOC SCREW,M20 x 60mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 60 mm, Class 12.9, Start Serial: JJF1030000

4шт.

35

862-20050

HEX SOC SCREW,M20 x 50mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 50 mm, Class 12.9, Serial Range: -JJF1029999

1шт.

35

861-20110

HEX SOC SCREW,M20 x 110mm, Cl 12.9

SCREW - hex socket, 2 - 2.5 x 110 mm, Class 12.9, Start Serial: JJF1030000

2шт.

36

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

4шт.

37

1348138C1

SPRING WASHER

- spring latch

2шт.
