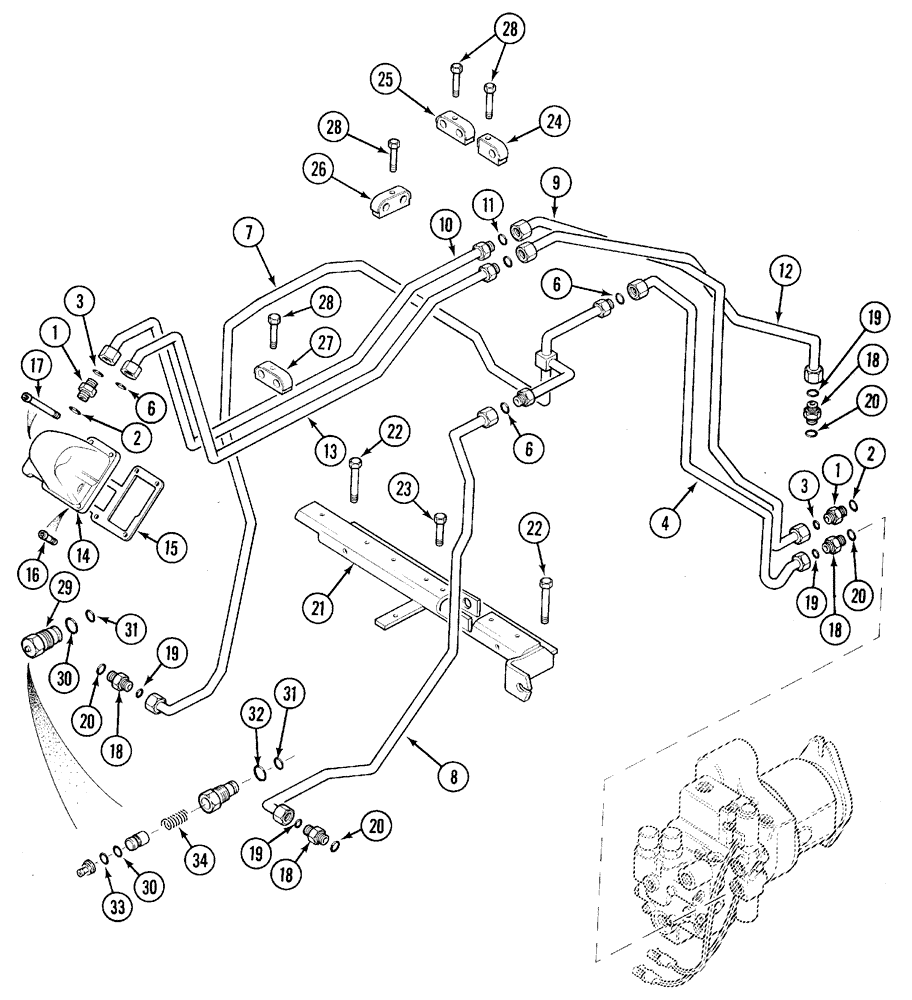

Запчасти Case IH 5120 (8-68) - HYDRAULIC, DRAFT AND POSITION SENSING LINES (08) - HYDRAULICS

1

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

CONNECTOR - straight, 13/16-16 face x 9/16-18 boss, Includes: Ref. 2 and 3

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

1533808C1

PIPE

- draft, T1 hitch valve

1шт.

4

1531747C1

HYD TUBE

PIPE - draft, T1 hitch valve

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

7

1530984C1

PIPE

- X1, rear axle, left, Start Serial: JKA68007

1шт.

7

1533293C1

PIPE ASSY.

PIPE - X1, rear axle, left, Serial Range: JKA36740-JKA68006

1шт.

7

1533013C1

PIPE ASSY.

PIPE - X1, rear axle, left, Use with T104318, Serial Range: -JKA36739

1шт.

7

T104318

PIPE

- X1, SHR, Use with 1533013C1, Serial Range: -JKA36739

1шт.

8

1530983C1

PIPE

- X1, rear axle, right, Start Serial: JKA68007

1шт.

8

1534611C1

PIPE

- X1, rear axle, right, Serial Range: JKA53517-JKA68006

1шт.

8

1533012C1

PIPE ASSY.

PIPE - X1, rear axle, right, Serial Range: JKA36740-JKA53516

1шт.

8

T102942

PIPE

- X1, rear axle, right, Serial Range: -JKA36739

1шт.

9

1533809C1

PIPE

- X2

1шт.

10

192871A1

PIPE

- X2, position control, rear

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

1531790C1

HYD TUBE

TUBE - X4, front

1шт.

13

192872A1

PIPE

- X4, rear

1шт.

14

93154C4

SENSOR

- assembly, position control

1шт.

15

1978088C2

GASKET

- position sensor

1шт.

16

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

- hex socket, 6 - 1.0 x 20 mm, class 12.9

4шт.

17

861-6050

HEX SOC SCREW,M6 x 50mm, Cl 12.9

- hex socket, 6 - 1.0 x 50 mm, class 12.9

1шт.

18

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 19 and 20 11/16"-16 ORFS x 9/16"-18 ORB

4шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

120653A1

SUPPORT ASSY.

BRACKET - cable

1шт.

22

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

24

T101169

CLAMP

- pipe

1шт.

25

T103149

CLAMP

- pipe, double

1шт.

26

T103147

FIXING BRACKET

CLAMP - pipe, double

1шт.

27

T103148

CLAMP

- pipe, double

1шт.

28

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

4шт.

29

1335813C3

VALVE

SENSOR - draft sensing

2шт.

NSS

NOT SOLD SEPARAT

KIT - seal repair, Includes: Ref. 30 - 34

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

3866923C1

O-RING,3mm Thk x 14mm ID, Cl 5

- seal, class 5, 14 mm x 3mm

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL -

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING -

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
