Запчасти Case IH 5120 (8-62) - HYDRAULIC, REMOTE VALVE ASSEMBLY, WITH TWO CHECKS, CONTD (08) - HYDRAULICS

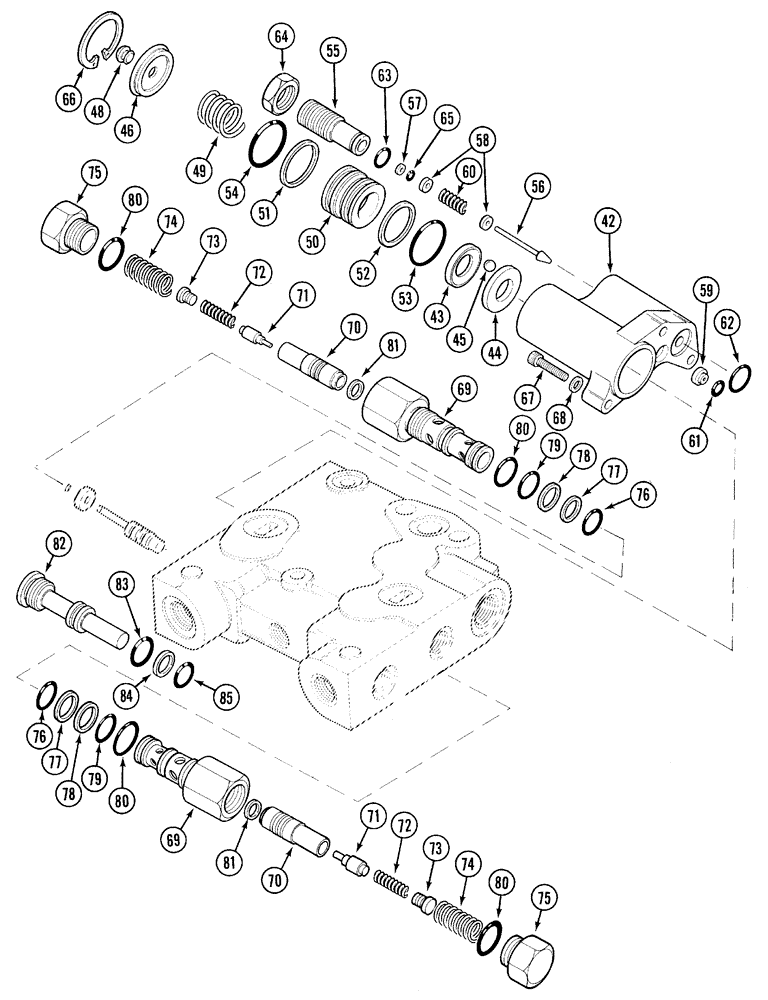

Схема запчастей Case IH 5120 - (8-62) - HYDRAULIC, REMOTE VALVE ASSEMBLY, WITH TWO CHECKS, CONTD (08) - HYDRAULICS
76
81
66
51
75
70
71
49
43
62
76
81
74
72
46
48
42
61
80
53
69
74
80
52
50
72
56
57
78
63
83
82
68
80
84
44
70
75
45
58
73
78
71
59
85
79
65
54
79
77
67
77
73
60
69
55
80
64

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

VALVE - assembly, auxiliary hydraulic, Includes: Ref. 42 - 85

1шт.

1980160C2

SPOOL

DETENT - assembly, Includes: Ref. 42 - 66

1шт.

42

1976957C1

COVER ASSY

COVER - detent

1шт.

43

G108911

WASHER

- detent

1шт.

44

G108912

WASHER

- detent

1шт.

45

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Class 24

8шт.

321361A1

RETAINER

- assembly, Includes: Ref. 46 - 48

1шт.

46

1341975C2

RETAINER - detent

1шт.

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

- retainer

1шт.

48

G107780

VALVE, CHECK

PLUG - valve

1шт.

49

G110152

SPRING

- detent

1шт.

G108921

PISTON

ASSEMBLY - detent, Includes: Ref. 50 - 54

1шт.

50

G108908

PISTON

- detent

1шт.

51

G108728

BACK-UP RING

RING - backup, large

1шт.

52

G108922

BACK-UP RING

RING - backup, small

1шт.

53

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

G110300

PLUG

- adjusting, pilot relief

1шт.

56

G110279

VALVE POPPET

POPPET - pilot relief

1шт.

57

G110289

BACK-UP RING

RING - backup

1шт.

58

G110281

SPRING CUP

WASHER - spring retainer

2шт.

59

G108918

ORIFICE

WASHER - orifice

1шт.

60

G109275

SPRING

- pilot

1шт.

61

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

62

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

63

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

64

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8 inch NF

1шт.

65

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

66

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

67

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, Hex Soc Hd, #10-24 x 1"

3шт.

68

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64") #10

3шт.

1971801C2

CHECK VALVE

VALVE - check, Includes: Ref. 69 - 85

1шт.

69

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

70

NSS

NOT SOLD SEPARAT

POPPET - main

1шт.

71

NSS

NOT SOLD SEPARAT

POPPET - pilot

1шт.

72

1957817C1

VALVE SPRING

SPRING - poppet

1шт.

73

1957964C1

RETAINER

- spring

1шт.

74

1957965C1

VALVE SPRING

SPRING - main

1шт.

75

NSS

NOT SOLD SEPARAT

CAP - check valve

1шт.

76

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- 7/16 ID x 1/16 inch wide

1шт.

77

G110287

BACK-UP RING

RING - backup, inner

1шт.

78

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

RING - back-up, outer

1шт.

79

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

81

G108724

BACK-UP RING

RING - back-up

1шт.

1971475C1

PLUG

- assembly, lock check

1шт.

82

NSS

NOT SOLD SEPARAT

PLUG - lock check (Order 1971475 C1)

1шт.

83

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

84

G110287

BACK-UP RING

RING - backup, inner

1шт.

85

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- poppet

1шт.

Выбрано товаров: 50
