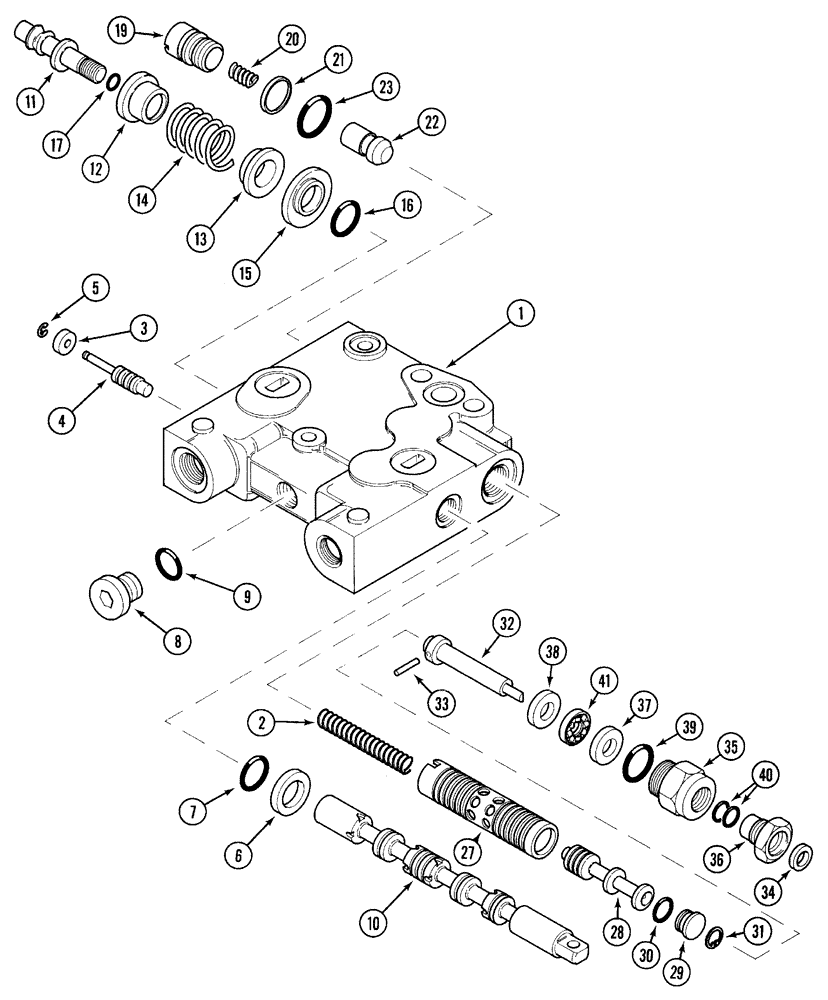

Запчасти Case IH 5120 (8-52) - HYDRAULIC, REMOTE PRIORITY VALVE ASSEMBLY (08) - HYDRAULICS

1980448C8

DISTRIBUTOR

VALVE - assembly, auxiliary hydraulic, Includes: Ref. 1 - 41

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

1980066C1

SPRING

- flow control, inner

1шт.

3

1957861C1

WASHER

- dashpot

1шт.

4

1957862C1

PISTON

- check

1шт.

5

1957859C1

SNAP RING

RING - snap

1шт.

6

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER - piston

1шт.

7

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

- piston

1шт.

8

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 9 Hex Soc, 3/8"-24 ORB

1шт.

9

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

NSS

NOT SOLD SEPARAT

SPOOL - order valve assembly, Includes. Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - main

1шт.

11

1543364C1

STUD

- detent

1шт.

12

G108913

SPRING CUP

SEAT - spring, outer

1шт.

13

G108914

SPRING CUP

SEAT - spring, inner

1шт.

14

G108915

SPRING

- centering

1шт.

15

G108630

HOLDER

RETAINER - O-ring

1шт.

16

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

- spool

1шт.

17

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

1542563C1

KIT

VALVE ASSEMBLY - check, assembly, lock, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - check (Order 1542563C1)

1шт.

20

1994581C1

SPRING,6.1mm OD x 31.1mm L

- load check

1шт.

21

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

22

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG - poppet

1шт.

23

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

1346310C2

SLEEVE VALVE

SLEEVE - assembly, flow control, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

29

1346312C2

PLUG

- sleeve

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, 0.562", Int, #56

1шт.

1343735C2

VALVE

KIT - adjustment, flow control

1шт.

1980302C2

ROD

ASSEMBLY - adjusting, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

ROD - adjusting

1шт.

33

38-1811

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

1шт.

34

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- oil

1шт.

35

1980226C1

PLUG

- adjusting

1шт.

36

1980227C1

NUT

NUT - compression

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

- bearing, thin

1шт.

38

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

- bearing, thick

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 ID x 9/16 inch wide

1шт.

41

F13537

THRUST BEARING

BEARING - thrust Continued on next figure

1шт.
