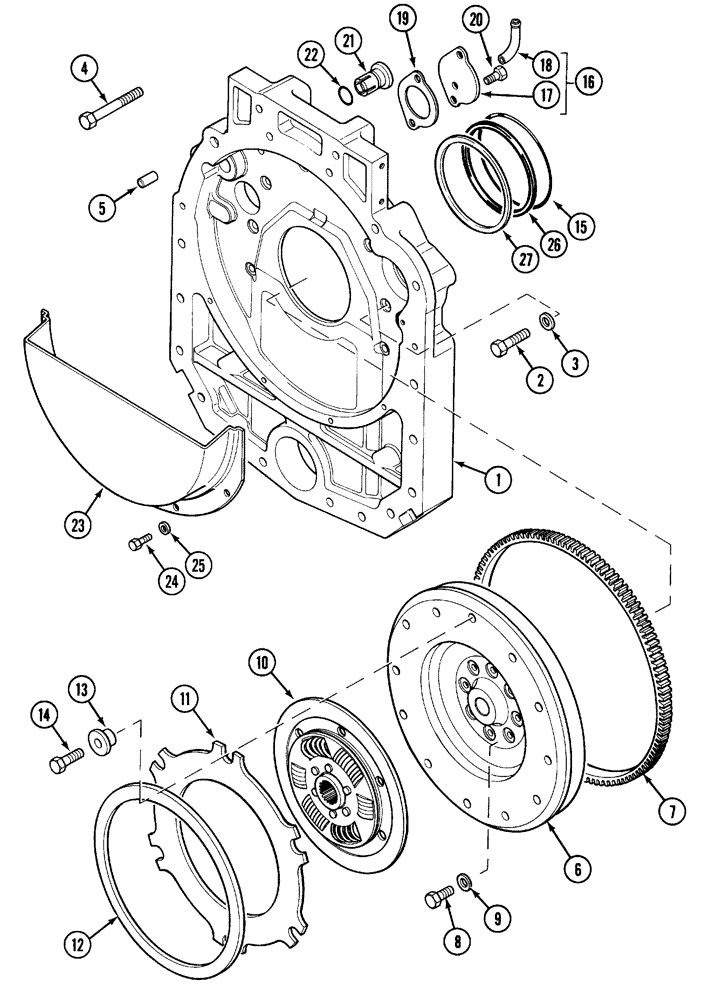

Запчасти Case IH 5120 (2-12) - FLYWHEEL, HOUSING AND TORQUE LIMITER (02) - ENGINE

1

139074A1

HOUSING

flywheel

1шт.

2

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 45 mm

8шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

5

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

6

J923271

FLYWHEEL WITH GEAR

FLYWHEEL ASSY.

1шт.

7

J901774

GEAR,Flywheel

GEAR ring

1шт.

8

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

9

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special

8шт.

10

A190182

TORQUE LIMITER,277mm OD

CLUTCH torque limiter, tractors with powershift

1шт.

10

A190182R

REMAN-CLUTCH ASSY

5120, 5220, All w/Powershift.

1шт.

10

A190182C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

10

A190183

TORQUE LIMITER,277mm OD

CLUTCH torque limiter, tractors with synchro shift

1шт.

11

A159102

PLATE, THRUST

PLATE pressure

1шт.

12

A159103

BELLEVILLE SPRING

SPRING belleville

1шт.

13

A178891

SPACER,12mm ID x 35mm OD x 21mm L

RETAINER torque limiter spring

12шт.

14

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

15

238-7362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 7, 75 Duro

3/16 x 6-1/4 inch, class 7

1шт.

16

A188677

COVER

ASSY. flywheel housing

1шт.

17

NSS

NOT SOLD SEPARAT

COVER, Order: A188677

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE, Order: A188677

1шт.

19

1341103C1

GASKET

flywheel housing cover

1шт.

20

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

21

J910248

PLUG

flywheel housing

1шт.

22

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

23

A186986

BAFFLE

oil, flywheel

1шт.

24

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

25

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened

4шт.

26

1997130C1

RING,159mm ID x 167mm OD x 4mm Thk

SPACER flywheel, Start Serial: JJF1038600

1шт.

27

189051A1

SEALING RING

RING backing, Serial Range: -JJF1038599

1шт.
