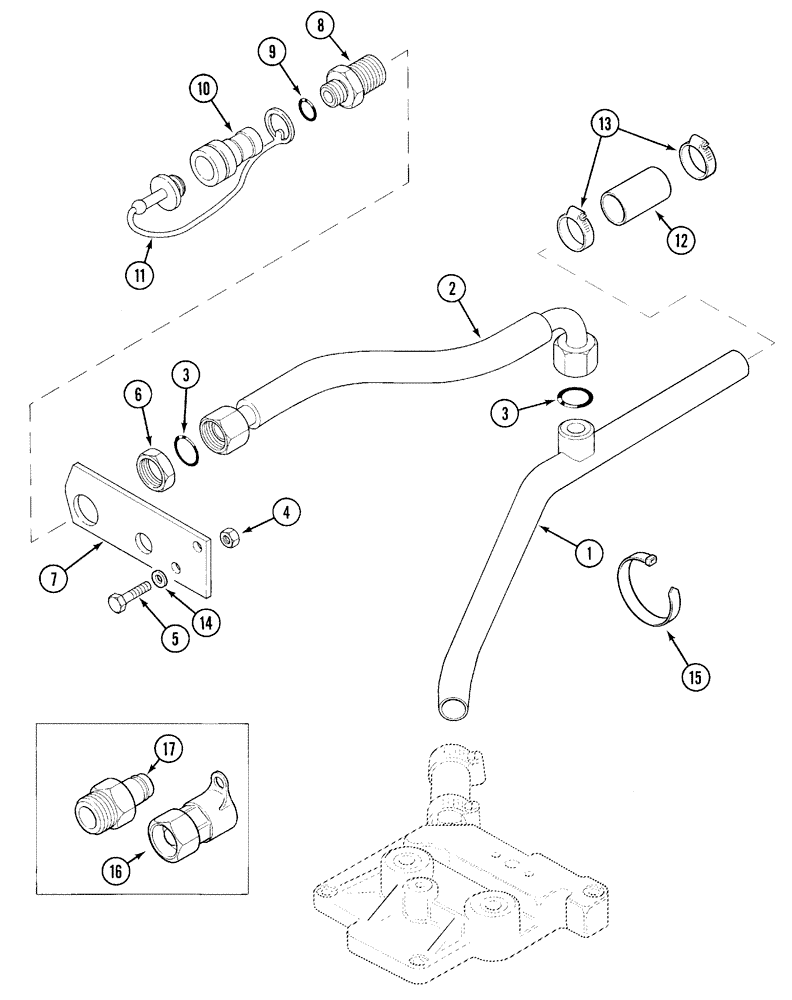

Запчасти Case IH 5120 (8-44) - HYDRAULIC, MOTOR RETURN COUPLER (08) - HYDRAULICS

1

1533024C1

TUBE

PIPE - auxiliary valve return

1шт.

2

1533025C1

HOSE

- motor return

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

825-1410

NUT,M10, Cl 8

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

218-1249

BHD LOCK NUT,1-3/16" - 12

NUT - hex, lock, bulkhead, 1-3/16-12 inch NF

1шт.

7

1533026C1

SUPPORT

BRACKET - coupler

1шт.

8

1531931C1

CONNECTOR, ELEC

CONNECTOR - coupler

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

1272400C1

COUPLING

COUPLER - self sealing, female

1шт.

11

T104539

DUST CAP

CAP - dust

1шт.

12

1531600C1

HOSE

- connecting

2шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

16

82009C1

PUSH-PULL COUPLING

ADAPTER -, Serial Range: screw-push/pull

1шт.

17

82010C1

PUSH-PULL COUPLING

ADAPTER -, Serial Range: push/pull-screw

1шт.
